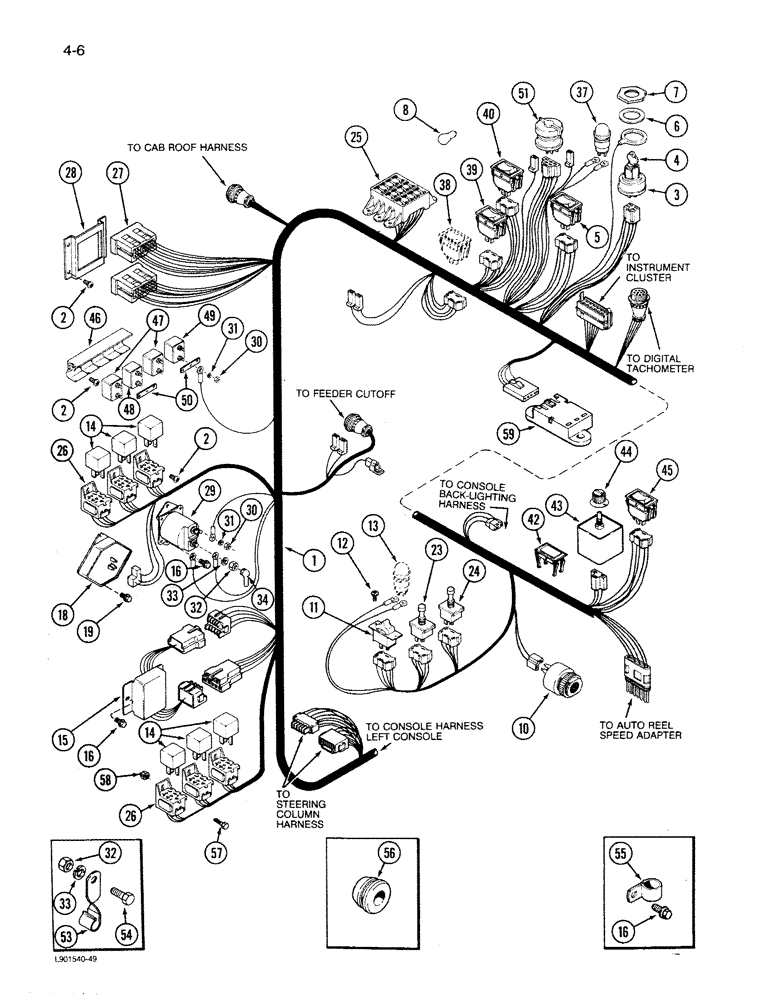

Запчасти Case IH 1620 (4-06) - CONSOLE HARNESS, IN RIGHT CONSOLE (06) - ELECTRICAL

1

1983540C1

HARNESS

ASSEMBLY - console

1шт.

2

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head tapping, No. 10 x 1/2 inch

10шт.

3

1252457C1

SWITCH

ASSEMBLY - key starting

1шт.

4

131313C1

KEY, IGNITION

KEY - starting switch

1шт.

5

245219C1

SWITCH

ASSEMBLY - rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, 19/32 x 1 x 1/8 inch

1шт.

7

365502R1

NUT

- mounting

1шт.

8

A14553

BULB

LAMP - bulb, No. 57, console back lighting

9шт.

10

245854C1

BUZZER

- alarm

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

2шт.

13

REF

INSTRUCTION

SWITCH ASSEMBLY - feeder reverser (See Figure 4-26)

1шт.

14

146461C1

RELAY

- electrical

6шт.

15

187609C2

RECTIFIER

ASSEMBLY - diode

1шт.

16

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 x 1/2 inch

6шт.

18

245835C1

SUPPRESSOR

- central load dump

1шт.

19

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head tapping, No. 10 x 1/2 inch

2шт.

23

245633C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder clutch (Without rock trap)

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder reverser (With rock trap)

1шт.

24

245632C1

SWITCH

ASSEMBLY - separator clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK - fuse

1шт.

26

NSS

NOT SOLD SEPARAT

SOCKET - relay(order 1983540C1)

6шт.

27

NSS

NOT SOLD SEPARAT

MODULE - feedback (Order 1983540C1)

2шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting (Order 1983540C1)

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cab1e

1шт.

37

453453C1

SWITCH

ASSEMBLY - ether start push button

1шт.

38

245012C1

SWITCH

ASSEMBLY - 4 wheel drive

1шт.

39

245012C1

SWITCH

ASSEMBLY - variable propulsion

1шт.

40

245219C1

SWITCH

ASSEMBLY - fan speed

1шт.

42

245334C1

PLUG

- panel switch cover

1шт.

43

245653C2

SWITCH

ASSEMBLY - reel speed manual

1шт.

44

1301036C1

BUTTON

KNOB - reel speed control

1шт.

45

245509C1

SWITCH

ASSEMBLY - reel, fore and aft

1шт.

46

245871C1

BRACKET

- system breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklight system, 30 ampere

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - rotor system, and fuel shut off, 15 ampere

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab system, 20 ampere

1шт.

50

245862C1

BAR

- breaker bus

2шт.

51

107200C2

LIGHT SWITCH

SWITCH ASSEMBLY - headlight

1шт.

53

363660R1

CLIP

- console harness, twisted

1шт.

54

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

55

299277C91

CLIP

- console harness

2шт.

56

92065C1

GROMMET

- rubber, console harness

1шт.

57

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

1шт.

58

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

59

121770C2

TRANSMITTER

MODULE - coolant

1шт.
