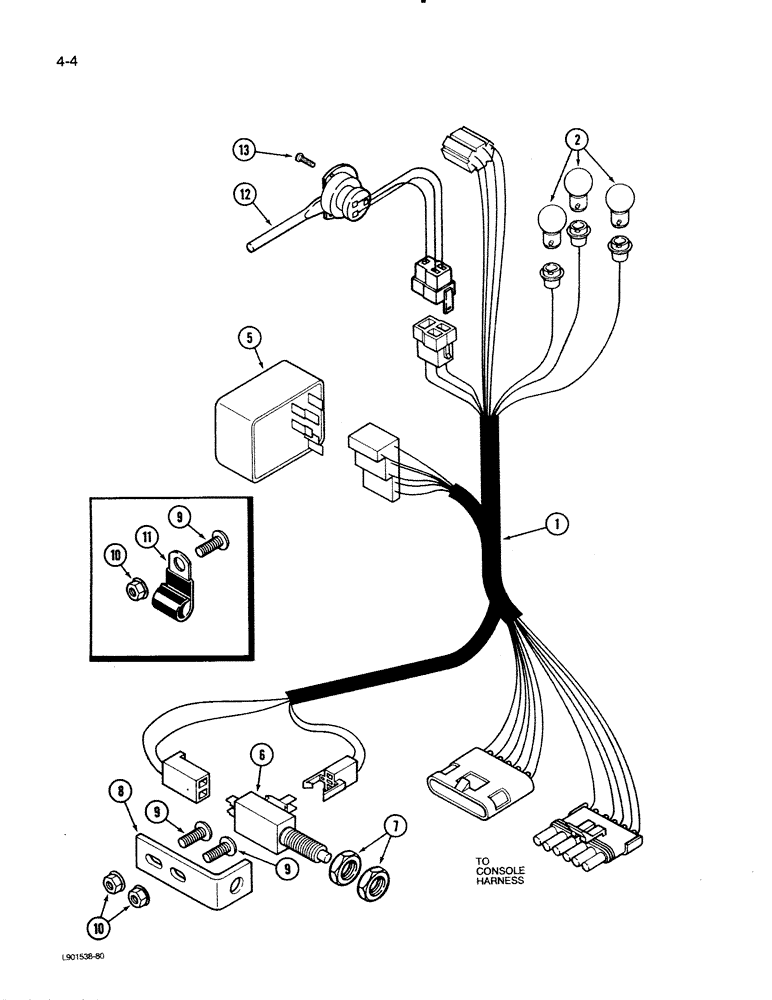

Запчасти Case IH 1620 (4-04) - STEERING COLUMN HARNESS (06) - ELECTRICAL

1

91822C1

HARNESS

- steering column

1шт.

2

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

3шт.

5

131066C91

SWITCH

- turn signal

1шт.

6

131107C1

SWITCH

- neutral start

1шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam, 1/2 inch NF, Grade 5

2шт.

8

1327674C1

BRACKET

ANGLE - switch mounting

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

4шт.

11

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - steering column harness

6шт.

12

245635C1

SWITCH

- unloader, tube position control

1шт.

13

26281R1

SCREW

- pan head machine, No. 8 x 1/2 inch

3шт.
