Запчасти Case IH 1620 (4-02) - ENGINE HARNESS (06) - ELECTRICAL

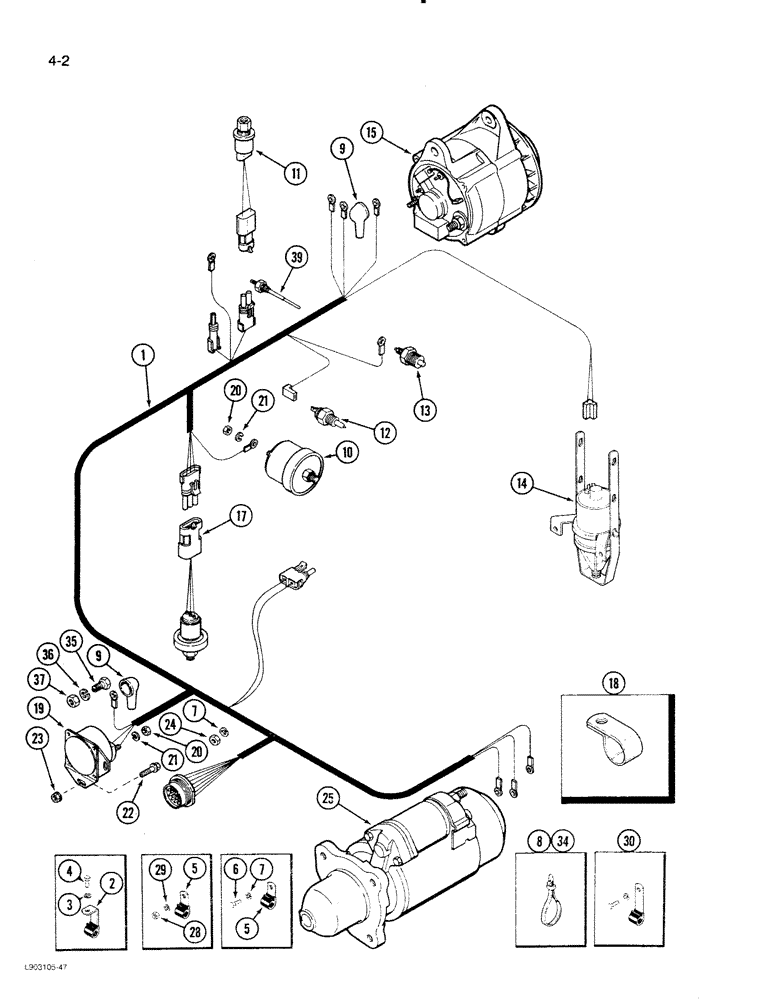

Схема запчастей Case IH 1620 - (4-02) - ENGINE HARNESS (06) - ELECTRICAL
9
25
21
7
17
18
9
7
8
13
39
21
34
35
12
3
4
29
30
22
19
5
24
28
23
20
37
11
36
20
14
2
15
10
1
6
5

Артикул

Название

Примечание

Количество

1

1983383C1

HARNESS

- engine

1шт.

2

370383R1

CLIP

- harness, long

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

5

384559R1

CLIP

- engine harness

2шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

8

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

9

399470R1

BOOT

- cable

2шт.

10

130707C4

TRANSMITTER

SENDER - oil pressure

1шт.

11

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

12

130861C1

SWITCH

- coolant temperature light

1шт.

13

121756C2

SENSOR

SENDER - coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID - ether injection (See figure 2-18)

1шт.

15

REF

INSTRUCTION

ALTERNATOR - (See Figure 4-58)

1шт.

17

1964960C1

PRESSURE SWITCH

SWITCH - pressure header lift

1шт.

18

A185958

CLAMP,7/8", 1/2" Bolt

- engine harness

2шт.

19

A39079

SOLENOID

- ignition

1шт.

20

225-14210

NUT,#10-32

3шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

22

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flanged, 1/4 NC x 3/4 inch

2шт.

23

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged, 1/4 inch NC

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

REF

INSTRUCTION

SWITCH - starter solenoid (See Figure 4-62)

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - engine harness center

4шт.

34

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

4шт.

35

313-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

325-104

NUT,1/4"-20, G5

- hex, 1/4 inch NC

1шт.

39

A145513

SENSOR

- level, coolant

1шт.

Выбрано товаров: 32
