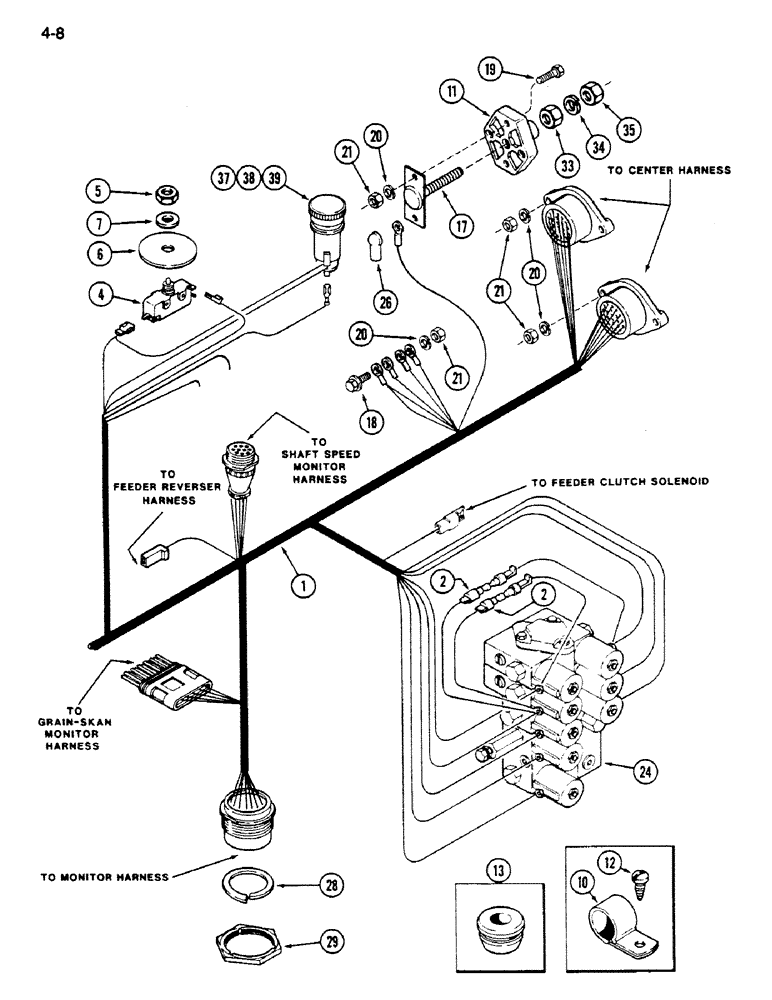

Запчасти Case IH 1620 (4-008) - CONSOLE HARNESS, IN LEFT CONSOLE (06) - ELECTRICAL

1

91726C3

HARNESS

ASSEMBLY - console, see Figure 4-006

1шт.

2

548239R2

RECTIFIER

DIODE ASSEMBLY - console harness

2шт.

4

633643R91

SWITCH

ASSEMBLY - parking brake warning light

1шт.

5

68107H

LOCK NUT

- light switch

1шт.

6

166817C1

WASHER

- light switch

1шт.

7

25709R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - console harness, front

1шт.

11

468647C1

BLOCK ASSY.

BLOCK - junction

1шт.

12

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - pan head tapping, 1/4 x 1/2 inch

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness

1шт.

17

1964561C1

BAR

- junction block buss

1шт.

18

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flanged hex lock, 1/4 NC x 3/4 inch

2шт.

19

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-062

1шт.

28

490691C1

LOCK WASHER,#18 Shell

- lock, harness connector

1шт.

29

490692C1

LOCK NUT,#18 Shell

- hex, harness connector

1шт.

33

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

37

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigarette, Includes: Ref. 38 and 39

1шт.

38

378781R1

LIGHTER, CIGARETTE

LIGHTER - pop-up unit

1шт.

39

NSS

NOT SOLD SEPARAT

SOCKET

1шт.
