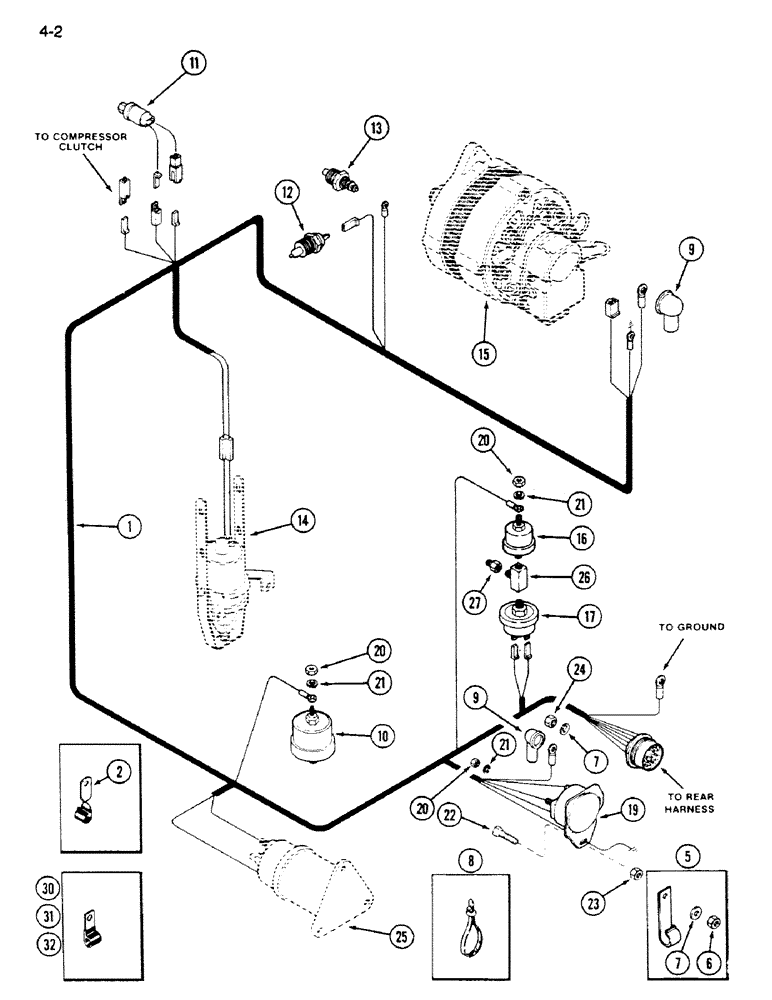

Запчасти Case IH 1620 (4-002) - ENGINE HARNESS (06) - ELECTRICAL

1

245233C1

HARNESS

- engine

1шт.

2

370383R1

CLIP

- engine block, rear

1шт.

5

384559R1

CLIP

- engine harness

2шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

8

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

9

399470R1

BOOT

- cable

2шт.

10

1-2227T2

SENDER UNIT

SENDER - oil pressure

1шт.

11

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

12

107216C1

SWITCH

- coolant temperature

1шт.

13

121756C2

SENSOR

SENDER - coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID - ether injection, see Figure 2-016

1шт.

15

REF

INSTRUCTION

ALTERNATOR - engine, see Figure 4-058

1шт.

16

392249R92

SWITCH

- low engine oil pressure light

1шт.

17

131424C1

SWITCH

- pressure header lift

1шт.

19

121613C1

IGNITION SWITCH

RELAY - starter solenoid

1шт.

20

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

22

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

23

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged, 1/4 inch NC

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

REF

INSTRUCTION

SWITCH - starter solenoid, see Figure 4-062

1шт.

26

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- pipe, 1/8 inch PT

1шт.

27

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

- pipe, 1/8 inch PT

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - engine harness center

4шт.

31

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness, engine

1шт.

32

384557R1

CLIP

- harness, engine

1шт.
