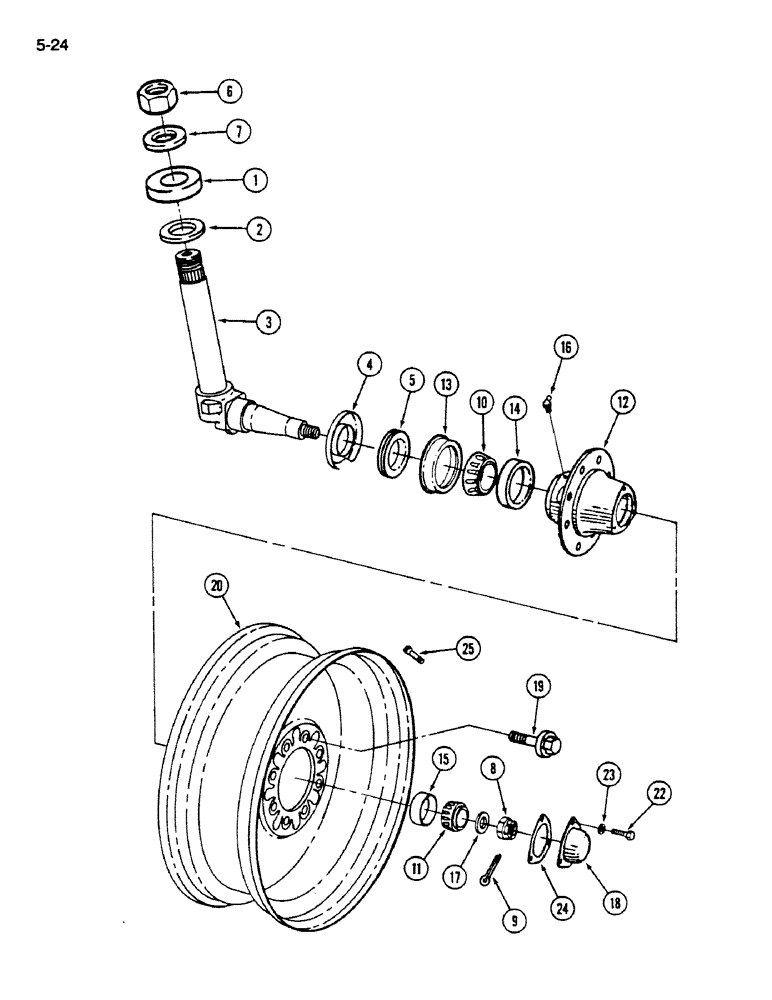

Запчасти Case IH 1620 (5-024) - STEERING KNUCKLE, HUB AND WHEELS, FOR 10.00-16 AND 9.00-18 WHEELS (04) - STEERING

1

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - knuckle thrust

2шт.

2

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Knuckle pivot, Felt

2шт.

3

71785C92

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, Includes: Ref. 4 and 5

2шт.

4

48701D

SHIELD

- dust

1шт.

5

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- hub

1шт.

6

427547

JAM NUT,Jam, 1 3/8"-12, G5

- hex, 1-3/8 inch NF

2шт.

7

22827R1

WASHER

- flat, 1-13/32 x 2-3/4 x 3/64 inch

2шт.

8

1259683C1

NUT

- hex slotted, 7/8 inch NF, Grade 5

2шт.

9

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.

10

G15215

ROLLER BEARING

CONE - wheel bearing, inner, 1-25/32 inch ID

2шт.

11

G57452

ROLLER BEARING

CONE - wheel bearing, outer, 1-3/8 inch ID

2шт.

12

1323559C1

HUB

ASSEMBLY - wheel, Includes: Ref. 13 - 16

2шт.

13

48703D

RETAINER

- hub seal

1шт.

14

619387R1

BEARING CUP

CUP - wheel bearing, inner, 3-1/16 inch OD

1шт.

15

G57451

BEARING, CUP

CUP - wheel bearing, outer, 2-9/16 inch OD

1шт.

16

19700R91

FITTING

- grease, 3/16 inch x 45 degree

2шт.

17

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- hardened

2шт.

18

369859R1

CAP

- wheel hub

2шт.

19

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex head flange, Grade 8

16шт.

20

188009C1

RIM

WHEEL - for 10.00-16 tire

2шт.

20

1312960C1

RIM

WHEEL - for 12.5/80-18 tire

2шт.

22

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 5/8 inch

6шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

24

369860R1

GASKET,0.79mm Thk

- cap

2шт.

25

536705R91

VALVE

- inflation

2шт.
