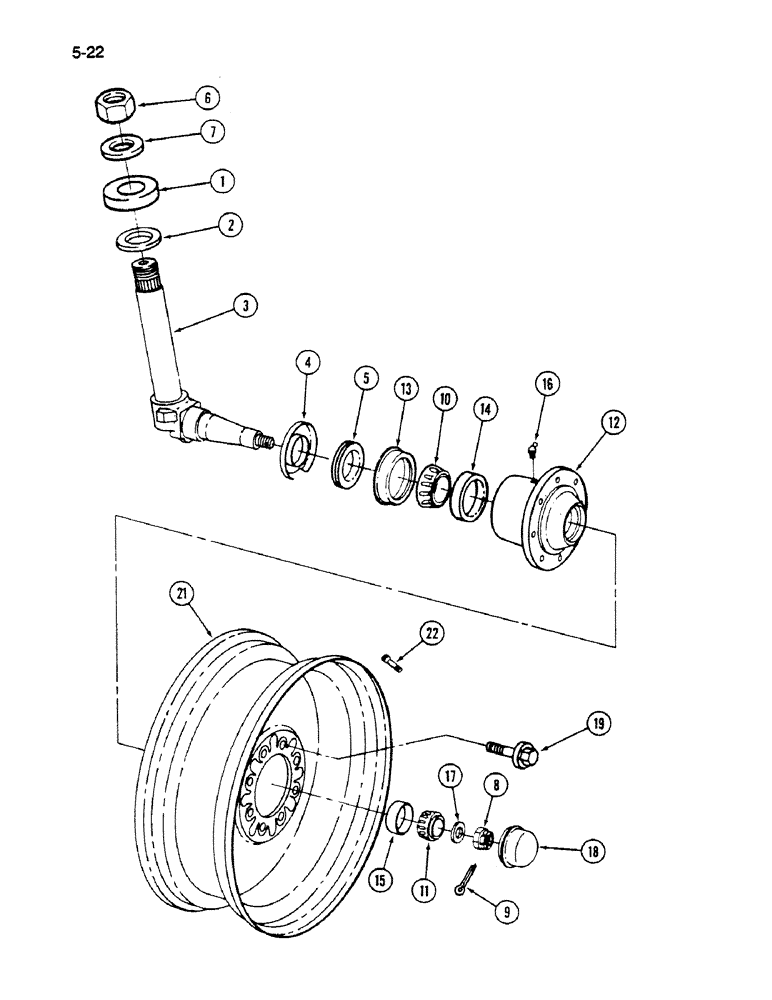

Запчасти Case IH 1620 (5-022) - STEERING KNUCKLE, HUB AND WHEELS, FOR 11.00-16, 12.4-16 AND 11.2-24 WHEELS (04) - STEERING

1

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - knuckle thrust

2шт.

2

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Knuckle pivot, Felt

2шт.

3

1315374C91

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, Includes: Ref. 4 and 5

2шт.

4

1259522C1

SHIELD

- dust

1шт.

5

491641C1

SEAL

- hub

1шт.

6

427547

JAM NUT,Jam, 1 3/8"-12, G5

- hex, 1-3/8 inch NF

2шт.

7

22827R1

WASHER

- flat, 1-13/32 x 2-3/4 x 3/64 inch

2шт.

8

1259683C1

NUT

- hex slotted, M30 x 1.5-6H

2шт.

9

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

10

ST753B

BEARING ASSY,66.67mm ID x 22mm W

CONE - wheel bearing, inner, 2-5/8 inch ID

2шт.

11

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE - wheel bearing, outer

2шт.

12

1259528C1

HUB

ASSEMBLY - wheel, Includes: Ref. 13 - 16

2шт.

13

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER - hub seal

1шт.

14

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - wheel bearing, inner 4-5/16 inch OD

1шт.

15

ST987

BEARING CUP

CUP - wheel bearing, outer

1шт.

16

19700R91

FITTING

- grease, 3/16 inch x 45 degree

2шт.

17

30181R1

WASHER,M30 x 56.5 x 5, HT

- flat, 33 x 56 x 5 mm

2шт.

18

189425C1

HUB CAP

CAP - wheel hub

2шт.

19

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex head flange, wheel, Grade 8

16шт.

21

672128R91

WHEEL

- for 11.00 x 16 and 12.4 x 16 tire

2шт.

21

188759C1

WHEEL

- for 11.2 x 24 tire

2шт.

22

536705R91

VALVE

- inflation, 5/8 inch diameter

2шт.
