Запчасти Case IH 1620 (5-018) - STEERING AXLE, ADJUSTABLE (04) - STEERING

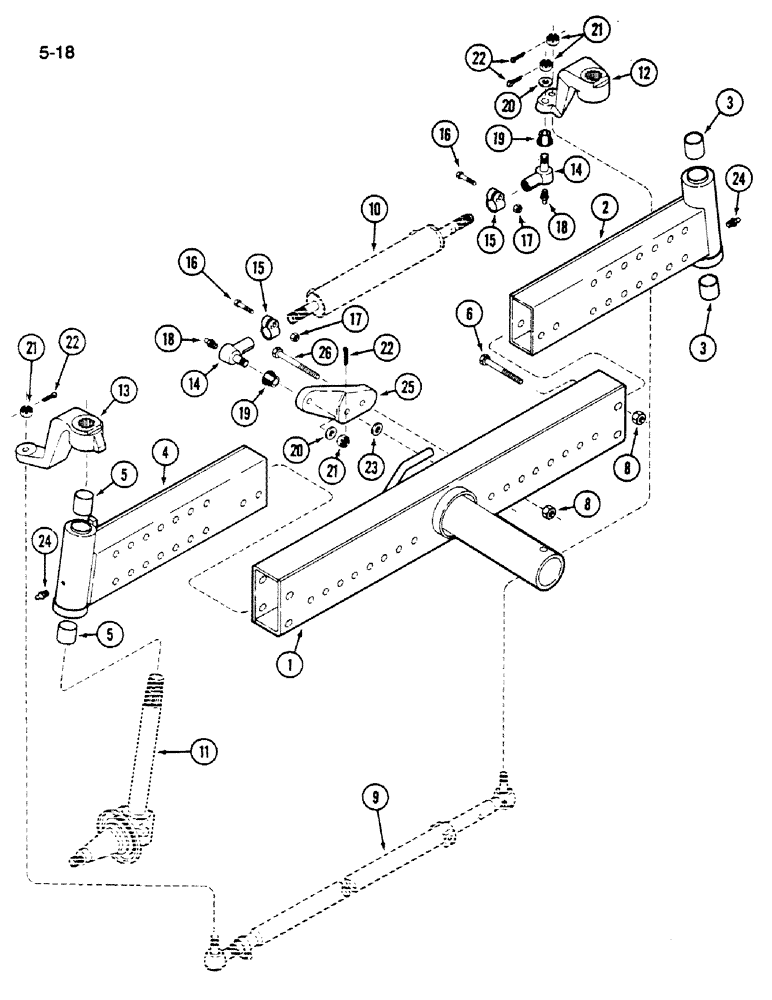

Схема запчастей Case IH 1620 - (5-018) - STEERING AXLE, ADJUSTABLE (04) - STEERING
21
19
9
2
18
11
12
22
24
16
15
17
23
15
20
8
3
22
13
4
24
5
16
14
5
21
14
18
3
6
10
25
22
8
26
20
19
1
21
17

Артикул

Название

Примечание

Количество

1

182800C2

AXLE

- adjustable, 56 to 68 inch

1шт.

1

182799C2

AXLE

- adjustable, 67 to 91 inch

1шт.

2

177763C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, left (For 67 to 91 inch axles), Includes: Ref. 3

1шт.

2

178488C91

EXTENSION

ASSEMBLY - axle, left (For 56 to 68 inch axles), Includes: Ref. 3

1шт.

3

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

2шт.

4

177764C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, right (For 67 to 91 inch axles), Includes: Ref. 5

1шт.

4

178489C91

EXTENSION

ASSEMBLY - axle, right (For 56 to 68 inch axles), Includes: Ref. 5

1шт.

5

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindel

2шт.

6

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

8

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch 3/4 inch NC, Grade 8

1шт.

9

REF

INSTRUCTION

ROD ASSEMBLY - tie, see Figure 5-020

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, see Figure 5-010

1шт.

11

REF

INSTRUCTION

KNUCKLE - steering, see Figure 5-022

1шт.

12

193911C2

LEVER

ARM - steering, left

1шт.

13

193912C2

LEVER

ARM - steering, right

1шт.

14

186796C1

BALL JOINT

SOCKET ASSEMBLY - steering cylinder end, Includes: Ref. 15 - 18

2шт.

15

384371R1

CLAMP

- socket, Includes: Ref. 16 and 17

1шт.

16

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

17

131-667

NUT,7/16"-14, GB

NUT - hex prevailing torque, 7/16 NC

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

19

382562R1

SEAL

- socket end

2шт.

20

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64

2шт.

21

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

4шт.

22

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

23

464623R1

WASHER

SPACER - (56 to 68 inch axle only)

1шт.

24

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive type

2шт.

25

193917C1

ANCHOR

- steering cylinder

1шт.

26

26523R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 8

- hex, 3/4 NC x 5-1/4 inch

2шт.

Выбрано товаров: 28
