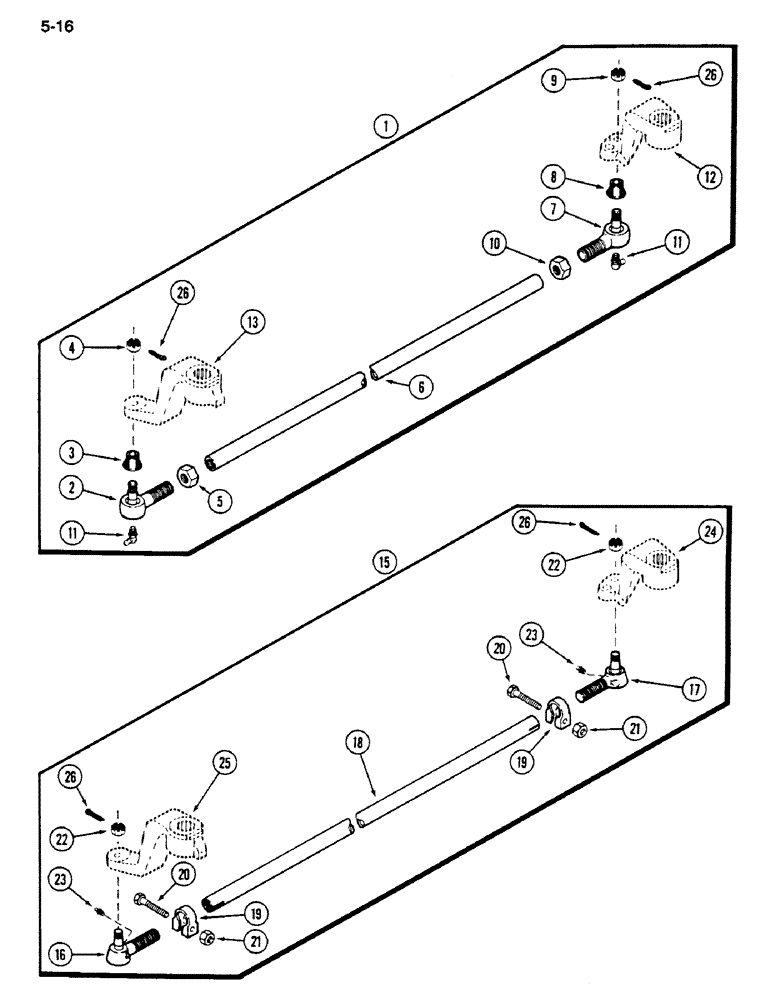

Запчасти Case IH 1620 (5-016) - STEERING TIE RODS, NONADJUSTABLE AXLE (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
ROD ASSEMBLY - tie (Order 17772C91), Includes: Ref. 2 - 10
1шт.
O and S manufacture. Entire assembly is interchangeable with 177772C92. Components of assemblies are not interchangeable. Order parts carefully.
1шт.
2
379551R92
END ASSY.
END ASSEMBLY - tie rod, right, Includes: Ref. 3 and 4
1шт.
3
382562R1
SEAL
- tie rod end
1шт.
4
129-610
SLOTTED NUT,5/8"-18, G5
1шт.
5
374062R1
JAM NUT
NUT - hex lock, tie rod (Right hand threads)
1шт.
6
NSS
NOT SOLD SEPARAT
TUBE - rod (Order 177774C91)
1шт.
7
180201C91
END
ASSEMBLY - tie rod, left, Includes: Ref. 8 and 9
1шт.
8
382562R1
SEAL
- tie rod end
1шт.
9
129-610
SLOTTED NUT,5/8"-18, G5
1шт.
10
374061R1
JAM NUT
- hex lock, tie rod (Left hand threads)
1шт.
11
16964R91
FITTING
- grease, 1/4 NF 90 degree
2шт.
12
REF
INSTRUCTION
ARM - steering, left, see Figure 5-014
1шт.
13
REF
INSTRUCTION
ARM - steering, right, see Figure 5-014
1шт.
15
177772C91
ROD ASSY.
ROD ASSEMBLY - tie, Includes: Ref. 16 - 21
1шт.
Columbus manufacture. Entire assembly is interchangeable with 177774C91. Components of assemblies are not interchangeable. Order parts carefully.
1шт.
16
180203C1
END ASSY.
END ASSEMBLY - tie rod, right
1шт.
17
180202C1
END ASSY.
END ASSEMBLY - tie rod, left
1шт.
18
NSS
NOT SOLD SEPARAT
TUBE - rod (Order 177772C91)
1шт.
19
1300176C1
CLAMP,28.5mm ID
ASSEMBLY - tie rod, Includes: Ref. 20 and 21
2шт.
20
80087972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
- hex, 1/2 NC x 2-1/2 inch
1шт.
21
131-1153
LOCK NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
1шт.
22
NLS
NO LONGER SERVICED
- hex slotted, 5/8 inch NF
2шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8 PT extra short
2шт.
24
REF
INSTRUCTION
ARM - steering, left, see Figure 5-014
1шт.
25
REF
INSTRUCTION
ARM - steering, right, see Figure 5-014
1шт.
26
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
4шт.
