Запчасти Case IH 1620 (5-014) - STEERING AXLE, NONADJUSTABLE (04) - STEERING

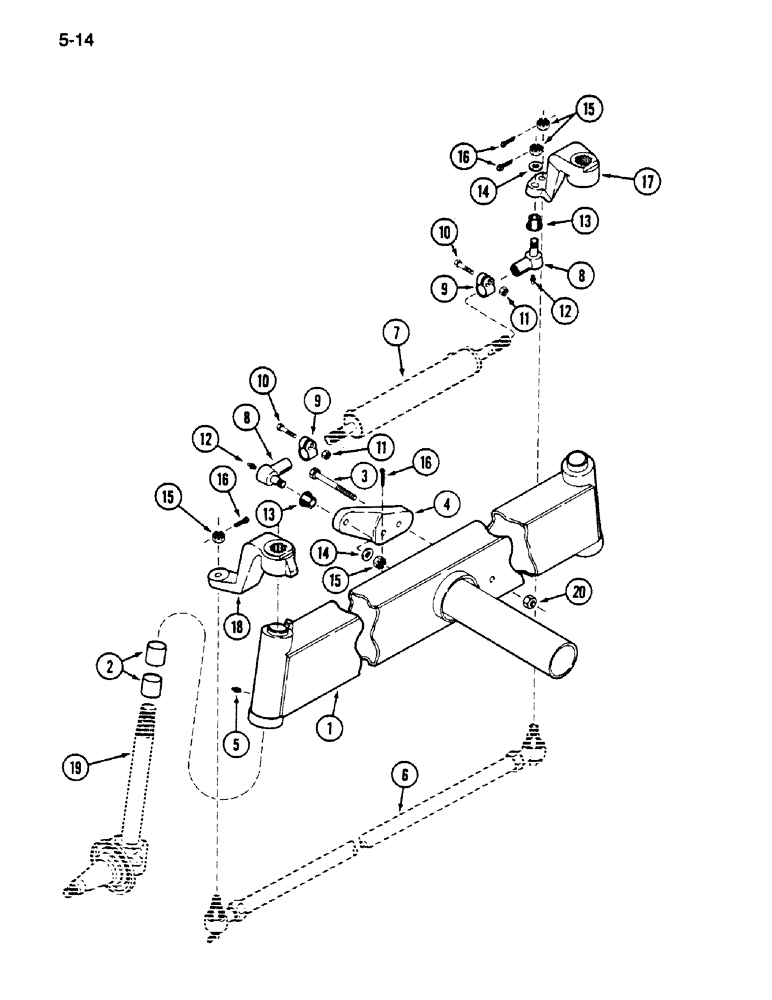

Схема запчастей Case IH 1620 - (5-014) - STEERING AXLE, NONADJUSTABLE (04) - STEERING
15
6
10
16
12
7
3
17
12
9
14
11
8
9
2
8
14
15
1
5
16
16
20
15
4
11
13
19
10
13
18

Артикул

Название

Примечание

Количество

1

182798C2

AXLE

ASSEMBLY - steering, Includes: Ref. 2

1шт.

2

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

4шт.

3

26523R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 8

- hex, 3/4 NC x 5-1/4 inch

2шт.

4

193917C1

ANCHOR

- steering cylinder

1шт.

5

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive type

2шт.

6

REF

INSTRUCTION

ROD ASSEMBLY - tie, see Figure 5-016

1шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, see Figure 5-010

1шт.

8

186796C1

BALL JOINT

SOCKET ASSEMBLY - steering cylinder end, Includes: Ref. 9 - 12

2шт.

9

384371R1

CLAMP

ASSEMBLY - socket, Includes: Ref. 10 and 11

1шт.

10

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

11

131-667

NUT,7/16"-14, GB

NUT - hex prevailing torque, 7/16 inch NC

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

13

382562R1

SEAL

- socket end

2шт.

14

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch

2шт.

15

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

4шт.

16

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

17

193911C2

LEVER

ARM - steering, left

1шт.

18

193912C2

LEVER

ARM - steering, right

1шт.

19

REF

INSTRUCTION

KNUCKLE - steering, see Figure 5-022

1шт.

20

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

2шт.

Выбрано товаров: 20
