Запчасти Case IH 1620 (5-012) - STEERING AXLE SUPPORT, ALL AXLES (04) - STEERING

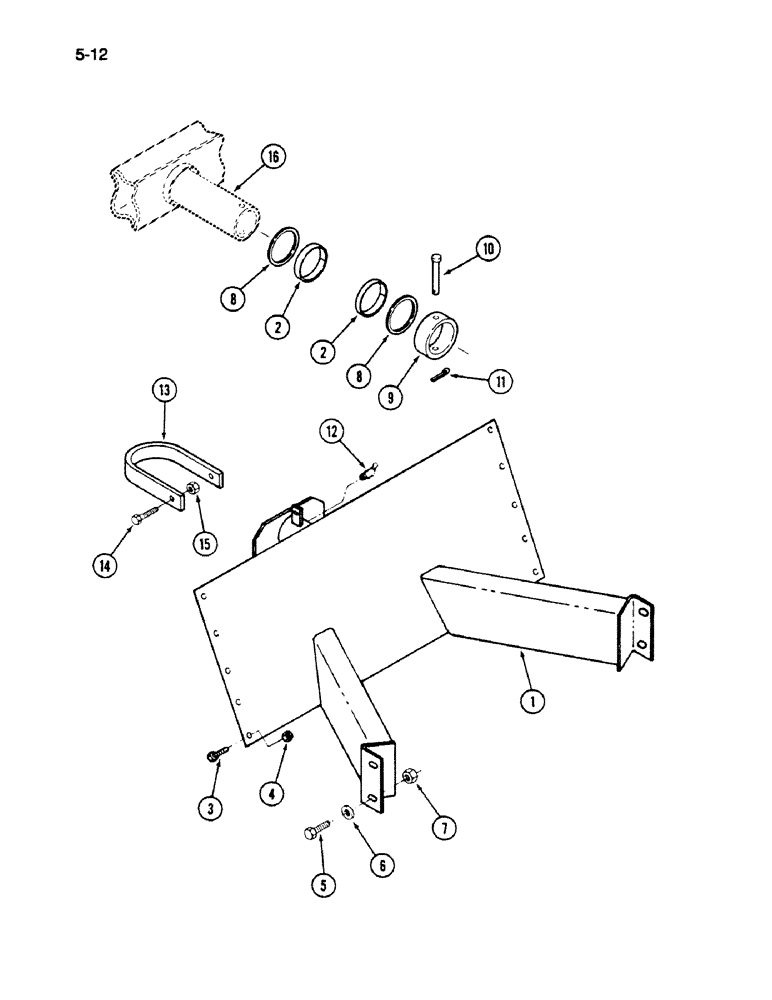

Схема запчастей Case IH 1620 - (5-012) - STEERING AXLE SUPPORT, ALL AXLES (04) - STEERING
14
11
8
16
13
6
8
2
9
1
12
4
7
2
10
5
3
15

Артикул

Название

Примечание

Количество

1

195120C92

SUPPORT

ASSEMBLY - steering axle, Includes: Ref. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

2шт.

3

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, Grade 8

10шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC, Grade 8

10шт.

5

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, Grade 8

4шт.

6

25712R1

WASHER

- flat, hardened

4шт.

7

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex flange lock, 3/4 inch NC, Grade 8

4шт.

8

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- pivot tube

2шт.

9

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

10

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN - headed, 3/4 x 5-1/2 inch

1шт.

11

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

12

19700R91

FITTING

- grease, 3/16 inch x 45 degree

1шт.

13

196084C2

CHANNEL

STRAP - tow

1шт.

14

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

15

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, 5/8 inch NC, Grade 8

2шт.

16

REF

INSTRUCTION

AXLE, see Figure 5 -018

1шт.

Выбрано товаров: 16
