Запчасти Case IH 1620 (5-008) - STEERING HAND PUMP ASSEMBLY (04) - STEERING

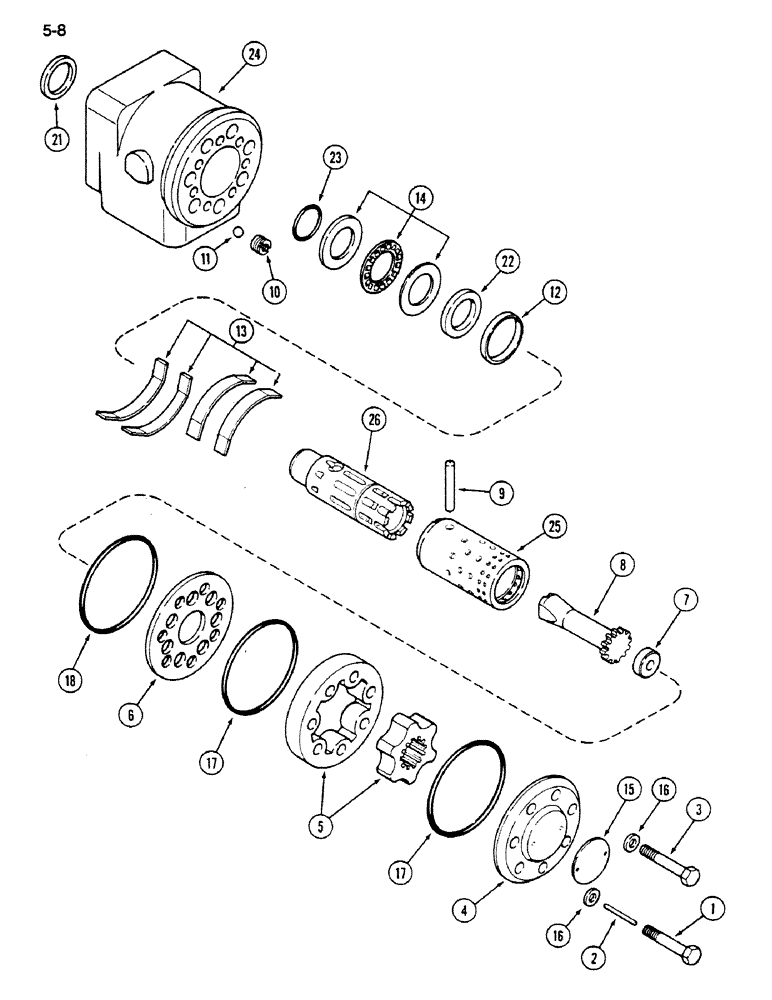

Схема запчастей Case IH 1620 - (5-008) - STEERING HAND PUMP ASSEMBLY (04) - STEERING
1
3
21
8
26
11
18
17
16
13
16
9
23
7
10
5
24
17
25
12
14
2
22
15
4
6

Артикул

Название

Примечание

Количество

1272798C92

VALVE, CONTROL

PUMP ASSEMBLY - steering hand, Includes: Ref. 1 - 26

1шт.

1

1272791C1

SCREW

BOLT - hex, special (Drilled)

1шт.

2

3112271R1

PIN, ROLL

PIN - roll, 2 x 32 mm

1шт.

3

3216710R1

SCREW

BOLT - hex, M8 x 40 mm

6шт.

4

1272805C1

COVER

- end

1шт.

5

1272804C1

GEAR

SET - orbit

1шт.

6

1272803C1

PLATE

- valve

1шт.

7

1272802C1

SPACER

- shaft

1шт.

8

1272797C1

SHAFT

- drive

1шт.

9

1272796C1

CROSS PIN

6 x 41 mm

1шт.

10

1272793C1

BUSHING

- setting

1шт.

11

1272794C1

BALL

- check, 8 mm diameter

1шт.

12

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

- seal

1шт.

13

1272809C1

PACKAGE

SPRING KIT - position

1шт.

14

1272808C1

NEEDLE BEARING

BEARING KIT - needle

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - rating (Order 1272798C91)

1шт.

1500443C91

SEAL KIT

REPAIR KIT - seal, Includes: Ref. 13 and 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - flat, cover bolt (Order 1500443C91)

7шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 76 x 2 mm (Order 1500443C91)

2шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - shaft (Order 11500443C91)

1шт.

21

NSS

NOT SOLD SEPARAT

RING - seal (Order 1500443C91)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - seal (Order 1500443C91)

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - (Order 1500443C91)

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - (Order 1272798C92)

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - shaft (Order 1272798C92)

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - shaft (Order 1272798C92)

1шт.

Выбрано товаров: 26
