Запчасти Case IH 1620 (5-006) - POWER STEERING CIRCUIT, PUMP TO CYLINDER (04) - STEERING

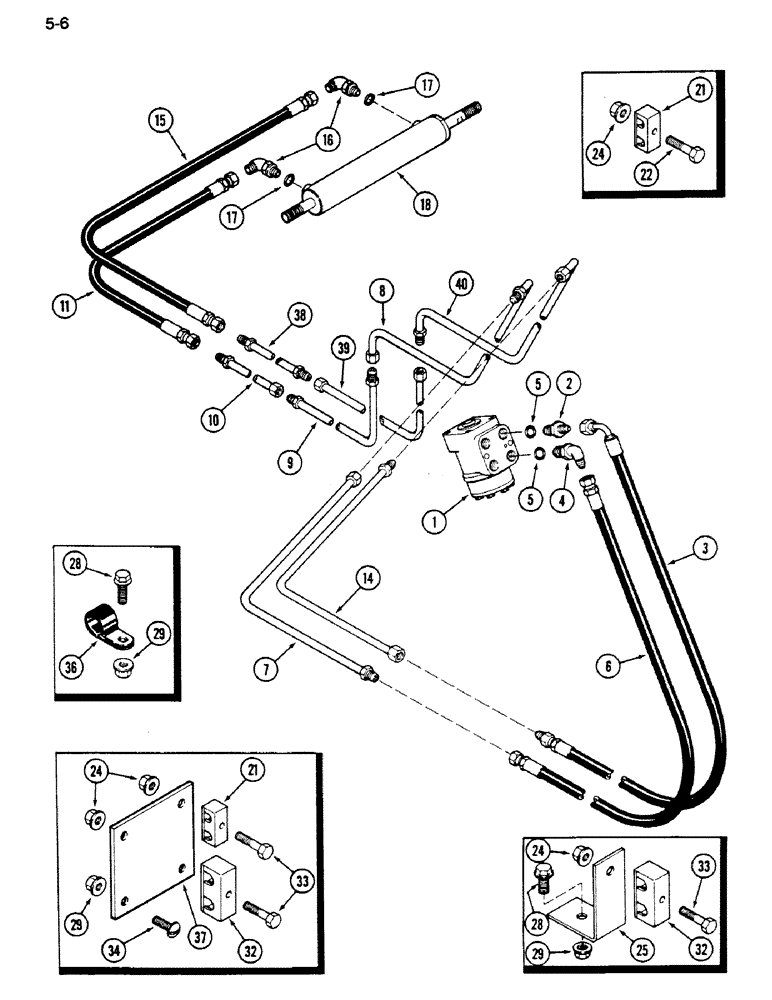

Схема запчастей Case IH 1620 - (5-006) - POWER STEERING CIRCUIT, PUMP TO CYLINDER (04) - STEERING
32
21
24
24
9
6
24
8
25
5
39
14
36
34
32
33
29
3
16
37
38
1
11
29
28
5
2
17
22
17
28
15
18
21
40
4
29
10
33
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Page 5-9)

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - short, 1/2 inch tube 3/4-16 thread x 3/8 inch tube 9/16-18 thread

1шт.

3

1317940C1

HOSE

- steering hand pump left

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread x 3/8 inch tube 9/16-18 thread

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

6

1317971C1

HOSE ASSY.

HOSE - steering hand pump, right

1шт.

7

187758C1

HYD TUBE

TUBE ASSEMBLY - steering, forward, upper inside

1шт.

8

187759C1

HYD TUBE

TUBE ASSEMBLY - steering, intermediate, forward inside

1шт.

9

187760C1

HYD TUBE

TUBE ASSEMBLY - steering, intermediate, rear inside

1шт.

10

187761C1

HYD TUBE

TUBE ASSEMBLY - steering, rear inside

1шт.

11

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

- cylinder lower, 68 inch (1727 mm)

1шт.

14

183888C1

HYD TUBE

TUBE ASSEMBLY - steering, forward, upper outside

1шт.

15

178962C1

HOSE ASSY.

HOSE - cylinder upper, 60 inch (1524 mm)

1шт.

16

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 inch tube 9/16-18 thread

2шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, see Figure 5-010

1шт.

21

183825C1

CLAMP

- steering tubes, for 3/8 inch tube

5шт.

22

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

24

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange, 1/4 inch NC

7шт.

25

183899C1

ANGLE

- steering tubes

2шт.

28

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - flanged hex head, 3/8 NC x 3/4 inch

4шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange, 3/8 inch NC

6шт.

32

1301178C1

CLAMP

- steering tubes

2шт.

33

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

3шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

2шт.

36

28123R1

CLAMP

- steering hoses

2шт.

37

1301417C1

BRACKET

BAR - steering tubes

1шт.

38

183891C1

HYD TUBE

TUBE ASSEMBLY - steering, rear outside

1шт.

39

183890C1

HYD TUBE

TUBE ASSEMBLY - steering, intermediate rear outside

1шт.

40

183889C1

HYD TUBE,0.375" OD, 1037, 506.5 mm Length

TUBE ASSEMBLY - steering, intermediate forward outside

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.
