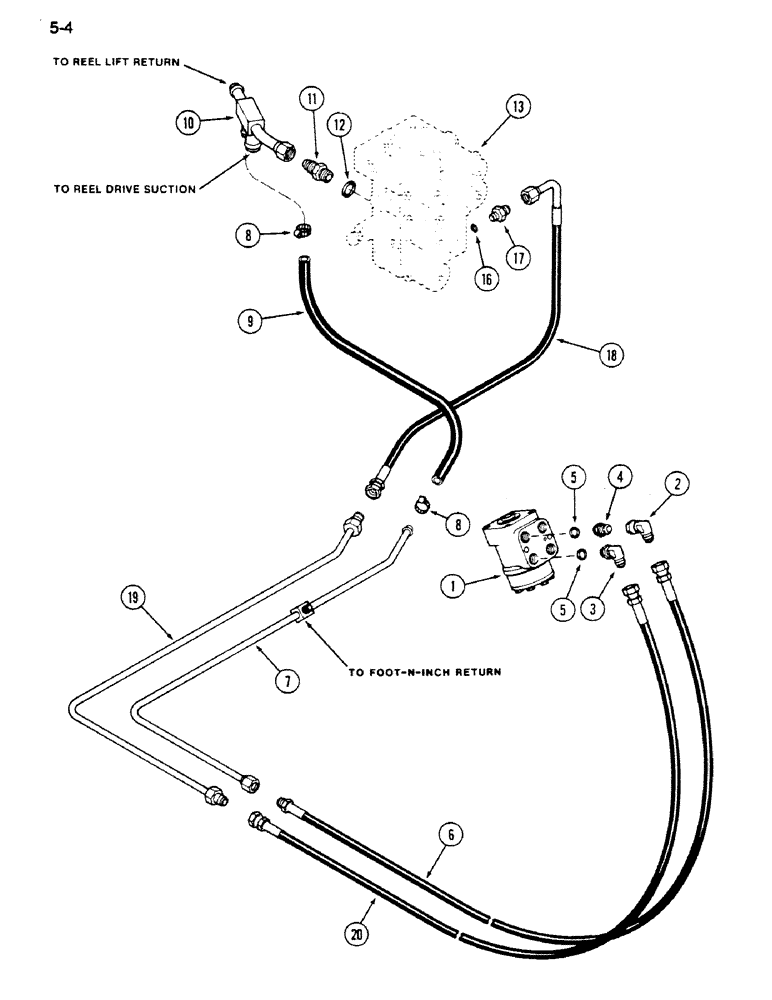

Запчасти Case IH 1620 (5-004) - POWER STEERING CIRCUIT, SUPPLY AND RETURN (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Page 5-9)

1шт.

2

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch tube 3/4-16 thread

1шт.

3

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch tube 3/4-16 thread

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

6

1317939C1

HOSE

- steering hand pump return

1шт.

7

1310938C1

HYD TUBE

TUBE ASSEMBLY - steering return

1шт.

8

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, No. 8, Type F

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - steering return, 26 inch (Order from bulk roll, S118466)

1шт.

10

1310757C1

TUBE

ASSEMBLY - header lift and steering return

1шт.

11

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 3/4 inch tube 1-1/16-12 thread x 5/8 inch tube 7/8-14 thread

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube, Class 6

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Page 8-19)

1шт.

17

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 1/2 inch tube 3/4-16 thread x 3/8 inch tube 9/16-18 thread

1шт.

18

1310755C1

HOSE ASSY.

HOSE - steering pressure

1шт.

19

1310939C1

HYD TUBE

TUBE ASSEMBLY - steering pressure

1шт.

20

1327580C1

HOSE

- steering hand pump pressure

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
