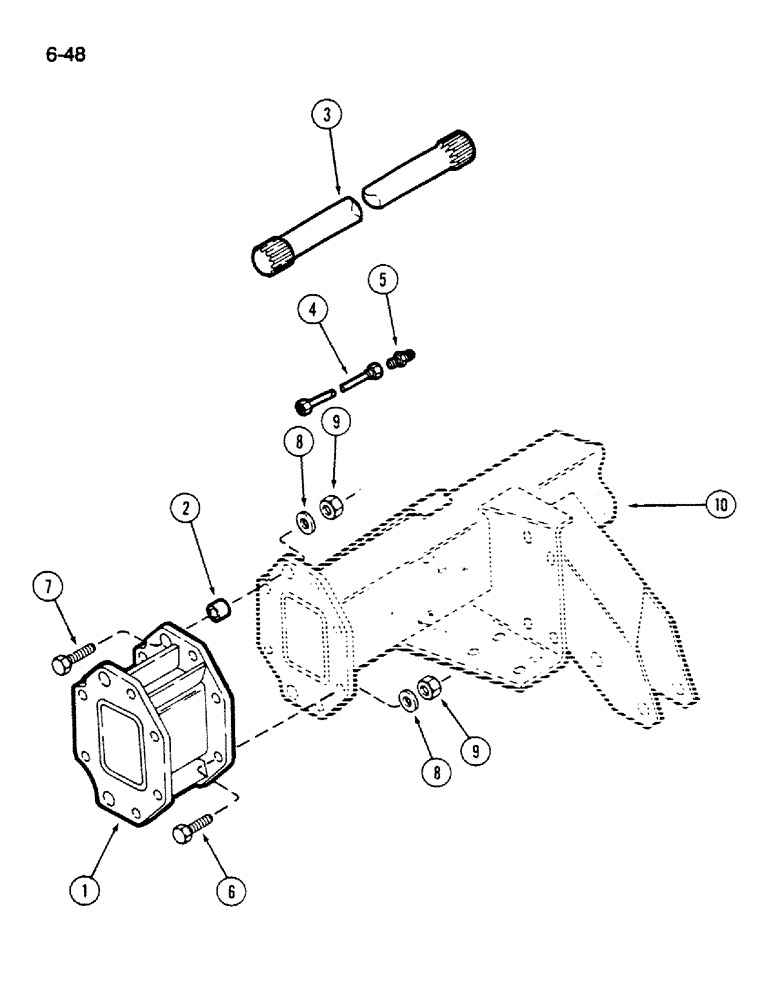

Запчасти Case IH 1620 (6-048) - AXLE EXTENSION (03) - POWER TRAIN

1

1315369C3

EXTENSION

- axle, 9-1/2 inch

2шт.

2

1315371C1

BUSHING

DOWEL - end plate

4шт.

3

184227C1

SHAFT

- axle, left

1шт.

3

184228C1

SHAFT

- axle, right

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - brake extension, 1/4 OD x 38 inch, use 38 inch from 25 foot roll marked 990094C1, two 9403525 nuts and two 9403447 sleeves

2шт.

990094C2

HOSE

TUBE - brake, 1/4 OD x 25 foot (Not Shown)

1шт.

9403525

TUBE NUT,37 Degree, 7/16"-20, Type B

NUT - 1/4 OD tube, 7/16-20 hydraulic flared (Not Shown)

1шт.

9403447

SLEEVE,37 Degree, 1/4" Tube

- 1/4 OD tube (Not Shown)

1шт.

5

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- 1/4 OD tube, 7/16-20 hydraulic flared

2шт.

6

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

12шт.

7

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

4шт.

8

25548R1

WASHER

- flat, 13/16 x 1-1/2 x 7/32 inch

20шт.

9

25529R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

16шт.

10

REF

INSTRUCTION

AXLE - drive, see Figure 6-046

1шт.
