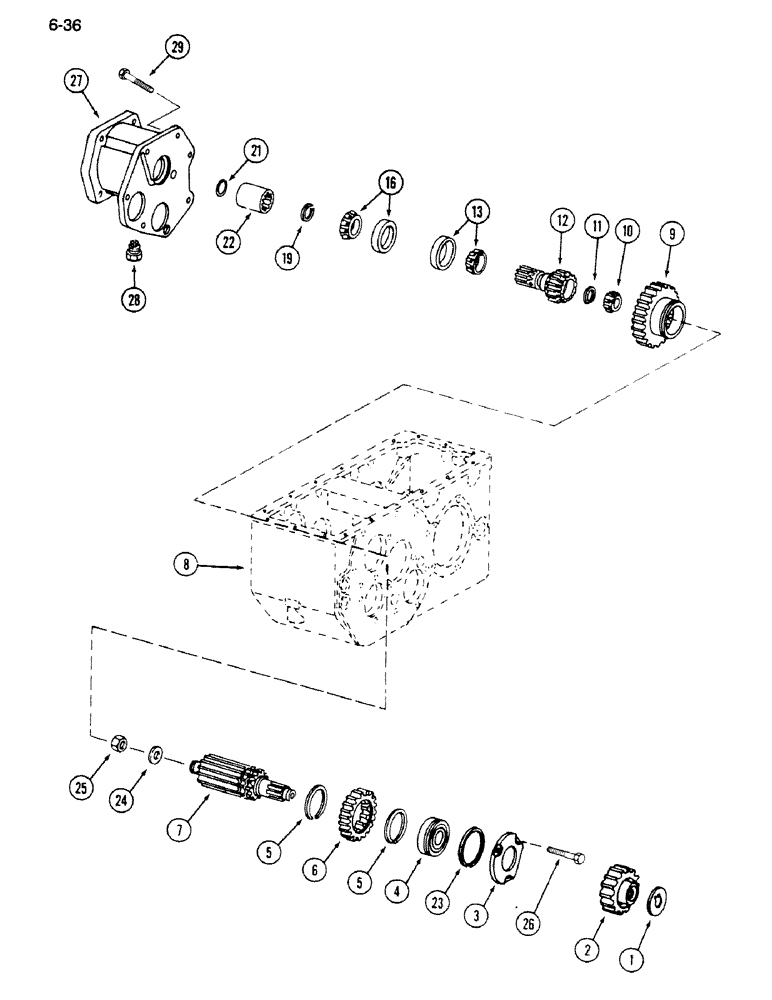

Запчасти Case IH 1620 (6-036) - TRANSMISSION INPUT DRIVE SHAFT (03) - POWER TRAIN

1

382900R1

LOCK WASHER

- input drive shaft lock

1шт.

2

402845R1

GEAR

- change drive pinion, 27 teeth

1шт.

3

379481R1

RETAINER

- shaft bearing

1шт.

4

379438R91

ROLLER BEARING,34.99mm ID x 80mm OD x 21mm W

- input shaft (Straight roller) 3.149 inch OD

1шт.

5

100070R1

RING

- input shaft drive shaft snap

2шт.

6

402844R1

GEAR

- second speed driven, 30 teeth

1шт.

7

402842R3

SHAFT

- input drive

1шт.

8

REF

INSTRUCTION

CASE - transmission, see Figure 6-044

1шт.

9

395652R1

GEAR

- first and third sliding, 20 and 38 teeth

1шт.

10

358035R91

BEARING, ROLLER, CYL,25mm ID x 44.82mm OD x 20.64mm W

- input pinion shaft (Straight roller) 1.764 inch OD

1шт.

11

A32438

SNAP RING

RING - input pinion shaft, snap 57/64 inch ID

1шт.

12

402846R2

SHAFT

- input pinion

1шт.

13

671028R91

BEARING ASSY,38.1mm ID x 72.02mm OD x 20.64mm W

ASSEMBLY - inner pinion shaft

1шт.

16

184076C91

BEARING ASSY,33.45mm ID x 69.04mm OD x 19.9mm W

BEARING ASSEMBLY - outer pinion shaft

1шт.

19

A21619

CIRCLIP

RING - pinion shaft bearing, snap 1.265 inch ID

1шт.

80644C91

SPLINED COUPLING

COUPLING ASSEMBLY - input pinion shaft, Includes: Ref. 21 and 22

1шт.

21

402848R1

RING

- retaining

1шт.

22

NSS

NOT SOLD SEPARAT

COUPLING - shaft (Order 80644C91)

1шт.

23

ST419

RING

- input drive shaft bearing, snap

1шт.

24

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- input drive shaft

1шт.

25

382879R1

NUT

- input drive shaft

1шт.

26

27970R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

- hex prevailing torque, 5/16 NC x 7/8 inch, Grade 8

3шт.

27

402849R1

HOUSING

- hydrostatic motor, adapter

1шт.

28

700518C1

PLUG

- square head magnetic, 1/4 inch PT

1шт.

29

26315R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

- hex prevailing torque, 7/16 NC x 1-1/4 inch, Grade 8

7шт.
