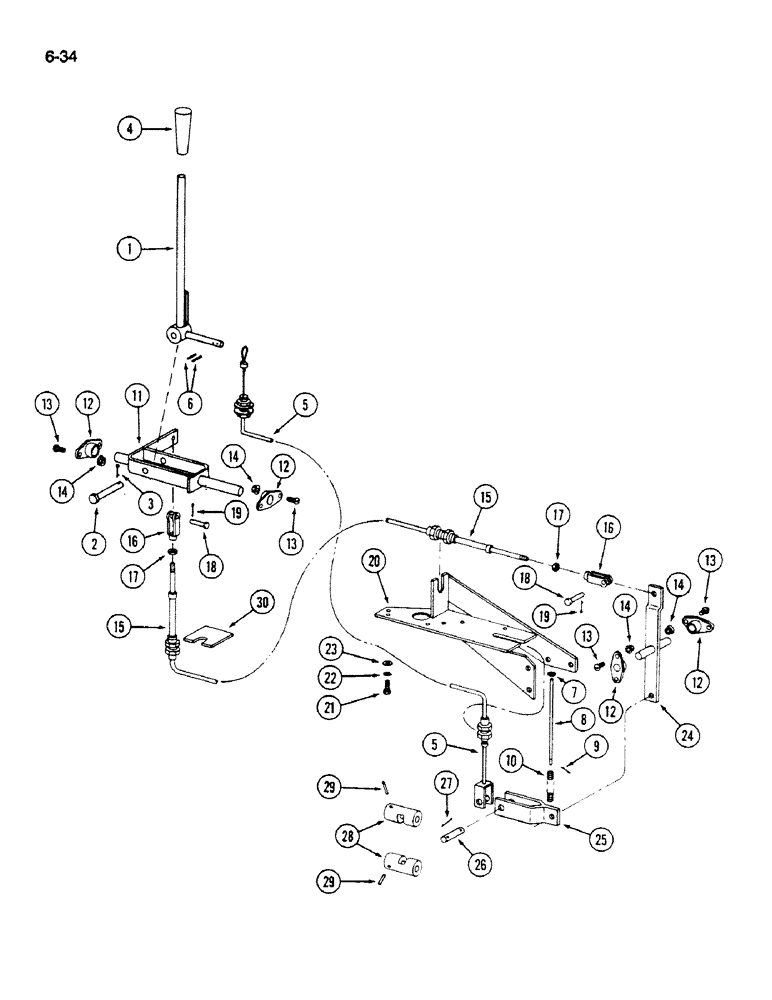

Запчасти Case IH 1620 (6-034) - TRANSMISSION GEAR SHIFT CONTROL (03) - POWER TRAIN

1

224865C1

LEVER

- gear shift

1шт.

2

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

1шт.

3

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

4

157473C1

KNOB

HANDLE - gear shift lever

1шт.

5

1321297C3

CABLE

- transmission linkage

1шт.

6

138-80

LOCK PIN,5/32" x 1 3/8", Slotted

Pin, 5/32" x 1 3/8", Slotted

2шт.

7

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch

3шт.

8

194445C1

ROD

- spring anchor

1шт.

9

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

47822D

SPRING

- shifting retractor

1шт.

11

1276181C1

BRACKET

SUPPORT - gear shift

1шт.

12

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSEMBLY - pivot

4шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

8шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

15

1329390C1

CABLE ASSY.

CABLE ASSEMBLY - shift rail control

1шт.

16

144243

CLEVIS

- 3/8 NF x 2-1/2 inch

2шт.

17

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

18

138084

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/8 x 1-1/16 inch

2шт.

19

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

3шт.

20

194442C1

SUPPORT ASSY.

SUPPORT - shift linkage

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

24

194439C1

LEVER ASSY.

LEVER - shift, lower

1шт.

25

194437C1

LINK

- shift rail control

1шт.

26

195108C1

PIN

- shift lug

1шт.

27

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

28

192689C1

PIN,34.93mm OD x 73.7mm L

- shift rail extension

2шт.

29

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

30

196511C1

LARGE PLATE

SUPPORT - cable nut

1шт.
