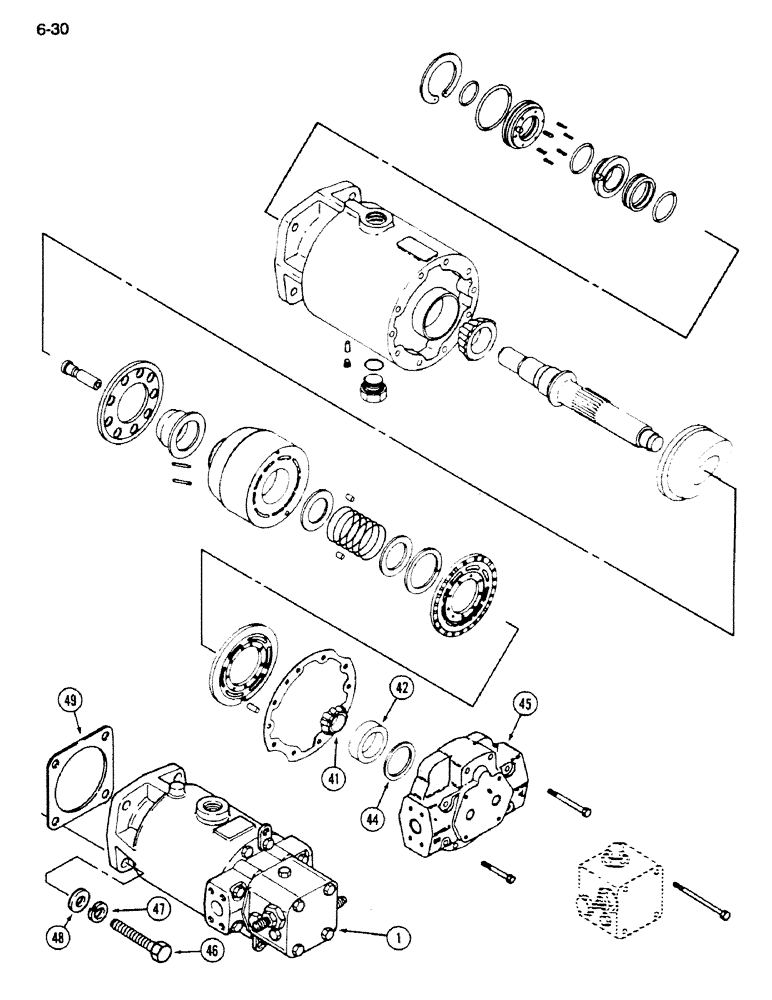

Запчасти Case IH 1620 (6-030) - HYDROSTATIC MOTOR (CONTD) (03) - POWER TRAIN

1

1252344C92

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, remanufactured, Includes: Ref. 41 - 45 in this figure and parts in Figure 6-028

1шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

CONE - output shaft bearing, 5/8 inch ID

1шт.

42

140759C1

BEARING CUP

CUP - output shaft bearing, 2-1/4 inch OD

1шт.

140760C91

SHIM KIT

- bearing, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.30 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

46

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

48

283856C1

WASHER

- flat, 17/32 x 1 x 5/64 inch

4шт.

49

166506C1

GASKET,0.81mm Thk

- mounting

1шт.
