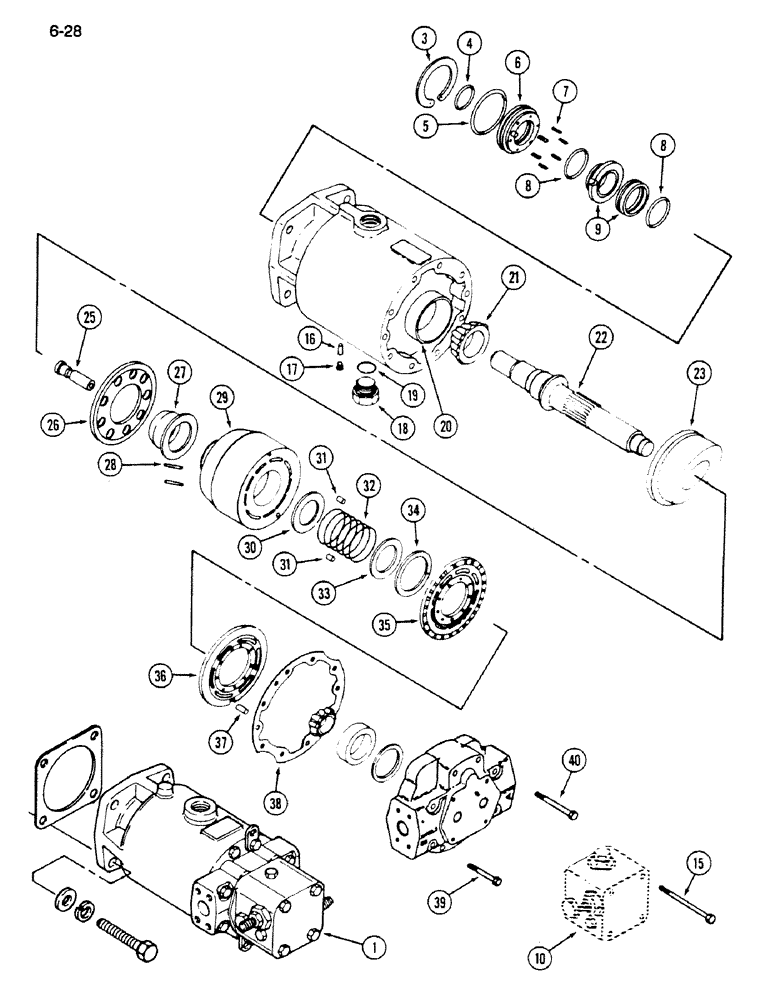

Запчасти Case IH 1620 (6-028) - HYDROSTATIC MOTOR (03) - POWER TRAIN

1

1252344C92

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, remanufactured, Includes: Ref. 2 - 40 in this figure and parts in Figure 6-030

1шт.

2

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 3 - 9

1шт.

3

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

4

S113612

O-RING

- shaft, 1-3/8 x 1-1/2 x 1/16 inch

1шт.

5

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal (Order 142518C92)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - shaft seal (Order 142518C92)

6шт.

8

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order 142518C92)

1шт.

10

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve, see Figure 6-032

1шт.

15

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN - dowel, 5/16 inch, hardened

1шт.

17

444688

PLUG

- solid head, 1/8 PT

1шт.

18

9410361

PLUG

- o-ring boss, 1-1/16-12 thread

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 OD tube

1шт.

20

ST987

BEARING CUP

CUP - output shaft bearing, 3-17/64 inch OD

1шт.

21

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - output shaft bearing, 1-3/4 inch ID

1шт.

22

140748C1

SHAFT

- output

1шт.

23

142410C1

HOUSING

PLATE - swash, fixed

1шт.

24

140750C92

KIT

GROUP KIT - rotating, Includes: Ref. 25 - 35

1шт.

25

140751C1

PISTON ASSY.

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retainer (Order 140750C92)

1шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - retainer plate (Order 140750C92)

1шт.

28

140752C1

PIN

- pre-load dowel

6шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder (Order 140750C92)

1шт.

30

NSS

NOT SOLD SEPARAT

SPACER - spring (Order 140750C92)

1шт.

31

140754C1

PIN

- dowel

2шт.

32

NSS

NOT SOLD SEPARAT

SPRING - plate (Order 140750C92)

1шт.

33

NSS

NOT SOLD SEPARAT

SPACER - spring (Order 140750C92)

1шт.

34

NSS

NOT SOLD SEPARAT

RING - retaining (Order 140750C92)

1шт.

35

140753C1

PLATE

- bearing

1шт.

36

140755C2

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel

1шт.

38

140756C1

GASKET

- end cover

1шт.

39

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

2шт.

40

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch

6шт.
