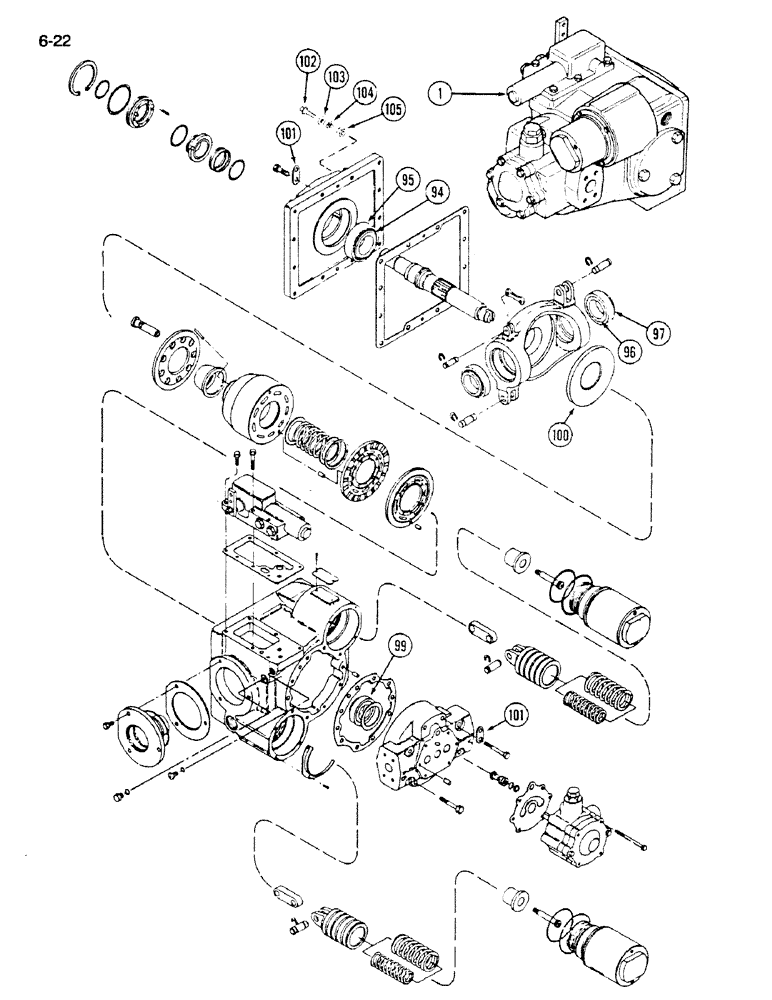

Запчасти Case IH 1620 (6-022) - HYDROSTATIC PUMP (CONTD) (03) - POWER TRAIN

1

1252339C92

PUMP

ASSEMBLY - hydrostatic, remanufactured, Includes: Ref. 94 - 100, Ref. 2 - 41 on Figure 6-18, and Ref. 43 - 93 on Figure 6-20

1шт.

94

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - input shaft bearing, 1.750 inch ID

1шт.

95

ST987

BEARING CUP

CUP - input shaft bearing, 3.265 inch OD

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - trunnion bearing, 1.7812 inch ID

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - trunnion bearing, 2.891 inch OD

2шт.

99

396089R91

BEARING ASSY,25.4mm ID x 59.53mm OD x 23.37mm W

ASSEMBLY - input shaft

1шт.

100

80368C1

PLATE

- thrust

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

102

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

103

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
