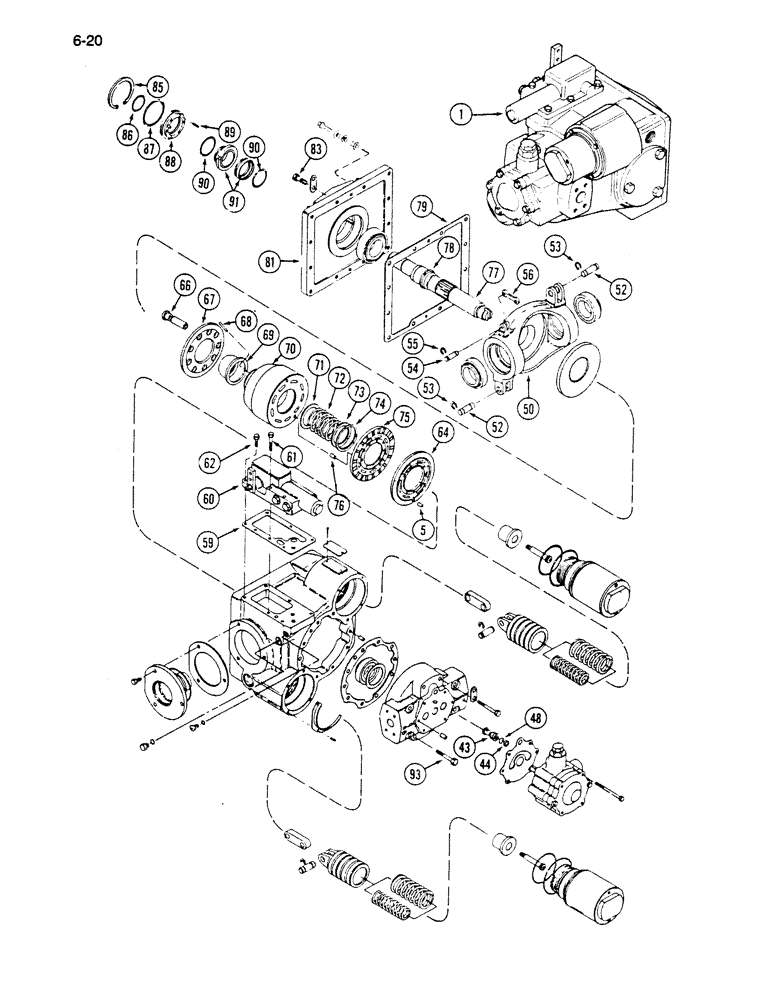

Запчасти Case IH 1620 (6-020) - HYDROSTATIC PUMP (CONTD) (03) - POWER TRAIN

1

1252339C92

PUMP

ASSEMBLY - hydrostatic, Includes: Ref. 43 - 93, Ref. 2 - 41 on Figure 6-18, and Ref. 94 - 100 on Figure 6-22

1шт.

43

140769C1

CHECK VALVE

VALVE - check

2шт.

44

140770C1

RING

- check valve

2шт.

48

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- check valve, 9/16 x 3/4 x 3/32 inch

2шт.

50

80364C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- control valve link

1шт.

55

A7111

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

56

142387C1

PIPE FITTING

LINK - control valve, connecting

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

REF

INSTRUCTION

VALVE - control, see Figure 6-024

1шт.

61

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch

2шт.

62

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

4шт.

64

1255222C1

PLATE

- pump valve

1шт.

140777C91

KIT

GROUP KIT - rotating, Includes: Ref. 66 - 76

1шт.

66

140778C1

PISTON

- cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retainer (Order 140777C91)

1шт.

68

140779C1

PIN

- pre-load dowel

6шт.

69

NSS

NOT SOLD SEPARAT

GUIDE - retainer plate (Order 140777C91)

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder (Order 140777C91)

1шт.

71

NSS

NOT SOLD SEPARAT

SPACER - spring (Order 140777C91)

1шт.

72

NSS

NOT SOLD SEPARAT

SPRING - cylinder barrel (Order 140777C91)

1шт.

73

NSS

NOT SOLD SEPARAT

SPACER - spring (Order 140777C91)

1шт.

74

NSS

NOT SOLD SEPARAT

RING - retaining (Order 140777C91)

1шт.

75

140780C1

BEARING WASHER

- bearing

1шт.

76

140754C1

PIN

- bearing plate dowel

2шт.

77

142411C2

SHAFT

ASSEMBLY - input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap (142411C2)

1шт.

79

140784C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting (Order 1252339C92)

1шт.

83

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

- hex, 7/16 NC x 1-1/4 inch

12шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S113612

O-RING

- shaft, 1-3/8 x 1-1/2 x 1/16 inch

1шт.

87

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal (Order 142518C92)

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal (Order 142518C92)

6шт.

90

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order 142518C92)

1шт.

93

203762R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch

2шт.
