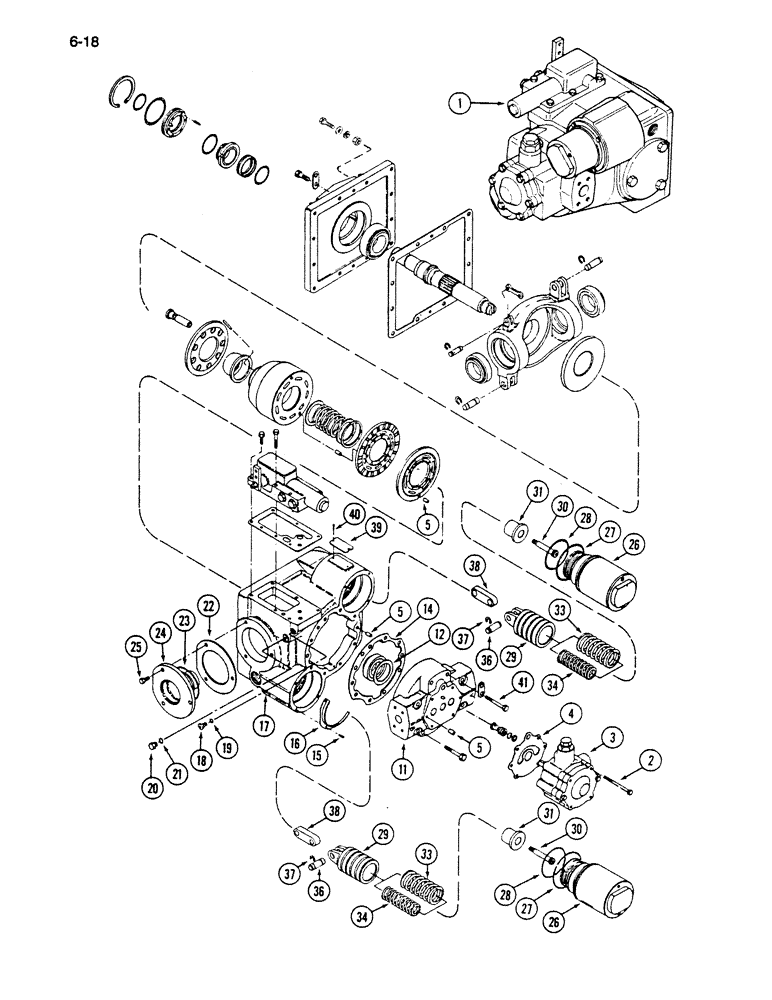

Запчасти Case IH 1620 (6-018) - HYDROSTATIC PUMP (03) - POWER TRAIN

1

1252339C92

PUMP

ASSEMBLY - hydrostatic, remanufactured, Includes: Ref. 2 - 41, Ref. 43 - 93 on Figure 6-20, and Ref. 94 - 100 on Figure 6-22

1шт.

2

26057R1

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 8

- hex, 5/16 NC x 3-1/2 inch

4шт.

3

REF

INSTRUCTION

PUMP - charge, see Figure 6-026

1шт.

4

133760C1

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump (Order 1252339C92)

1шт.

140783C91

PACKAGE

SHIM KIT - end cover, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch (1)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (1)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (1)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch (1)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch (1)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch (1)

1шт.

14

140782C1

GASKET

- end cover

1шт.

15

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW - hex socket, No. 8-32 x 3/8 inch

6шт.

16

140774C1

RETAINER

- servo piston

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 1252339C92)

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - housing (Order 1252339C92), Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - housing plug

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - housing (Order 1252339C92), Includes: Ref. 21

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - housing plug

1шт.

142386C91

SHIM KIT

- trunnion bearing, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (6)

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (4)

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (4)

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch (4)

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch (4)

1шт.

23

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- trunnion, 3 x 3-1/4 x 1/8 inch

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION - pump, (Order 1252339C92)

2шт.

25

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

26

140773C1

KIT

SLEEVE - servo

2шт.

27

383018R1

O-RING,2.675" ID x 0.103" Width

- servo sleeve, 2-11/16 x 2-7/8 x 3/32 inch

2шт.

28

22280R1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- servo sleeve, 2-1/16 x 2-5/8 x 3/32 inch

2шт.

29

1255223C1

PISTON ASSY.

PISTON ASSEMBLY - servo, Includes: Ref. 30 - 38

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, normal

1шт.

36

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

37

NSS

NOT SOLD SEPARAT

RING - link retaining

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate

2шт.

41

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

6шт.
