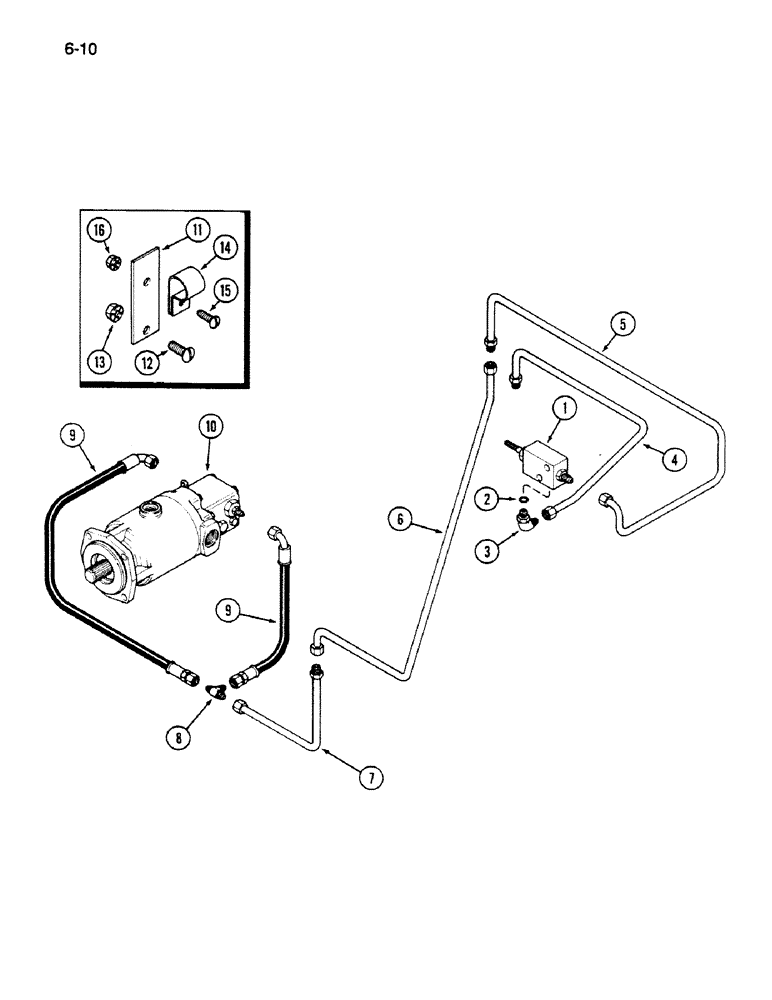

Запчасти Case IH 1620 (6-010) - FOOT-N-INCH VALVE CIRCUIT (03) - POWER TRAIN

1

398705R91

VALVE

ASSEMBLY - foot-n-inch, see Figure 6-014

1шт.

3

164596C1

ELBOW

- 90 degree, 9/16-18 inch thread

1шт.

4

1321275C1

HYD TUBE,0.375" OD, 405, 310 mm Length

TUBE - foot-n-inch valve return

1шт.

5

1321274C2

HYD TUBE

TUBE - foot-n-inch upper

1шт.

6

1327830C1

HYD TUBE

TUBE - foot-n-inch center

1шт.

7

187751C1

HYD TUBE

TUBE - foot-n-inch lower

1шт.

8

9402979

TEE,7/16"-20, 37 Degree

- 1/4 tube 7/16-20 thread

1шт.

9

175760C1

HOSE ASSY.

HOSE - foot-n-inch, 10 inch

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, see Figure 6-028

1шт.

11

196868C1

BAR

SUPPORT - lower foot-n-inch tube

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

14

515-2863

CLAMP,1/4", 3/8" Bolt

- 1/4 inch closed

1шт.

15

937875R1

SCREW,Serr, 1/4" - 20

- truss head, 1/4 NC x 3/4 inch

1шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
