(6-008) - HYDROSTATIC PUMP AND MOTOR CIRCUIT

Запчасти Case IH 1620 (6-008) - HYDROSTATIC PUMP AND MOTOR CIRCUIT (03) - POWER TRAIN

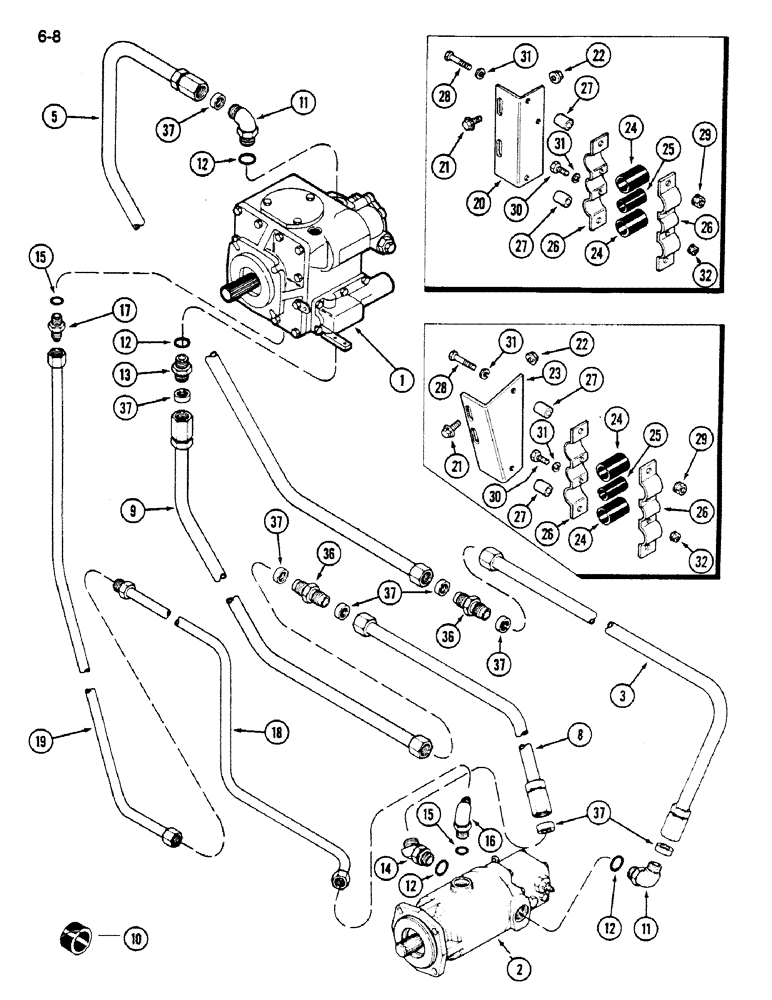

Схема запчастей Case IH 1620 - (6-008) - HYDROSTATIC PUMP AND MOTOR CIRCUIT (03) - POWER TRAIN
37
12
27
31
30
20
29
37
24
19
12
10
15
21
27
26
32
23
28
26
1
25
26
3
12
31
29
16
26
25
18
36
28
17
8
5
24
27
24
2
21
27
14
13
37
11
22
9
37
36
12
24
11
37
31
32
30
37
22
15
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, see Figure 6-018

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, see Figure 6-028

1шт.

3

187721C2

TUBE,1479, 267 mm Length

ASSEMBLY - drive reverse lower pressure (Include ref. 10)

1шт.

5

187720C2

TUBE

ASSEMBLY - drive reverse upper pressure (Include ref. 10)

1шт.

8

187719C3

TUBE,1113, 369 mm Length

ASSEMBLY - drive forward lower pressure (Include ref. 10)

1шт.

9

187718C2

TUBE,1450, 1192.5 mm Length

ASSEMBLY - drive forward upper pressure (Include ref. 10)

1шт.

10

165722C1

SLEEVE

- tube nut rubber

4шт.

11

595408R1

90 ELBOW

- 90 degree, 1 inch tube 1-5/16-12 thread

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch OD tube

4шт.

13

163915C1

FITTING

CONNECTOR - 1 inch tube 1-5/16-12 thread

1шт.

14

595406R1

ELBOW

- 45 degree, 1 inch tube 1-5/16-12 thread

1шт.

15

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

2шт.

16

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree adjustable, 3/4 tube 1-1/16-12 thread

1шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, 3/4 tube 1-1/16-12 thread

1шт.

18

183740C1

TUBE ASSY.

TUBE ASSEMBLY - bleed lower

1шт.

19

183741C1

TUBE ASSY.

TUBE ASSEMBLY - bleed upper

1шт.

20

187936C2

BRACKET

ANGLE - tube rear support

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

23

187937C2

BRACKET

ANGLE - tube front support

1шт.

24

187935C1

STRIP

- pressure tube clamp

4шт.

25

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- bleed tube clamp

2шт.

26

187934C1

CLAMP

- tube

4шт.

27

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

4шт.

28

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

4шт.

36

183789C1

CONNECTOR, ELEC

UNION - 1 inch tube 1-5/16-12 thread

2шт.

37

183797C1

SEAL

- 1 inch tube

8шт.
