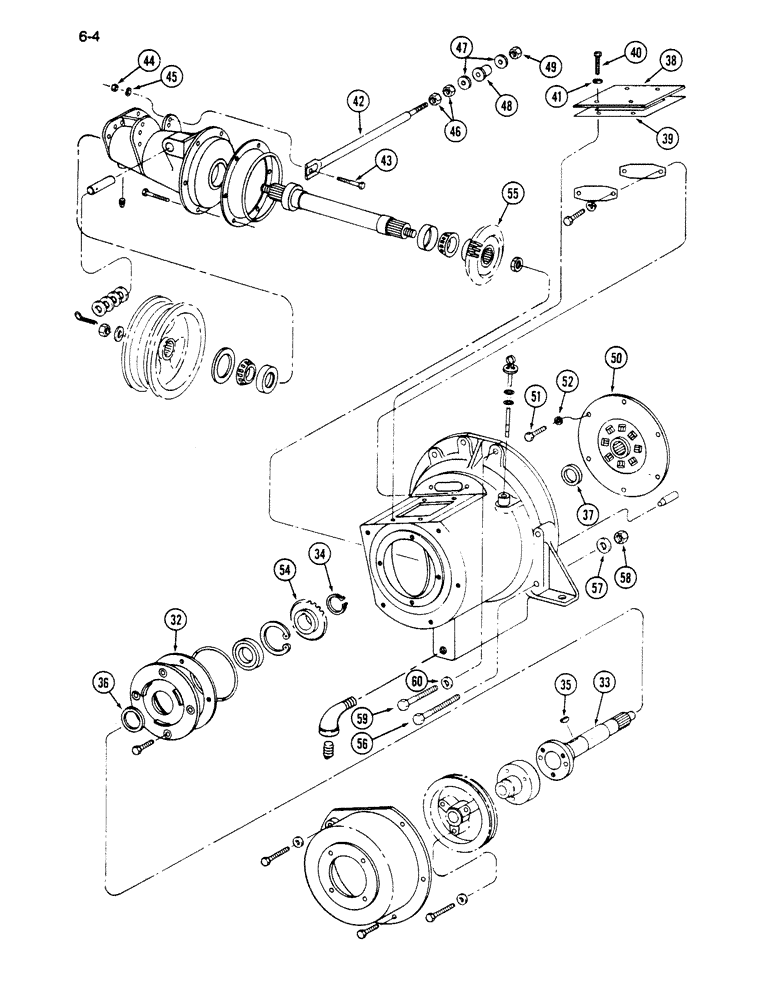

Запчасти Case IH 1620 (6-004) - POWER TAKEOFF DRIVE (CONTD) (03) - POWER TRAIN

188196C1

SHIM KIT

- housing, drive shaft, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.030 inch

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.010 inch

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.007 inch

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.005 inch

1шт.

33

192816C1

SHAFT

- drive

1шт.

34

23483R1

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

35

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY - drive shaft, Woodruff, 5/16 x 2-1/8 inch

1шт.

36

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- drive shaft (Pump housing end) 3-5/8 inch OD

1шт.

37

173559C91

SEAL

- drive shaft (Drive plate end) 2-5/8 inch OD

1шт.

38

192275C1

COVER

- housing

1шт.

39

191830C1

GASKET

- cover, housing

1шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

42

194086C1

ROD

- snubber

1шт.

43

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

44

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

45

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

46

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

2шт.

47

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 3/16 inch

2шт.

48

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - snubber

1шт.

49

232-46110

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NF

1шт.

50

188013C91

PLATE ASSY.,354.33mm OD

PLATE - drive

1шт.

50

188013C91R

REMAN-CLUTCH PLATE

Drive

1шт.

50

188013C91C

CORE-CLUTCH PLATE

Return Number

1шт.

51

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex prevailing torque, 1/2 NC x 1 inch, Grade 8

6шт.

52

406579R1

WASHER

- flat, hardened, 17/32 inch

6шт.

1302924C1

GEAR-SET

GEAR SET - drive, separator (Matched set of 2), Includes: Ref. 54 and 55

1шт.

54

NSS

NOT SOLD SEPARAT

GEAR - drive shaft, 27 teeth

1шт.

55

NSS

NOT SOLD SEPARAT

GEAR - separator drive shaft, 44 teeth

1шт.

56

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

4шт.

57

195-2203

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 11/64 inch

4шт.

58

129-107

NUT,5/8"-11, G5

4шт.

59

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

60

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

2шт.
