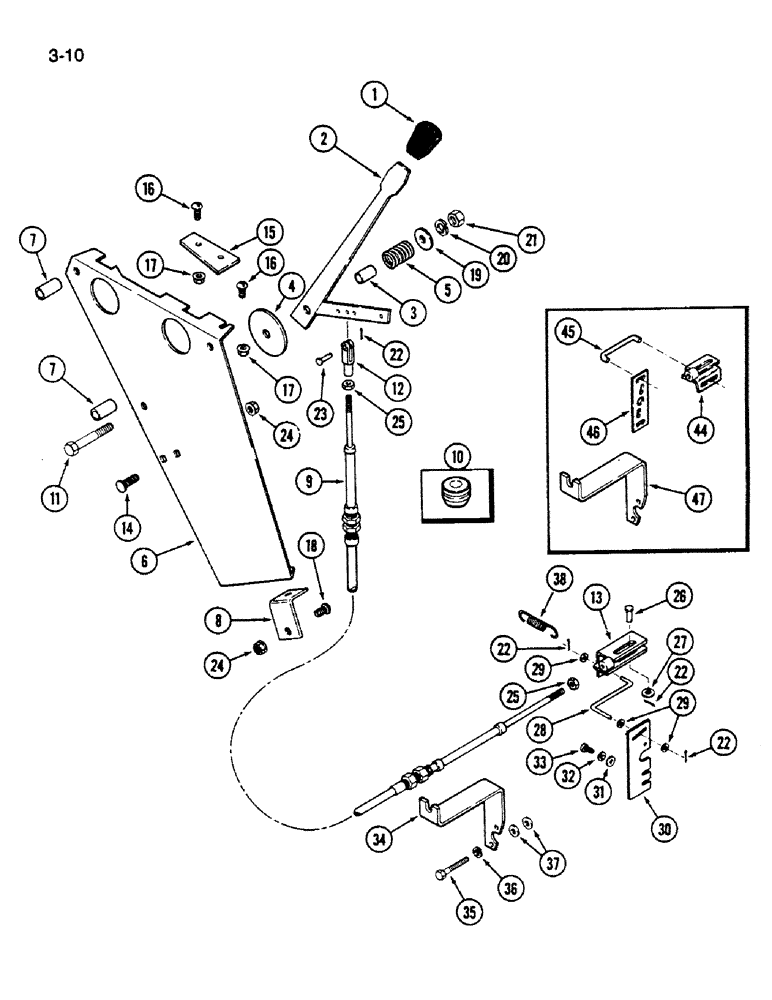

Запчасти Case IH 1620 (3-010) - THROTTLE CONTROLS (02) - FUEL SYSTEM

1

120197C2

KNOB

- throttle lever

1шт.

2

1301183C92

LEVER

ASSEMBLY - throttle control

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- 5/8 x 1-1/4 inch tube

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

P022

CARTON BOX

SPRING - throttle control lever

1шт.

6

1322731C1

SUPPORT

- throttle control

1шт.

7

SA10227

SPACER,3/8" Pipe x 1 1/8"

- 3/8 x 1-1/8 inch pipe

2шт.

8

1301242C1

BRACKET

ANGLE - throttle support

1шт.

9

1329389C1

CABLE

ASSEMBLY - throttle (Includes Ref. 25)

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- throttle cable grain tank

2шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

117824

YOKE

CLEVIS - No. 10-32 x 1-9/16 inch

1шт.

13

1330287C1

CLEVIS

- throttle cable

1шт.

14

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 x 1-3/4 inch

2шт.

15

1329861C1

PLATE

- throttle control

1шт.

16

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 x 1/2 inch

3шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

3шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 x 3/4 inch

2шт.

19

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

4шт.

23

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

1шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

25

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

26

20687R1

CLEVIS PIN,1/4" x .609"

PIN - clevis, 1/4 x 49/64 inch

1шт.

27

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

28

1330289C1

STEM

ROD - stop lever

1шт.

29

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

30

1330275C1

LEVER

- mechanical fuel shutoff

1шт.

31

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

32

30264R1

LOCK WASHER,M5

WASHER - lock, 5 mm

2шт.

33

30954R1

SCREW,Cross Pan Hd, M5 x 10

- M5 x 10 mm, class 4.8

2шт.

34

1330680C1

SUPPORT

- throttle cable rear

1шт.

35

30195R1

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9

- M6 x 30 mm, Class 8.8

2шт.

36

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

37

30210R1

WASHER,M6 x 14.5 x 2.5, HT

- flat, 6.4 x 14 x 2.5 mm

4шт.

38

1330342C1

SPRING

- return helper, throttle

1шт.

1323647C1

LEVER

CONTROL KIT - throttle (For combine built prior to 1987), Includes: Ref. 44 - 47

1шт.

44

1322726C1

CLEVIS COUPLING

CLEVIS - throttle cable

1шт.

45

1322724C1

ROD

- stop lever

1шт.

46

1322725C1

LEVER

- shut off, mechanical

1шт.

47

1322730C1

SUPPORT ASSY.

SUPPORT - rear, throttle cable

1шт.
