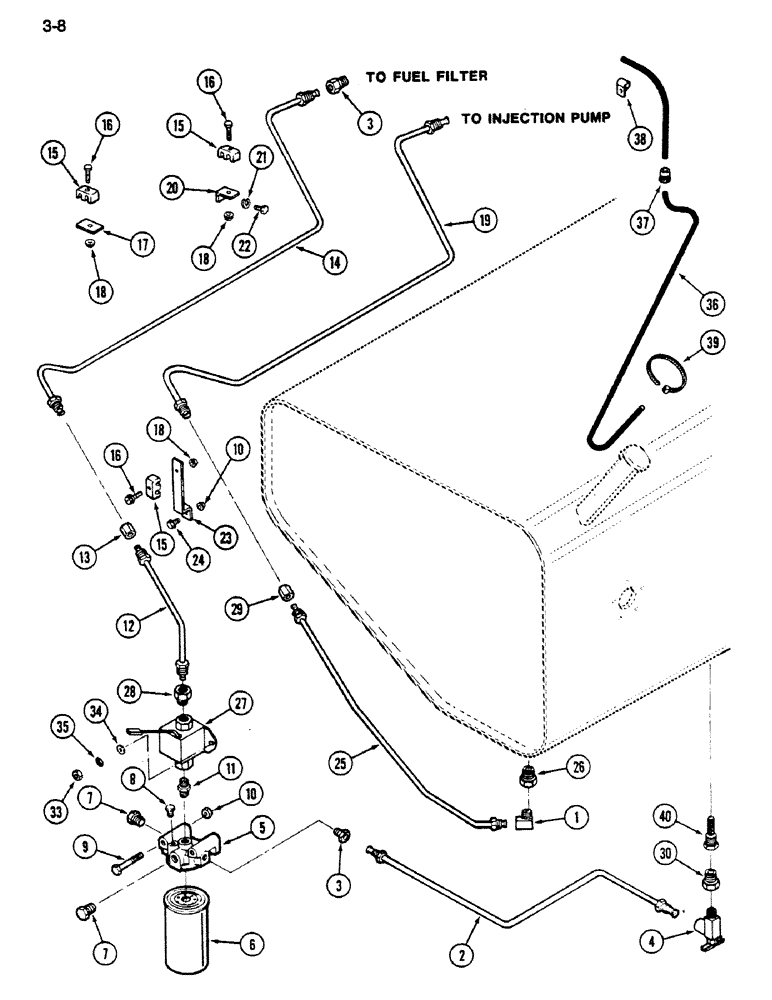

Запчасти Case IH 1620 (3-008) - FUEL LINES AND FILTER (02) - FUEL SYSTEM

1

442411

ELBOW

- inverted lared tube, 90 degree, 5/16 inch

1шт.

2

1301110C2

FUEL TUBE

TUBE ASSEMBLY - fuel line, filter base to tank ( replaced 222-1016 )

1шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., , Inverted flared tube, 3/8" (Replaced 442323 ) 5/8"-18 Inv Fl x 1/4" NPT

2шт.

4

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

VALVE ASSEMBLY - fuel shutoff

1шт.

Ref. 4, the correct number for the fuel shutoff valve assembly is 161707C1

1шт.

5

612277C2

FILTER HEAD

BASE ASSEMBLY - filter, fuel

1шт.

6

A184776

FUEL FILTER

ELEMENT - filter, fuel

1шт.

7

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4-18 inch

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27 inch

1шт.

9

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

3шт.

11

443986

REDUCER,1/4"-18 NPTF x 1/8"-27 NPTF

NIPPLE - pipe, reducer, 1/4 to 1/8 inch PT

1шт.

12

1301111C1

FUEL TUBE

TUBE ASSEMBLY - fuel line, fuel supply lower

1шт.

13

442338

UNION

- inverted flared tube, 3/8 inch

1шт.

14

1301112C1

FUEL TUBE

TUBE ASSEMBLY - fuel line pressure upper

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

17

198462C1

PLATE

- fuel line upper tubes support

1шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

3шт.

19

1301114C1

FUEL TUBE

TUBE ASSEMBLY - fuel line return upper

1шт.

20

178950C1

ANGLE

- fuel line upper tubes support

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW - hex head tap, 5/16 x 3/4 inch

1шт.

23

1301174C1

SUPPORT TUBE

SUPPORT - fuel line lower tubes

1шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 x 1 inch

1шт.

25

1301113C1

FUEL TUBE

TUBE ASSEMBLY - fuel line return lower

1шт.

26

444026

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING - pipe, reducer, 3/8 to 1/8 inch PT

1шт.

27

183721C1

PUMP

ASSEMBLY - fuel

1шт.

28

920654C1

CONNECTOR, ELEC

CONNECTOR - fuel, Serial Range: pump-tube

1шт.

29

442337

NUT

UNION - inverted flared tube, 5/16 inch

1шт.

30

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

BUSHING - pipe, reducer, 3/8 to 1/4 inch

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

2шт.

34

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 9 x 18 x 3 mm

2шт.

35

93-51033

LOCK WASHER,Ext Csk Tooth, 5/16"

Ext Csk Tooth, 5/16"

2шт.

36

NSS

NOT SOLD SEPARAT

TUBE - vent, tank (3 175 mm long) Order 74813C2 and, Serial Range: cut-length

1шт.

37

195803C1

GROMMET

- tube

1шт.

38

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - tube

3шт.

39

533959R1

CABLE TIE,.135" x 11"

STRAP - tie

1шт.

40

179381C1

SIEVE

SCREEN - fuel, tank

1шт.
