Запчасти Case IH 1620 (3-004) - FUEL FILTER, D358 DIESEL ENGINE (02) - FUEL SYSTEM

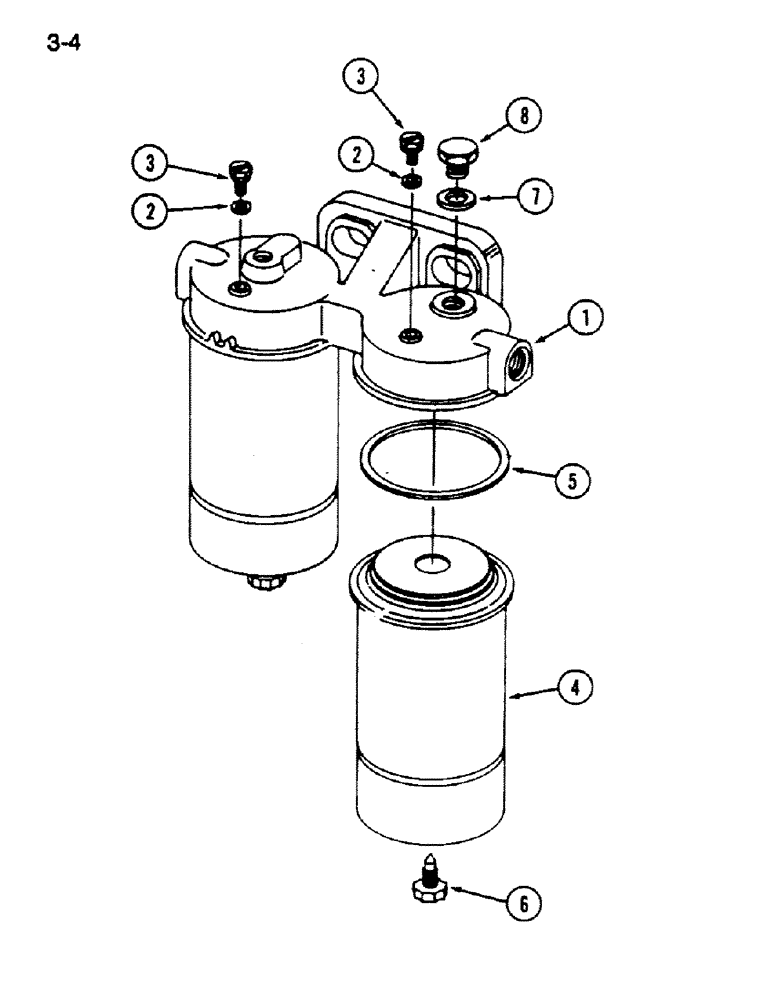

Схема запчастей Case IH 1620 - (3-004) - FUEL FILTER, D358 DIESEL ENGINE (02) - FUEL SYSTEM
2
1
3
8
2
7
6
4
3
5

Артикул

Название

Примечание

Количество

3228272R91

FILTER ASSY

FILTER ASSEMBLY - fuel (Two stage spin-on type), Includes: Ref. 1 - 8

1шт.

1

3132491R1

FILTER HEAD

HEADER - filter

1шт.

2

757760R1

RING

- packing

2шт.

3

3144780R1

SCREW

- air vent

2шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - filter fuel (Spin-on)

2шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

2шт.

6

3228407R1

PLUG

- drain

2шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

8

712616R1

PLUG,Hex, M14 x 1.5

- Filler Hex, M14 x 1.5

2шт.

Выбрано товаров: 9
