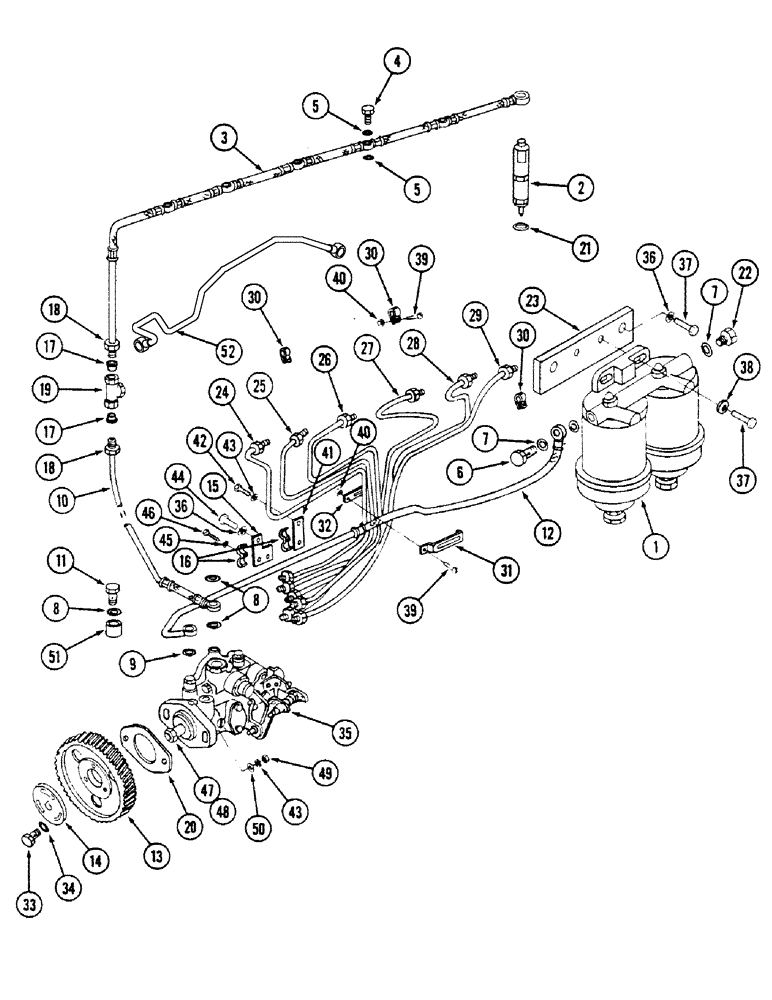

Запчасти Case IH 1620 (3-002) - FUEL INJECTION SYSTEM, D358 DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, see Figure 3-004

1шт.

2

REF

INSTRUCTION

NOZZLE HOLDER ASSEMBLY - injection, see Figure 3-006

6шт.

3

3218122R1

LINE

ASSEMBLY - leak

1шт.

4

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

- inlet union

6шт.

5

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - packing

12шт.

6

713098R2

SCREW

- inlet union

1шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

3шт.

8

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

3шт.

9

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

10

3218909R1

TUBE

TUBE ASSEMBLY - overflow

1шт.

11

3216451R1

SCREW

- inlet union

1шт.

12

3228124R1

TUBE,240, 205 mm Length

HOSE AND TUBE ASSEMBLY - fuel filter to injection pump

1шт.

13

3218450R1

GEAR

- injection pump

1шт.

14

3218451R2

HUB

- injection pump gear

1шт.

15

3055678R1

PLATE

LINK - fuel line ("L" shape)

1шт.

16

3055386R1

CLAMP

CLIP - fuel line

2шт.

17

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SLEEVE - ferrule

2шт.

18

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - tube

2шт.

19

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

T-UNION - fuel line

1шт.

20

3055384R1

GASKET

- fuel injection pump

1шт.

21

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

22

886125C1

ADAPTER

- tube

1шт.

23

3144325R1

PLATE

BRACKET - fuel filter

1шт.

24

3228117R1

PIPE

TUBE ASSEMBLY - injection, cylinder 1

1шт.

25

3228118R1

PIPE

TUBE ASSEMBLY - injection, cylinder 2

1шт.

26

3228119R1

PIPE

TUBE ASSEMBLY - injection, cylinder 3

1шт.

27

3228121R1

PIPE

TUBE ASSEMBLY - injection, cylinder 4

1шт.

28

3228122R1

PIPE

TUBE ASSEMBLY - injection, cylinder 5

1шт.

29

3228123R1

PIPE

TUBE ASSEMBLY - injection, cylinder 6

1шт.

30

3132770R1

COLLAR

CLAMP - tube

3шт.

31

3132838R1

BRACKET

CLAMP - tube, upper part

1шт.

32

3132839R1

CLAMP

- tube, lower part

1шт.

33

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, Grade 8

3шт.

34

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 8.8 x 21 x 2.5 mm

3шт.

35

1329014C1

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (New)

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

37

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

38

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

39

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- slotted pan head machine

4шт.

40

30208R1

NUT,M6, Cl 10

- lock

4шт.

41

3055458R1

LARGE PLATE

LINK - fuel line (straight)

1шт.

42

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

44

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 5/8 inch

1шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

46

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

47

3141587R3

NUT

- hex, M14

1шт.

48

892-1114

LOCK WASHER,M14

WASHER - lock, 14 mm

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

2шт.

50

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 21/64 x 3/4 x 3/32 inch

2шт.

51

3218465R1

SPACER

BUSHING - steel, 12.5 x 12 mm

1шт.

52

3055972R91

TUBE

- return line

1шт.
