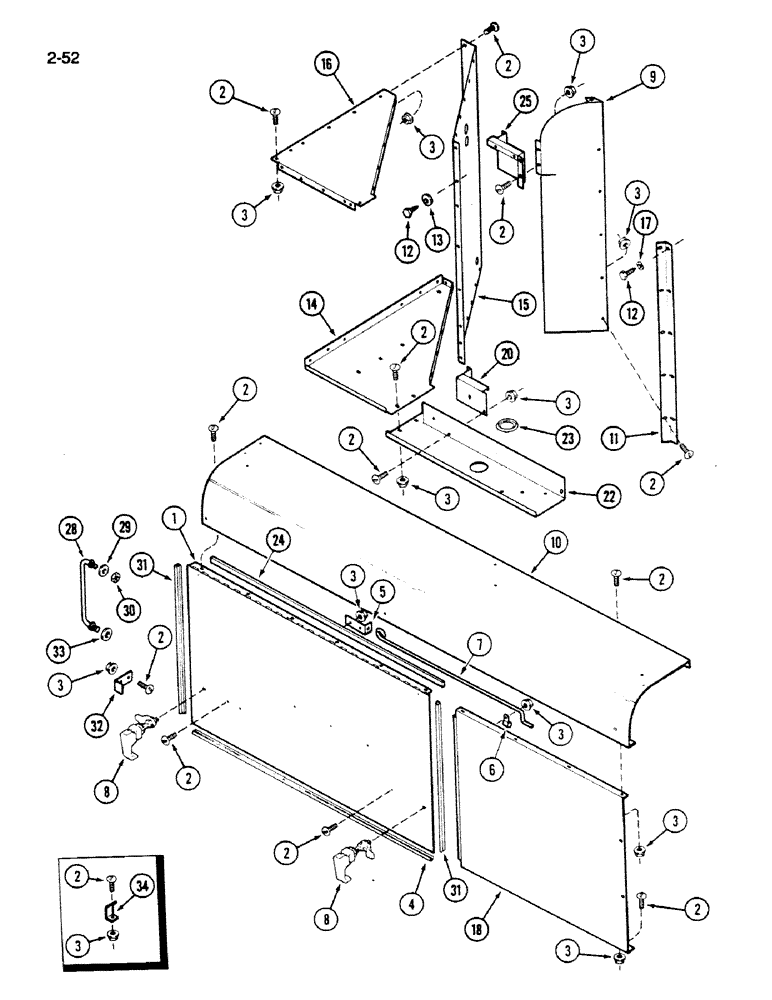

Запчасти Case IH 1620 (2-052) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

1

1338034C1

DOOR

ASSEMBLY - access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

70шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

70шт.

4

1319691C1

SEAL

SEAL - door

1шт.

5

1319697C1

SUPPORT

- rod

1шт.

6

362123R1

CLIP

- rod

1шт.

7

183444C1

ROD

- door

1шт.

8

1302494C2

LATCH

- door

2шт.

9

1317965C1

DEFLECTOR

- air

1шт.

10

1317844C1

SHEET

- top

1шт.

11

1317966C1

SUPPORT

- deflector ( replaced 1317955C1 )

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

13

195-104

WASHER,3/8"

- flat, 13/32 x 1 x 3/64 inch

6шт.

14

1970106C1

SUPPORT

SHEET - bottom, rear

1шт.

15

1317861C2

SUPPORT ASSY.

SUPPORT - rear

1шт.

16

1321221C1

SHEET

- upper

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

18

1321264C1

SHEET

- chute

1шт.

20

1317858C1

SUPPORT

- oil cooler

1шт.

22

1317857C1

SUPPORT

SHEET - clean out

1шт.

23

1302758C1

PLUG

- clean out ( replaced 130278C1 )

1шт.

24

1321353C1

SEALING STRIP

SEAL - hinge

1шт.

25

1321276C1

SUPPORT ASSY.

SUPPORT - oil cooler

1шт.

28

1251832C1

BOLT

HANDLE - assist

1шт.

29

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32

4шт.

30

905263R1

NUT,M12 x 1.75, Cl 10

NUT - hex, M12 (Class 10)

2шт.

31

1319817C1

STRIP

SEAL - door

2шт.

32

1317718C1

BRACKET

- lock

1шт.

33

25710R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

4шт.

34

561915R1

BRACKET

- light

1шт.
