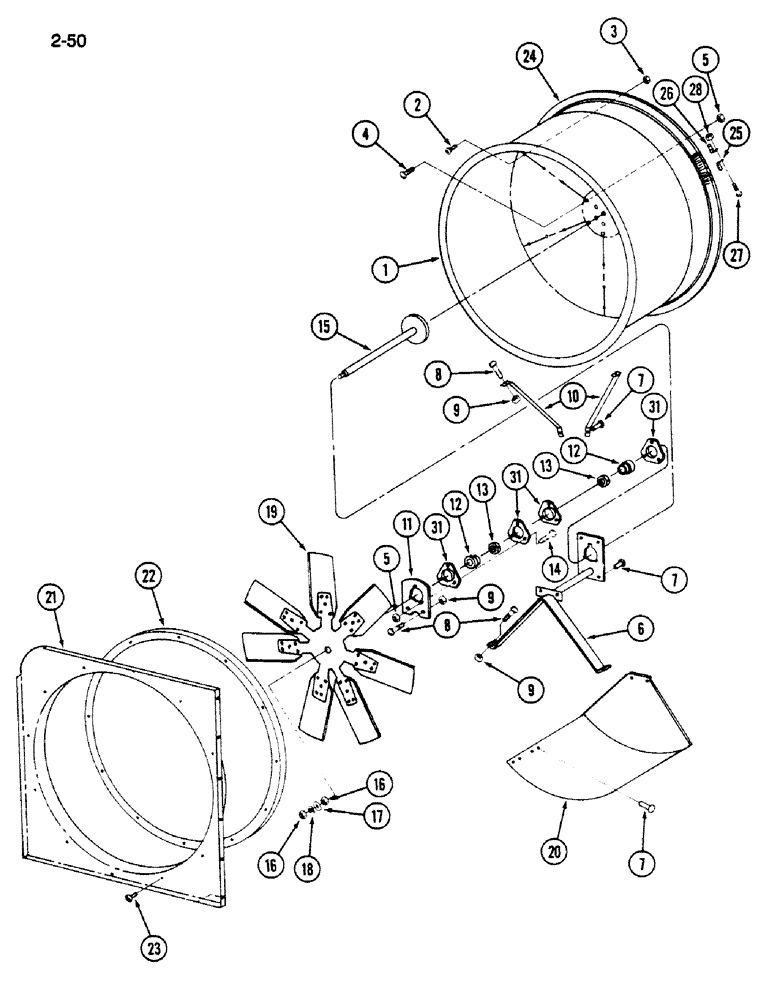

Запчасти Case IH 1620 (2-050) - ROTARY AIR SCREEN (01) - ENGINE

1

159702C91

SCREEN

ASSEMBLY - rotary, Includes: Ref. 2 and 3

1шт.

2

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

18шт.

3

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex, No. 10 NC

18шт.

4

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted, 1/4 NC x 1/2 inch

12шт.

5

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

18шт.

6

194998C1

SUPPORT ASSY.

SUPPORT - bearing

1шт.

7

104235

RIVET,FH, 3/16" x 1/2"

12шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

6шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 NC x 3/4 inch

8шт.

10

154885C1

BRACE

- support

2шт.

11

153570C1

BRACKET

- bearing

1шт.

12

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

- shaft

2шт.

13

468391R11

COLLAR

- bearing

2шт.

14

937875R1

SCREW,Serr, 1/4" - 20

- slotted, 1/4 NC x 3/4 inch

6шт.

15

195013C1

ROD ASSY.

SHAFT - screen (Prior to SN JJC00322001)

1шт.

15

1968541C1

SHAFT - screen (SN JJC00322001 and after)

1шт.

Ref. 15A - Should be 1968540C1

1шт.

16

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

2шт.

17

195-104

WASHER,3/8"

- flat, 13/32 x 1 x 3/64 inch (Use with 195013C1)

1шт.

17

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch (Use with 1968541C1)

2шт.

18

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, 3/8 inch

1шт.

19

1315542C1

FAN

- air (Prior to SN JJC00322001)

1шт.

19

1957588C1

FAN

- air (SN JJC00322001 and after)

1шт.

20

195000C1

DEFLECTOR

- screen

1шт.

21

1317839C1

SUPPORT ASSY.

SHROUD - screen

1шт.

Ref. 21 - Replaced by 1317839C2 Support, (2) 1338471C1 Braces (4) 632227R1 Screws & (4) 938017R1 Nuts

1шт.

22

161420C1

RING

- screen (Prior to SN JJC00322001)

1шт.

22

1338010C1

RING

- screen (SN JJC00322001 and after)

1шт.

23

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - tapping, No. 8 x 1/2 inch (Use with 161420C1)

8шт.

23

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - slotted pan head, No. 10 x 1/2 inch (With 1338010C1)

8шт.

24

161010C92

CIRCULAR BRUSH

BRUSH ASSEMBLY - screen, Includes: Ref. 25 - 28

1шт.

25

164616C1

ANGLE

CLIP - brush, short

1шт.

26

164617C1

ANGLE

CLIP - brush, long

1шт.

27

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

- machine, No. 10 NC x 1 inch

1шт.

28

19910R1

LOCK NUT

- hex, No. 10 NC

1шт.

31

661147R1

FLANGED BEARING

- bearing

4шт.
