Запчасти Case IH 1620 (2-046) - ENGINE FRONT COVER, D358 DIESEL ENGINE (01) - ENGINE

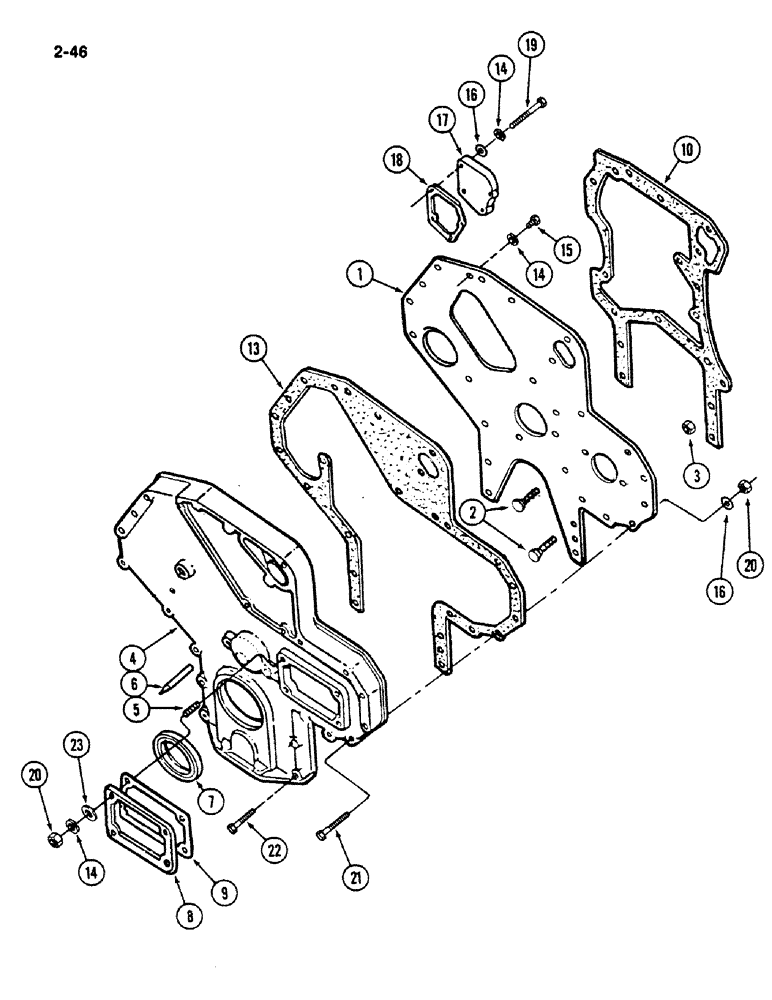

Схема запчастей Case IH 1620 - (2-046) - ENGINE FRONT COVER, D358 DIESEL ENGINE (01) - ENGINE
18
23
15
14
6
22
7
13
21
4
17
16
8
16
20
5
9
3
1
14
19
2
20
14
10

Артикул

Название

Примечание

Количество

1

3055996R11

PLATE ASSY.

PLATE ASSEMBLY - engine front, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

STUD - front engine plate

2шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

3139160R91

COVER

ASSEMBLY, Includes: Ref. 5 and 6

1шт.

5

3055242R1

STUD

- front engine cover

4шт.

6

3059231R1

INDICATOR

POINTER - timing

1шт.

3228133R93

SEAL KIT

- crankshaft front oil, see Figure 2-034, Includes: Ref. 7, retainer, O-ring, dowel pin, and the two straight pins

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - distance

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

- distance retainer

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin - Distance retainer M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN - straight, 4 x 32 mm

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN - straight, 4 x 28 mm

1шт.

8

3055140R1

COVER

- injection pump

1шт.

9

3138640R1

GASKET

- cover

1шт.

10

3055239R1

GASKET

- engine front plate

1шт.

13

3055994R1

GASKET

- engine front cover

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

15

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

7шт.

16

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Cone M8.2 ID x 16 OD x .9 Thk

7шт.

17

3136049R1

COVER ASSY

COVER - plate

1шт.

18

3132541R1

GASKET

- cover plate

1шт.

19

25235R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

10шт.

21

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

22

25232R1

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex, 5/16 NC x 2 inch

10шт.

23

21739R1

WASHER

- flat, 11/32 x 9/16 x 3/64 inch

4шт.

Выбрано товаров: 27
