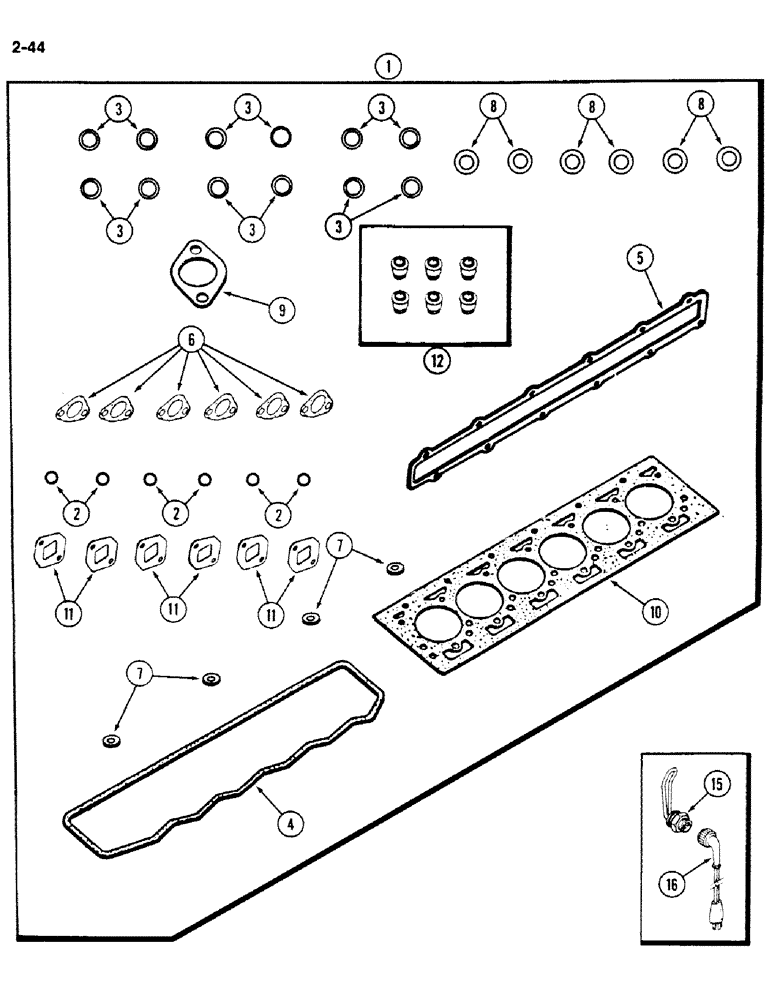

Запчасти Case IH 1620 (2-044) - GASKET KITS, D358 DIESEL ENGINE, REPLACEMENT ENGINE ASSEMBLY, ENGINE SHORT BLOCK ASSEMBLY (01) - ENGINE

1

3136801R98

GASKET KIT

- cylinder head, Includes: Ref. 2 - 12

1шт.

2

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

3

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - packing

12шт.

4

3138688R1

GASKET

- valve housing cover

1шт.

5

3055399R1

MANIFOLD GASKET

- intake manifold

1шт.

6

3055306R1

GASKET

- water collector pipe

6шт.

7

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- disc valve housing cover

4шт.

8

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing

6шт.

9

3132143R1

GASKET

- water outlet

1шт.

9

3059672R1

GASKET

- water outlet (Not used this application)

1шт.

10

3228019R1

CYLINDER HEAD GASKET

- cylinder head

1шт.

11

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.

12

3218399R91

GASKET KIT

PACKAGE - valve stem seal, package of 6

2шт.

3228420R92

ENGINE ASSEMBLY

REPLACEMENT ENGINE ASSEMBLY - D358 engine complete (Consists of all engine parts except the following: alternator, fan and belt, muffler, and exhaust pipe)

1шт.

3144506R93

SKELETON ENGINE

BLOCK ASSEMBLY - D358 engine short (Consists of camshaft, connecting rods and bearings, cylinder block, crankshaft and bearings, sleeves, pistons, pin and rings, valve tappets)

1шт.

71151C91

HEATER

KIT - coolant, engine short block assembly, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - heater, engine short block assembly

1шт.

16

71150C1

CABLE

CORD - element, engine short block assembly

1шт.
