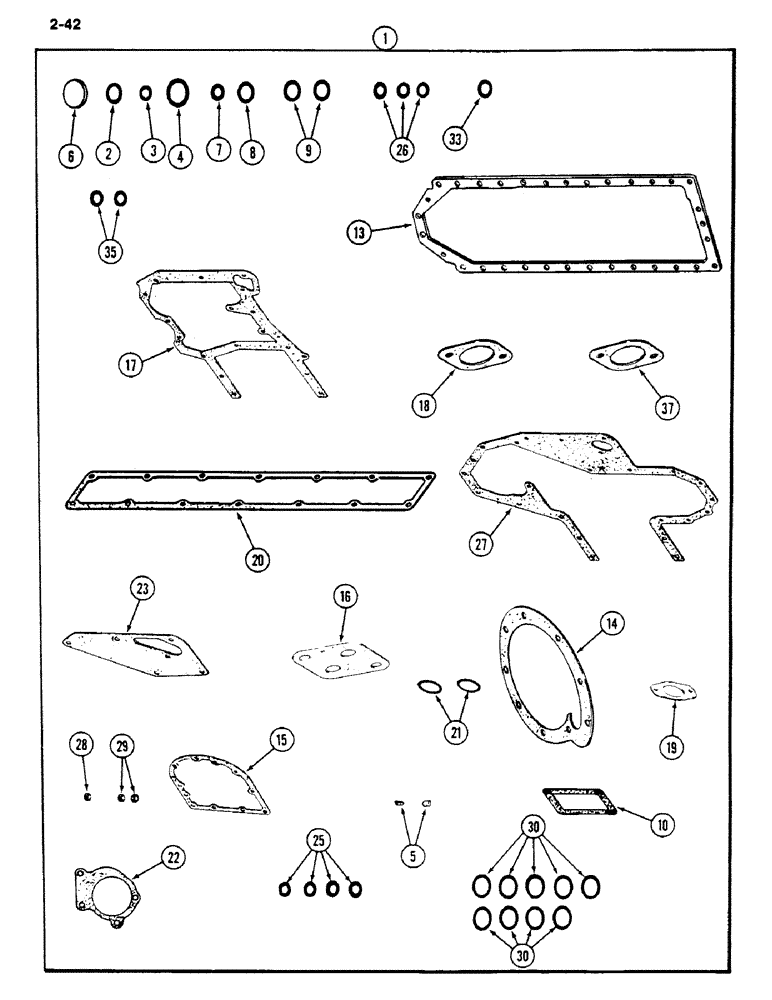

Запчасти Case IH 1620 (2-042) - GASKET KITS, D358 DIESEL ENGINE (01) - ENGINE

1

3136815R99

GASKET KIT

- cylinder block, Includes: Ref. 2 - 37

1шт.

2

3058431R1

COPPER WASHER

GASKET - relief valve plug

1шт.

3

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

4

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

5

714868R1

SEALING STRIP

- sealing

2шт.

6

41-3044

PLUG,Exp, 2 3/4"

- expansion

1шт.

7

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing M10 x 13.5 x 1

1шт.

8

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

9

3138687R1

RING

- packing

2шт.

10

3138640R1

GASKET

- injection pump cover

1шт.

13

3055162R1

OIL PAN GASKET SET

- oil pan

1шт.

13

3055987R1

OIL PAN GASKET SET

- oil pan (Not used this application)

1шт.

14

3055177R1

GASKET

- water pump

1шт.

15

3055215R1

GASKET

- crankshaft seal retainer

1шт.

16

3055237R1

GASKET

- oil filter base

1шт.

17

3055239R1

GASKET

- front plate

1шт.

18

3138639R1

GASKET

- breather

1шт.

19

3055384R1

GASKET

- fuel injection pump

1шт.

20

3055392R2

GASKET

- side cover

1шт.

21

3055952R2

O-RING

RING - oil pump sealing

2шт.

22

3055961R1

GASKET

- oil pump

1шт.

23

3055999R1

GASKET

- water pump carrier

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

4шт.

26

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

3шт.

27

3055994R1

GASKET

- front cover

1шт.

28

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - tachometer drive (Not used this application)

1шт.

29

3146575R1

NUT

- seal

2шт.

30

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

9шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

35

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8 inch

2шт.

37

3218792R2

GASKET

- oil filler tube

1шт.
