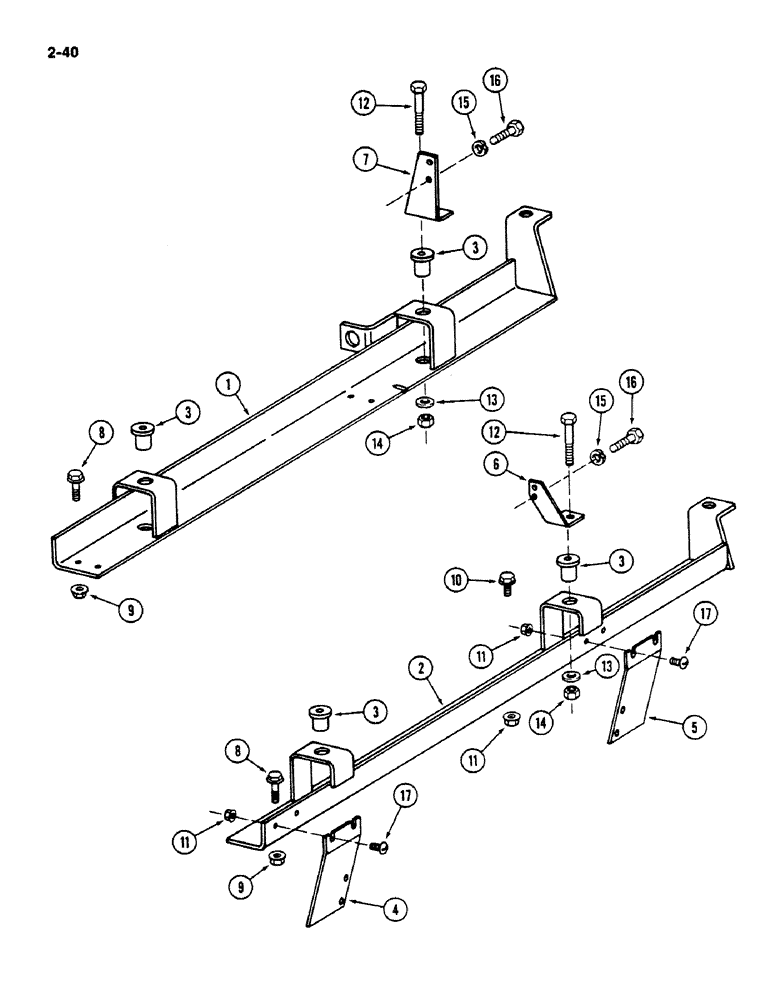

Запчасти Case IH 1620 (2-040) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

1

194907C2

RAIL ASSY.

RAIL ASSEMBLY - engine left

1шт.

2

194906C1

RAIL ASSY.

RAIL ASSEMBLY - engine right

1шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine, front and rear

4шт.

4

194908C1

SUPPORT

- engine rail, left

1шт.

5

194909C1

SUPPORT

- engine rail, right

1шт.

6

194910C1

SUPPORT

- engine front, right

1шт.

7

194911C1

SUPPORT

- engine front, left

1шт.

8

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex head flange, 1/2 NC x 1 inch

8шт.

9

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

8шт.

10

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex head flange, 3/8 NC x 3/4 inch

2шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

10шт.

12

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

13

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

14

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.
