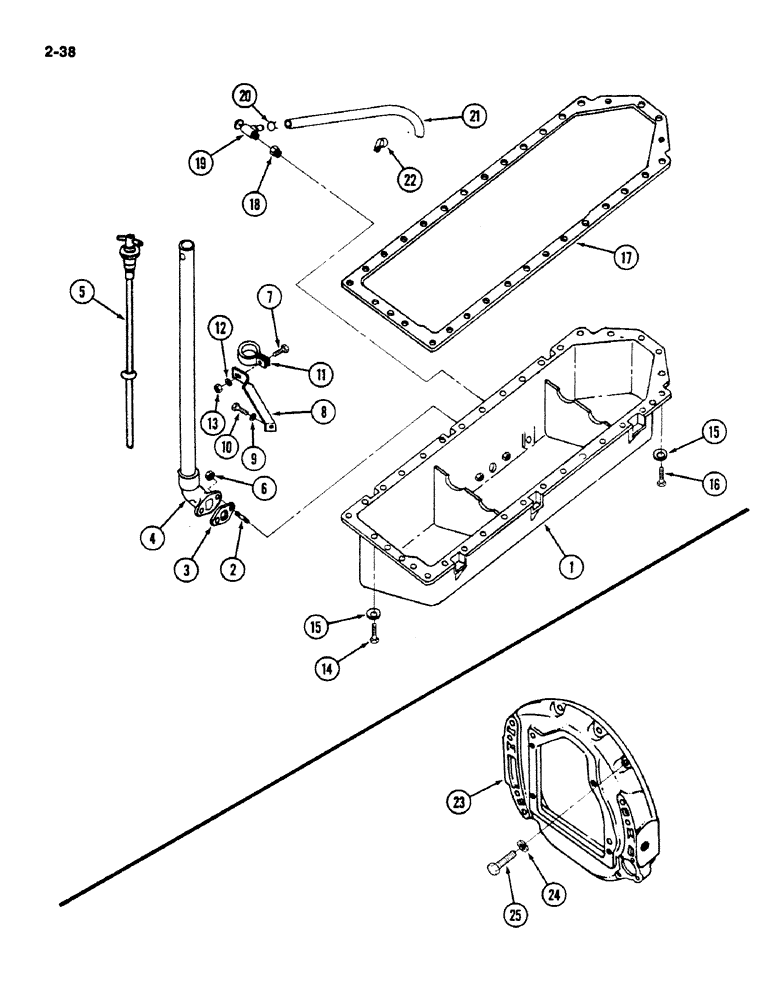

Запчасти Case IH 1620 (2-038) - OIL PAN AND FILLER TUBE, D358 DIESEL ENGINE, FLYWHEEL HOUSING (01) - ENGINE

1

3218786R91

PAN, ENGINE OIL

PAN ASSEMBLY - oil, Includes: Ref. 2

1шт.

2

934771R1

STUD,M8 x 30, 8.8

- M8 x 30 mm, Class 8.8

2шт.

3

3218792R2

GASKET

- oil filler tube

1шт.

4

3136009R11

TUBE,813 mm Length

- oil filler

1шт.

5

3136011R1

DIPSTICK

GAUGE - oil level

1шт.

6

3146575R1

NUT

- seal, M8

2шт.

7

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

8

3136010R2

BRACKET

- oil filler tube

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- 5/16 NC x 5/8 inch

4шт.

11

3132818R1

CLAMP

- oil filler tube

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

14

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

15

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Truncated cone M8.2 ID x 16 OD x .9 Thk

33шт.

16

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- 5/16 NC x 11/16 inch

28шт.

17

3055162R1

OIL PAN GASKET SET

- oil pan

1шт.

18

175778H1

ADAPTER

- 1/2 to 3/8 inch pipe

1шт.

19

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - oil drain hose

1шт.

20

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP - spring wire hose, No. 15, Type E

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - crankcase oil drain, 36 inch (Order S118576 and, Serial Range: cut-length)

1шт.

22

406381C1

CLIP

- oil drain hose

2шт.

23

3228128R1

HOUSING

- flywheel

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Flywheel housing 1/2"

4шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Flywheel housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.
