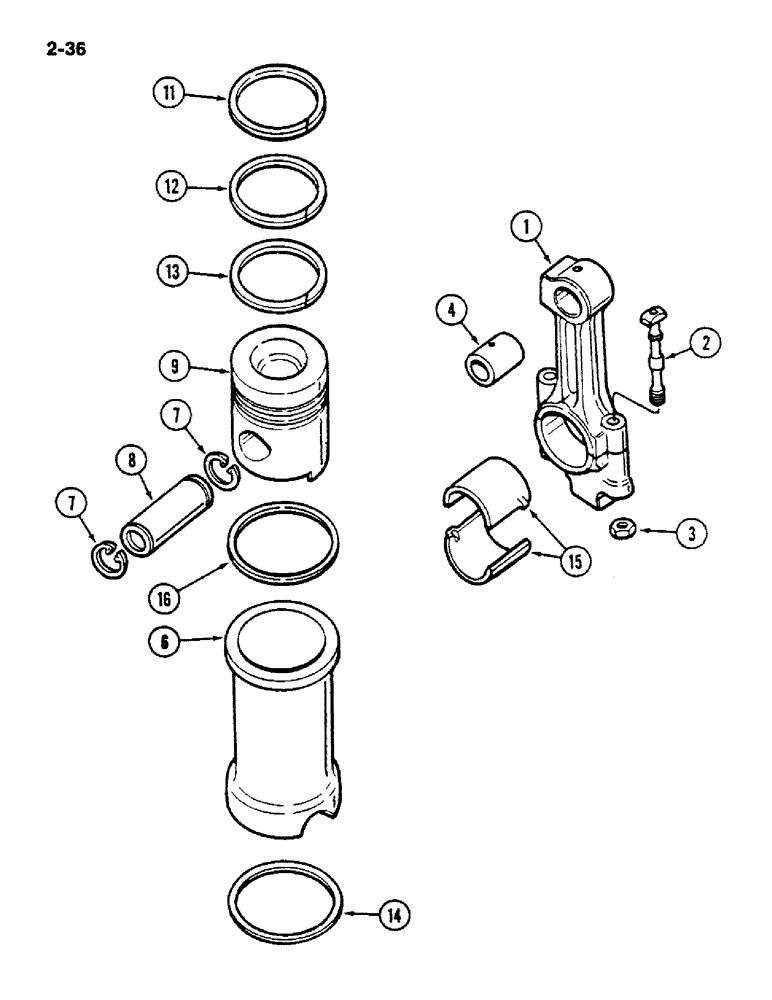

Запчасти Case IH 1620 (2-036) - CONNECTING RODS, PISTONS AND SLEEVES, D358 DIESEL ENGINE (01) - ENGINE

1

3055030R24

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 2 - 4

6шт.

2

3055033R11

BOLT

Assy - Connecting rod, Includes Ref 3

2шт.

3

3055034R1

NUT

- rod bolt

1шт.

4

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

- piston pin

1шт.

1806470C91

SLEEVE ASSY

CYLINDER SLEEVE AND PISTON ASSEMBLY - engine, Includes: Ref. 6 - 13

6шт.

6

3139592R4

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

933327R1

SNAP RING,M36, Int

RING - retaining

2шт.

8

3055217R2

PISTON PIN

PIN - piston

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

3139594R91

PISTON RING

RING SET - piston, Includes: Ref. 11 - 13

6шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, piston, top or first groove

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, piston, second groove

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, piston, third or bottom groove

1шт.

14

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve

6шт.

15

3055351R91

BEARING ASSY

BEARING ASSEMBLY - connecting rod, 2 halves, standard

6шт.

15

3218261R91

BEARING SET

ASSEMBLY - connecting rod, 2 halves, standard (Australia only)

6шт.

15

3136203R11

BEARING ASSY

BEARING ASSEMBLY - connecting rod, 2 halves, 0.25 mm undersize

6шт.

15

3136329R11

BEARING ASSY

BEARING ASSEMBLY - connecting rod, 2 halves, 0.50 mm undersize

6шт.

16

3218538R1

SHIM

- cylinder sleeve, 0.05 mm thick

1шт.

This shim is used to provide proper cylinder sleeve protrusion.

1шт.

16

3218539R1

SHIM

- cylinder sleeve, 0.1 mm thick

1шт.

This shim is used to provide proper cylinder sleeve protrusion.

1шт.

16

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

- cylinder sleeve, 0.25 mm thick

1шт.

This shim is used to provide proper cylinder sleeve protrusion.

1шт.

16

3218541R1

SHIM

- cylinder sleeve, 0.50 mm thick

1шт.

This shim is used to provide proper cylinder sleeve protrusion.

1шт.

16

3218542R1

SHIM

- cylinder sleeve, 0.8 mm thick

1шт.

This shim is used to provide proper cylinder sleeve protrusion.

1шт.
