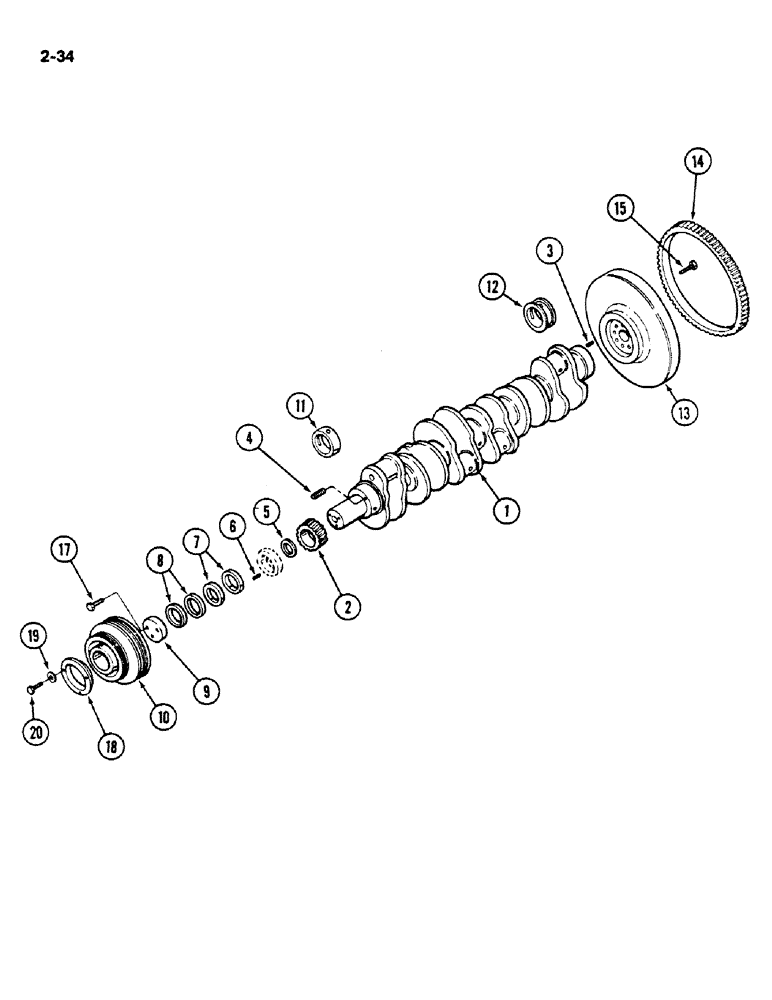

Запчасти Case IH 1620 (2-034) - CRANKSHAFT, FLYWHEEL AND BEARINGS, D358 DIESEL ENGINE (01) - ENGINE

1

3136036R95

CRANKSHAFT BEARING

ASSEMBLY - standard (Includes bearings), Includes: Ref. 2 - 4

1шт.

2

3055028R1

PINION

GEAR - crankshaft pinion, 33 teeth

1шт.

3

NLS

NO LONGER SERVICED

PIN - dowel, 3/8 x 7/8 inch

1шт.

4

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

3228133R93

SEAL KIT

- crankshaft front oil, Includes: crankshaft front oil seal, distance retainer, Ref. 5, 6 and the two straight pins

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - distance

1шт.

5

713778R1

O-RING,3mm Thk x 55mm ID

- spacer retainer

1шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin - Distance retainer M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN - straight, 4 x 32 mm

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN - straight, 4 x 28 mm

1шт.

7

3055152R91

RING

ELEMENT - spring tightener

2шт.

8

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- pressure

2шт.

9

3139161R1

WASHER

- pressure

1шт.

10

3139162R92

GROOVED PULLEY

PULLEY ASSEMBLY - dampener

1шт.

11

3055130R21

CRANKSHAFT BEARING

BEARING ASSEMBLY - crankshaft main, front and intermediate, 2 halves, standard

6шт.

11

3218263R91

CRANKSHAFT BEARING

BEARING ASSEMBLY - crankshaft main, front and intermediate, 2 halves, standard (Australia only)

6шт.

11

3056832R21

BEARING ASSY

BEARING ASSEMBLY - crankshaft main, front and intermediate, 2 halves, 0.25 mm, undersize

6шт.

11

3056877R21

BEARING ASSY

BEARING ASSEMBLY - crankshaft main, front and intermediate, 2 halves, 0.50 mm, undersize

6шт.

12

3055129R21

CRANKSHAFT BEARING

BEARING ASSEMBLY - crankshaft main, rear, 2 halves, standard

1шт.

12

3218266R91

CRANKSHAFT BEARING

BEARING ASSEMBLY - crankshaft main, rear, 2 halves standard (Australia only)

1шт.

12

3056820R11

BEARING ASSY

BEARING ASSEMBLY - crankshaft main, rear, 2 halves, 0.25 mm, undersize

1шт.

12

3056875R11

BEARING ASSY

BEARING ASSEMBLY - crankshaft main, rear, 2 halves, 0.50 mm, undersize

1шт.

13

3228113R91

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 14

1шт.

14

690252C1

GEAR

- ring

1шт.

Ref. 14, P/N 690252C1, if you lay this ring gear down with the chamfer side of teeth facing up, the chamfer should be on the right side of the tooth. If looking for ring gear with chamfer on left side of tooth, P/N is 341604R1.

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

- Flywheel

7шт.

17

870325R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch, Grade 8

3шт.

18

3144349R1

RING

- clamping

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

20

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

3шт.
