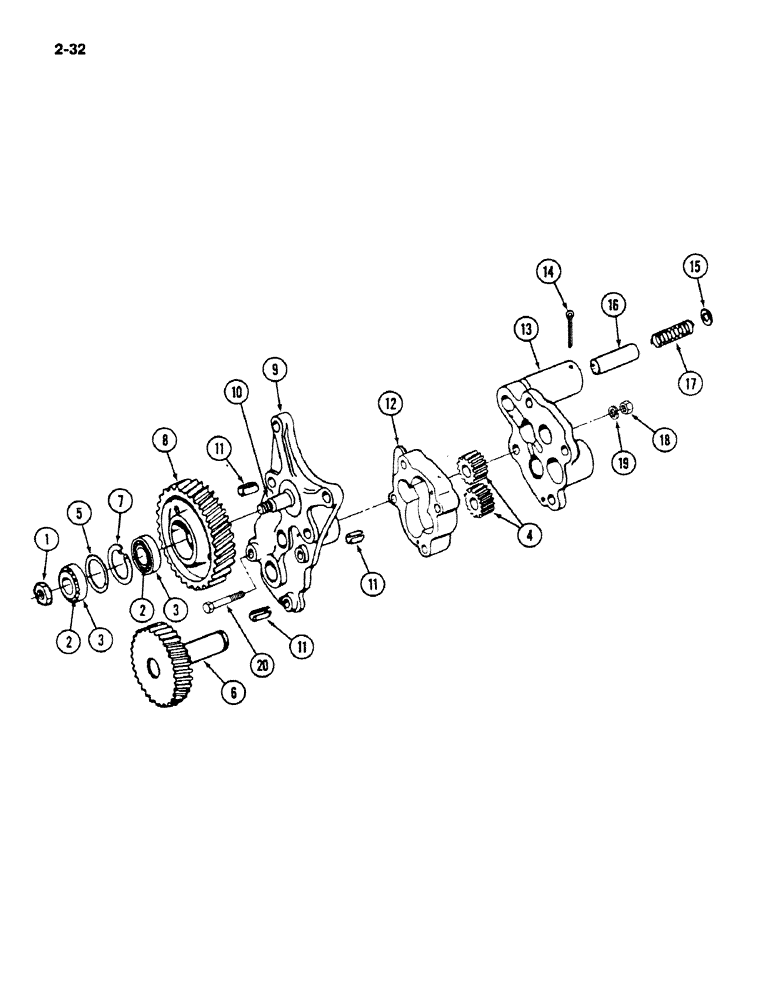

Запчасти Case IH 1620 (2-032) - ENGINE OIL PUMP, D358 DIESEL ENGINE (01) - ENGINE

3136433R95

ENGINE OIL PUMP

PUMP ASSEMBLY - lubricating oil

1шт.

1

3228141R1

LOCK NUT

- lock

1шт.

2

476045R91

ROLLER BEARING

CONE - bearing

2шт.

3

476046R1

BEARING, CUP

CUP - bearing

2шт.

4

3136450R91

GEAR-SET

GEAR SET - oil pump

1шт.

Does not have Key way. See SB S-2753

1шт.

5

3055292R1

WASHER

WASHER - lock

1шт.

6

313644R91

GEAR ASSEMBLY - drive

1шт.

Ref. 6 - On print 3136449R1

1шт.

7

933579R1

SNAP RING,M35, Int

1шт.

8

3056852R1

GEAR

- oil pump idler

1шт.

9

3136445R95

CARRIER

ASSEMBLY

1шт.

10

3055297R5

AXLE

- idler gear

1шт.

11

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

12

NSS

NOT SOLD SEPARAT

CASE - oil pump

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - oil pump

1шт.

14

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

15

3139620R1

SPRING WASHER

- spring

1шт.

16

3136081R1

VALVE

- piston relief

1шт.

17

3136264R1

SPRING

- pressure relief valve

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

20

25235R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

4шт.
