Запчасти Case IH 1620 (2-030) - OIL COOLER, OIL FILTER AND OIL PUMP, D358 DIESEL ENGINE (01) - ENGINE

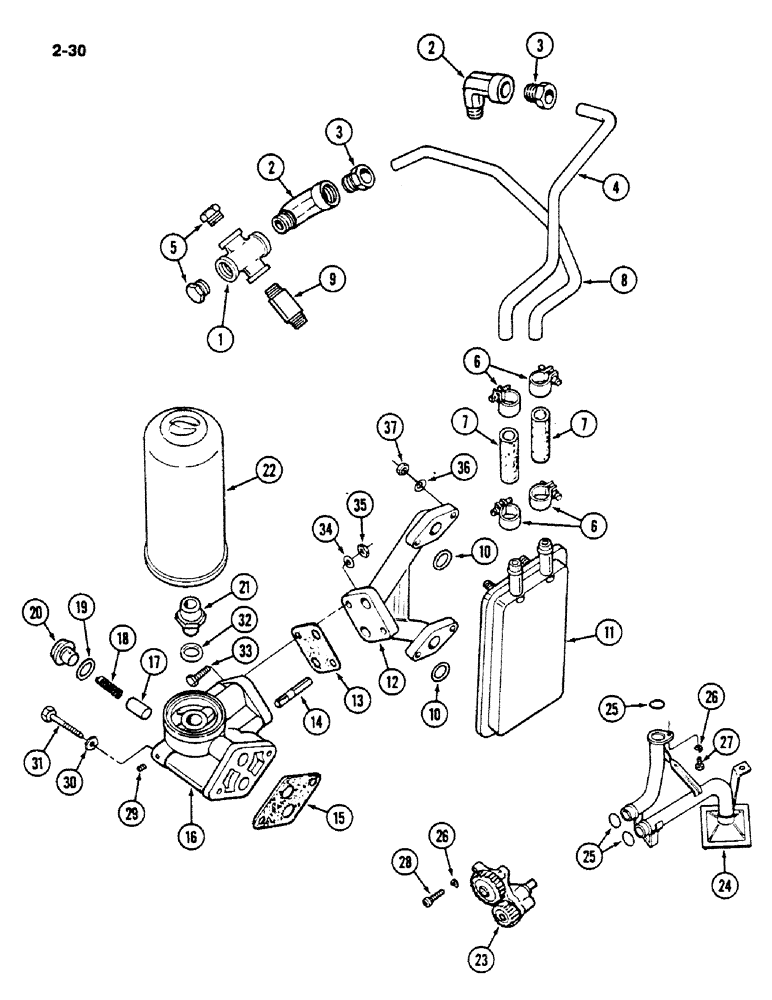

Схема запчастей Case IH 1620 - (2-030) - OIL COOLER, OIL FILTER AND OIL PUMP, D358 DIESEL ENGINE (01) - ENGINE
8
19
2
7
17
10
18
14
12
3
36
37
30
32
10
24
11
25
26
28
4
1
5
25
22
16
15
13
9
6
21
29
31
6
33
23
26
35
2
34
20
3
27
7

Артикул

Название

Примечание

Количество

1

142340

UNION

CROSS - pipe, 1/2 inch

1шт.

2

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

- 90 degree male pipe, 1/2 inch

2шт.

3

222-507

TUBE NUT,7/8"-18

NUT - tube, 7/8-18

2шт.

4

3144601R2

PIPE

- oil, Serial Range: cooler-thermostat

1шт.

5

444631

PLUG

- hex head pipe, 1/2-14

2шт.

6

3143364R1

CLAMP,19mm - 23mm

- hose

4шт.

7

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connecting 16.00 mm ID x 65.00 mm

2шт.

8

3218343R1

TUBE

PIPE - oil cooler to water pump carrier

1шт.

9

192076

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 x 2 inch

1шт.

10

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8 inch

2шт.

11

3228132R1

COOLER

ASSEMBLY - oil

1шт.

12

3136403R1

ELBOW

MANIFOLD - oil cooler

1шт.

13

3136404R1

GASKET

- oil cooler manifold

1шт.

14

712078R1

STUD

- oil filter base

1шт.

15

3055237R1

GASKET

- oil filter base

1шт.

16

3144599R1

BASE

- oil filter

1шт.

17

251400R1

VALVE

- oil cooler relief

1шт.

18

279163R1

SPRING

- relief valve

1шт.

19

3058431R1

COPPER WASHER

RING - relief valve plug packing

1шт.

20

3138581R1

PLUG

- relief valve

1шт.

21

3136308R1

CONNECTOR, ELEC

CONNECTOR - threaded

1шт.

22

528250R1

FILTER

- oil

1шт.

23

REF

INSTRUCTION

PUMP ASSEMBLY - lubricating oil, see Figure 2-032

1шт.

24

3136014R94

PIPE

- oil pressure and suction

1шт.

25

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pressure and suction pipe

3шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

27

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

28

21892R1

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head cap, 5/16 NC x 1 inch

4шт.

29

444688

PLUG

- hex socket head, 1/8-27

1шт.

30

3144513R1

SPRING WASHER

WASHER - spring

2шт.

31

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8-16 NC x 4 inch, G5

2шт.

32

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing, Connector M18 x 24 x 1.5

1шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

1шт.

34

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

35

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

2шт.

36

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Truncated cone M8.2 ID x 16 OD x .9 Thk

4шт.

37

9635082

NUT,5/16" - 18, Gr 5

4шт.

Выбрано товаров: 37
