(2-026) - CYLINDER BLOCK ASSEMBLY, D358 DIESEL ENGINE (CONTD)

Запчасти Case IH 1620 (2-026) - CYLINDER BLOCK ASSEMBLY, D358 DIESEL ENGINE (CONTD) (01) - ENGINE

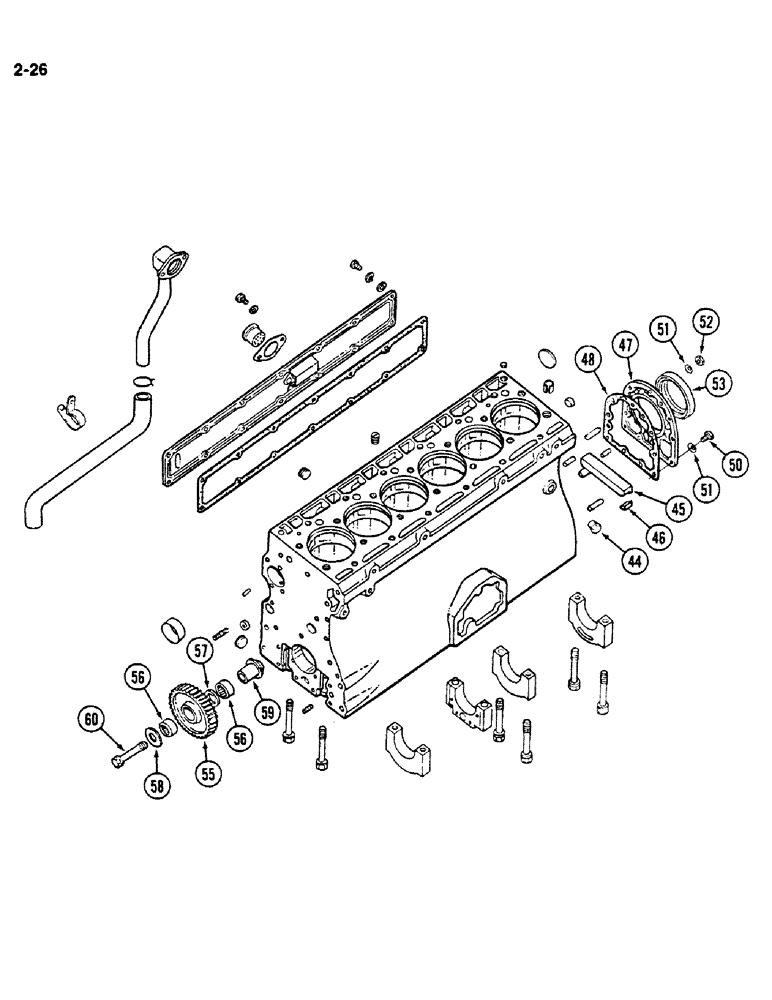

Схема запчастей Case IH 1620 - (2-026) - CYLINDER BLOCK ASSEMBLY, D358 DIESEL ENGINE (CONTD) (01) - ENGINE
48
51
60
58
53
56
51
59
57
45
55
52
46
47
50
56
44
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

44

20990R1

PLUG

- hex, 3/8-18 inch PT

1шт.

45

3055214R1

SUPPORT

STRIP - sealing, block

1шт.

46

714868R1

SEALING STRIP

GASKET - strip

2шт.

47

3055216R1

RETAINER

- seal

1шт.

48

3055215R1

GASKET

- retainer

1шт.

50

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

51

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

WASHER - flat, 8 x 19 x 3 mm

9шт.

52

9635082

NUT,5/16" - 18, Gr 5

1шт.

53

3138701R91

SEAL

SEAL - oil, rear

1шт.

55

3055043R3

PINION

GEAR - idler

1шт.

56

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

BEARING ASSEMBLY - needle

2шт.

57

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - spacer

1шт.

58

3055372R1

DISC

RING - wear, gear

1шт.

59

3055373R1

CARRIER

- gear, idler

1шт.

60

3055374R2

BOLT

BOLT - carrier, gear

1шт.
