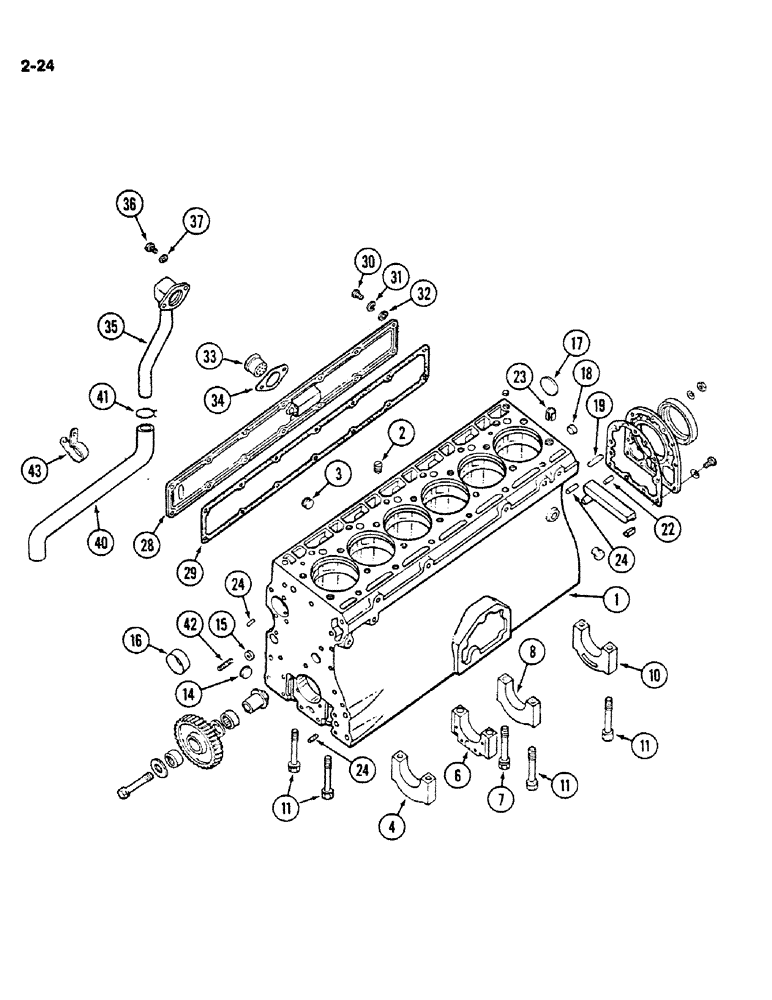

Запчасти Case IH 1620 (2-024) - CYLINDER BLOCK ASSEMBLY, D358 DIESEL ENGINE (01) - ENGINE

3136194R96

HOUSING

BLOCK ASSEMBLY - cylinder, engine, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

2

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

3

143992

PLUG,Slotted, 1/4" NPT

- hex socket, 1/4-18 inch PT

5шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing, front (Order 3136194R96)

1шт.

3144438R91

BEARING ASSY

CAP KIT - bearing, center, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - bearing, center (Order 3136194R96)

1шт.

3144438R91

BEARING ASSY

CAP KIT - bearing, intermediate, Includes: Ref. 8 and 9

4шт.

8

NSS

NOT SOLD SEPARAT

CAP - bearing, intermediate (Order 3136194R96)

4шт.

9

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

2шт.

3144436R91

CRANKSHAFT BEARING

CAP KIT - bearing, rear, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - bearing, rear (Order 3136194R96)

1шт.

11

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

14шт.

14

933573R1

PLUG,M32, Tapered

- cup, 32 mm

3шт.

15

30591R1

PLUG,M25, Tapered

- cup

2шт.

16

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING - camshaft, front

1шт.

16

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING - camshaft, intermediate and rear

3шт.

17

172602

SUPPORT

- expansion, 2-3/4 inch

1шт.

18

3136004R1

COVER

PLUG - cup, 10 mm (If equipped)

1шт.

19

3055270R1

STUD

- rear

1шт.

22

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

23

3055007R1

BUSHING

PIN - slotted

2шт.

24

141242

DOWEL

PIN - dowel, 3/8 x 7/8 inch

4шт.

28

3055730R21

COVER

- side

1шт.

29

3055392R2

GASKET

- cover, side

1шт.

30

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

13шт.

31

129-20

NUT,#1-72

WASHER - lock, 5/16 inch

14шт.

32

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 21/64 x 3/4 x 3/32 inch

14шт.

33

3055324R92

HYDRAULIC OIL FILTER

ELEMENT - breather, oil

1шт.

34

3138639R1

GASKET

- breather

1шт.

35

3218338R91

TUBE

BREATHER - oil

1шт.

36

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

2шт.

37

3136506R1

RING

- packing

2шт.

40

195898C1

HOSE

- breather, 70-7/8 inch

1шт.

41

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

spring wire #24, 1.06/2.00 Type F Worm

1шт.

42

3055989R1

STUD

- front

1шт.

43

299277C91

CLIP

CLAMP - hose

1шт.
