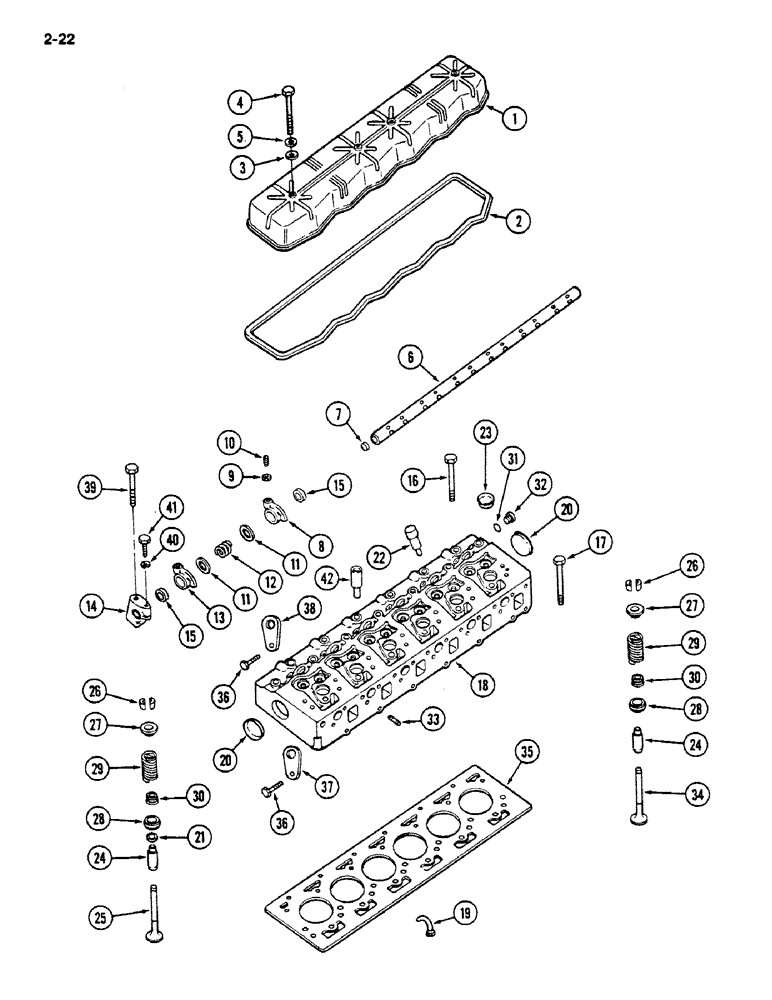

Запчасти Case IH 1620 (2-022) - CYLINDER HEAD ASSEMBLY, D358 DIESEL ENGINE (01) - ENGINE

1

3132840R91

COVER

ASSEMBLY - valve housing

1шт.

2

3138688R1

GASKET

- valve housing cover

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve housing cover bolt

1шт.

4

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

4шт.

5

3138637R1

CUP WASHER

WASHER - valve housing cover

4шт.

6

3055071R31

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 7

1шт.

7

933565R1

PLUG,M14, Conical

- cup

2шт.

3132292R92

ROCKER

ARM KIT - intake rocker, 14mm, Includes: Ref. 8 - 10

6шт.

8

NSS

NOT SOLD SEPARAT

ARM - rocker

1шт.

9

30168R1

NUT,M10, Cl 10

- rocker arm adjusting screw

1шт.

10

3132137R1

ADJUSTMENT SCREW

Rocker arm

1шт.

11

3055669R1

THRUST WASHER

- thrust, rocker arm

12шт.

12

3055075R2

SPRING

- rocker arm

6шт.

3132293R92

ROCKER

ARM KIT - exhaust rocker, Includes: Ref. 9, 10 and 13

6шт.

13

NSS

NOT SOLD SEPARAT

ARM - rocker

1шт.

14

3055077R6

SUPPORT

BRACKET - rocker shaft

7шт.

15

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

- spacer

11шт.

16

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- hex, 9/16 NC x 5 inch, Grade 8

12шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - hex, 9/16 NC x 5-3/4 inch, Grade 8

14шт.

18

3055368R98

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (New), Includes: Ref. 19 - 24

1шт.

19

3055224R11

CINTRE

PIPE ASSEMBLY - cooling

6шт.

20

934003R1

PLUG,M52, Conical

- expansion, cup, 52 mm

2шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat, standard

6шт.

21

3132361R1

INSERT

- exhaust valve seat, 0.004 inch oversize

1шт.

21

3132362R1

VALVE SEAT

INSERT - exhaust valve seat, 0.016 inch oversize

1шт.

22

3132025R1

INSERT

- nozzle holder

6шт.

23

30591R1

PLUG,M25, Tapered

- expansion, cup, 1 inch

6шт.

24

3055022R2

VALVE GUIDE

GUIDE - valve stem

12шт.

25

3055056R2

STD EXHAUST VALVE

VALVE - exhaust

6шт.

26

3055057R91

ROCKER ARM COTTER

LOCK - valve spring

24шт.

27

3055058R2

SPRING CUP

CAP - valve spring retainer

12шт.

28

3055059R91

CAP

ROTATOR - valve

12шт.

29

3136000R1

VALVE SPRING

SPRING - valve

12шт.

30

3218399R91

GASKET KIT

SEAL KIT - valve stem, pkg of 6

2шт.

31

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

32

934259R1

PLUG,Hex, M10 x 1

Filler and drain Hex, M10 x 1

1шт.

33

3055663R1

STUD

- exhaust manifold

12шт.

34

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

6шт.

35

3228019R1

CYLINDER HEAD GASKET

- cylinder head

1шт.

36

NLS

NO LONGER SERVICED

- hex, 3/4 NC x 1-1/8 inch

2шт.

37

3055370R1

STIRRUP

SHACKLE - engine mounting front

1шт.

38

3055369R1

PLATE

SHACKLE - engine mounting right

1шт.

39

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

7шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

41

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch

7шт.

42

3132764R1

ADAPTER

- cover

4шт.
