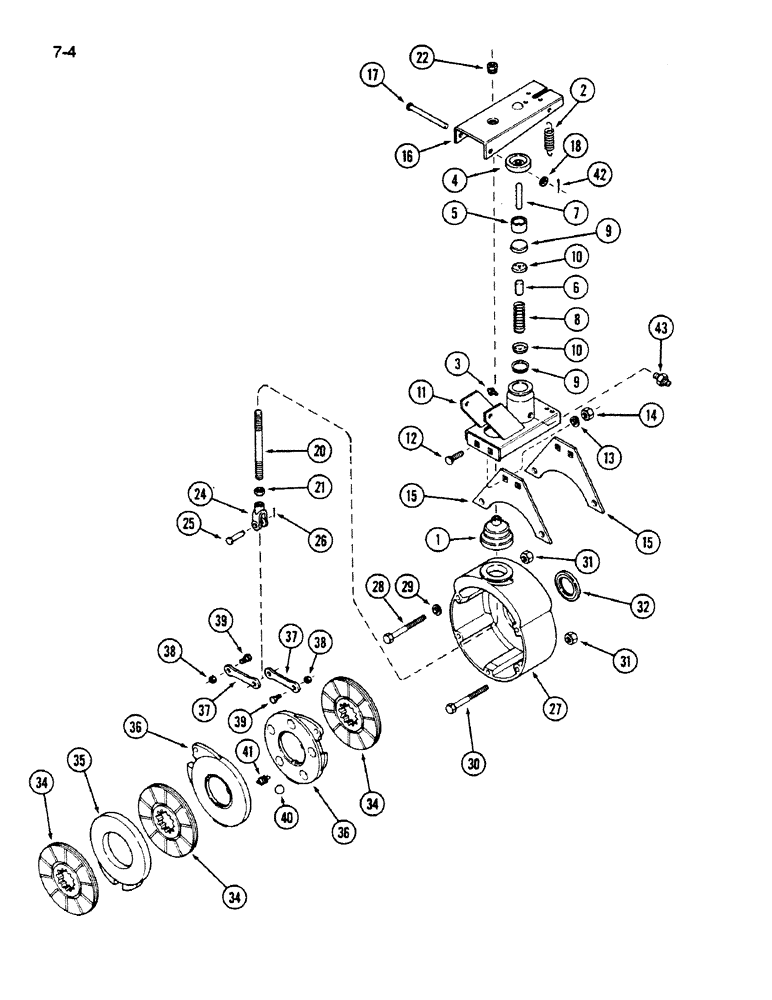

Запчасти Case IH 1620 (7-004) - MASTER BRAKES (5.1) - BRAKES

1

381699R1

BOOT

- brake housing

2шт.

2

168567C1

SPRING

- brake lever return

2шт.

3

660901R1

VALVE

- bleeder

2шт.

4

662620R1

COVER

BOOT - brake cylinder

2шт.

Part of Cylinder Repair Kit P/N 1288942C92

1шт.

5

662616R1

PISTON

- brake cylinder

2шт.

Part of Cylinder Repair Kit P/N 1288942C92

1шт.

6

184304C1

SPACER

- brake cylinder piston

2шт.

7

662618R1

PLUNGER

- brake cylinder piston

2шт.

8

84940C1

SPRING

- brake cylinder piston

2шт.

Part of Cylinder Repair Kit P/N 1288942C92

1шт.

9

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

4шт.

Part of Cylinder Repair Kit P/N 1288942C92

1шт.

10

85105C1

EXPANDER

- wheel cylinder cup

4шт.

Part of Cylinder Repair Kit P/N 1288942C92

1шт.

11

1329741C2

SUPPORT

- brake cylinder, left

1шт.

11

1329742C1

SUPPORT ASSY.

SUPPORT - brake cylinder, right

1шт.

12

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

8шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

15

177688C1

HANGER

- brake cylinder

4шт.

16

1327565C1

LEVER

- brake cylinder

2шт.

17

28607R1

HEADED PIN,3/8" x 4"

PIN - headed, 3/8 x 4 inch

2шт.

18

25709R1

WASHER

- 13/32 x 13/16 x 3/64 inch

2шт.

20

1321947C1

ROD

- brake pull

2шт.

21

129-125

NUT,1/2"-20, G5

2шт.

22

1321948C1

NUT

- brake pull rod

2шт.

24

1321946C1

CLEVIS

YOKE - brake operating rod

2шт.

25

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16 x 1-3/16 inch

2шт.

26

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 5/8 inch

2шт.

27

184177C2

HOUSING

- wheel brake

2шт.

28

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

30

113-346

BOLT,Hex, 7/16" - 14 x 5", Gr 5

- hex, 7/16 x 5 inch

6шт.

31

129-104

NUT,7/16"-14, G5

10шт.

32

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing

2шт.

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - wheel (Order components), Includes: Ref. 34 - 41

2шт.

34

121961C92

CLUTCH

DISC - middle

3шт.

35

188878C1

DISC

- intermediate

1шт.

36

366182R93

CLUTCH DISC

DISC ASSEMBLY - actuating

1шт.

37

357113R2

LINK

- actuating

2шт.

38

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

39

A30898

STEP BOLT

STUD - link

2шт.

40

17028R1

BALL,7/8" Dia

5шт.

41

619731C1

SPRING

- extension

3шт.

42

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

43

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR - straight, 7/16-20 thread x 1/8 inch PT

2шт.

1288942C92

KIT

REPAIR KIT - cylinder, Includes: Ref. 4, 5, 8, 9 and 10

1шт.
