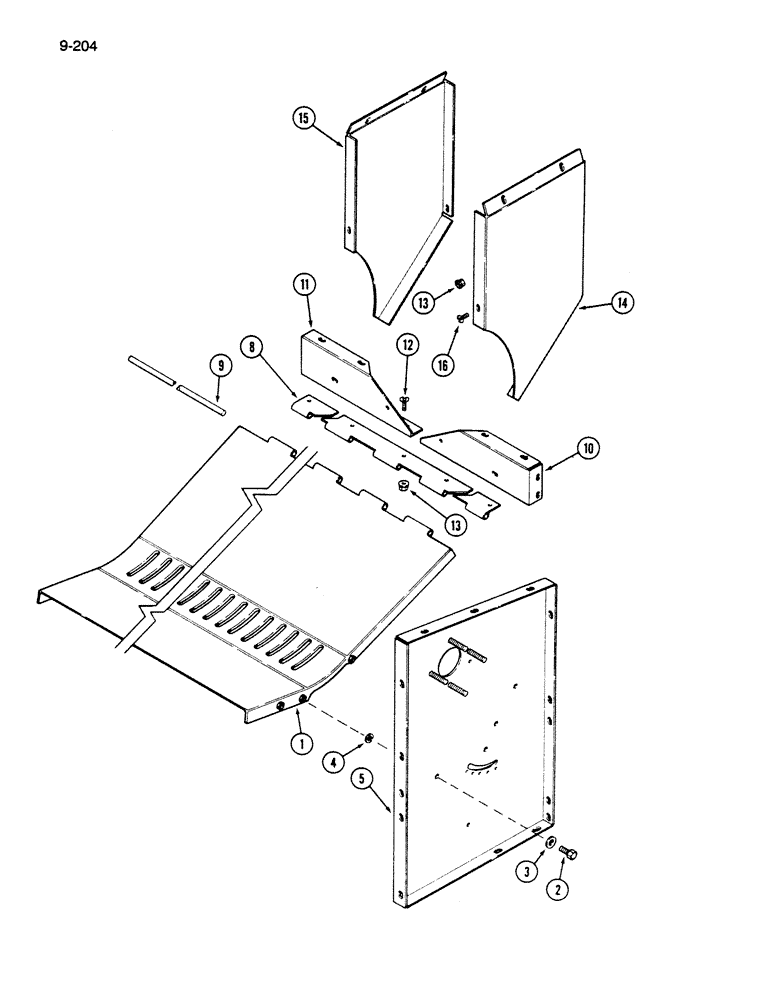

Запчасти Case IH 1620 (9-204) - STRAW CHOPPER DEFLECTOR AND SUPPORTS, NOT NORTH AMERICA (19) - STRAW SPREADER & CHOPPER

1

1311861C1

BOTTOM

DEFLECTOR - chopper

1шт.

2

30043R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, M12 x 30 mm

6шт.

3

21403R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

6шт.

4

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

6шт.

5

REF

INSTRUCTION

SUPPORT - chopper, see Figure 9-202

2шт.

8

181351C1

HINGE

- deflector

1шт.

9

589386R1

ROD

- pivot

1шт.

10

181354C1

SUPPORT

- cage, right

1шт.

11

181353C1

SUPPORT

- cage, left

1шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

7шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

15шт.

14

182942C2

BRACKET

DEFLECTOR - right

1шт.

15

182941C2

BRACKET

DEFLECTOR - left

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.
