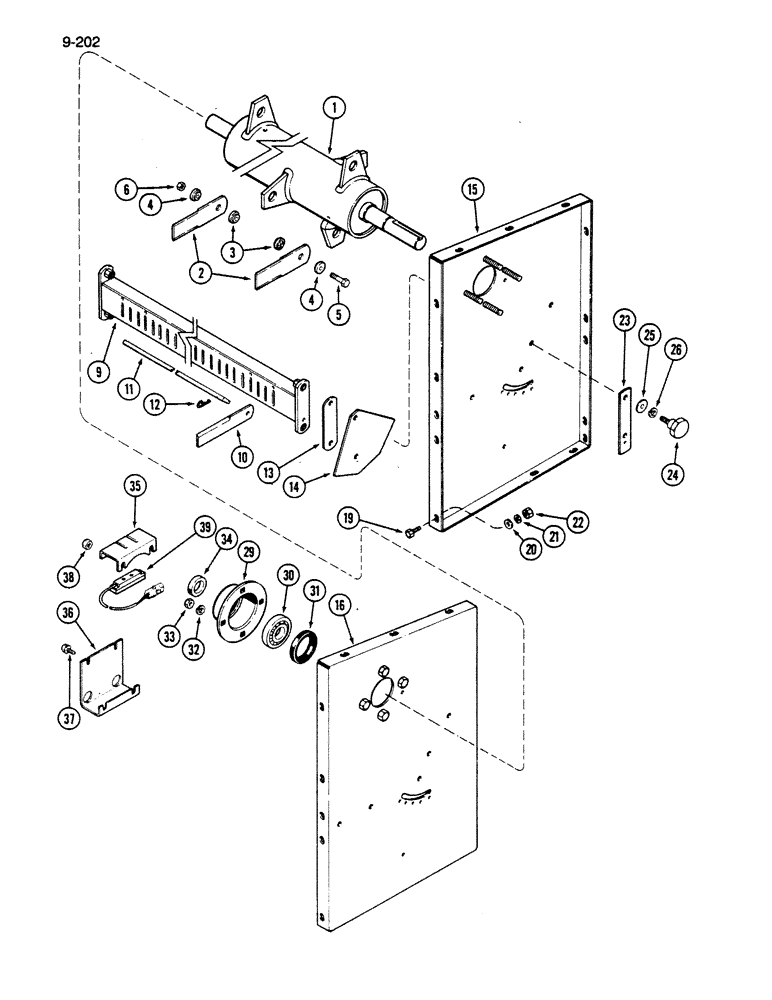

Запчасти Case IH 1620 (9-202) - STRAW CHOPPER ROTOR, NOT NORTH AMERICA (19) - STRAW SPREADER & CHOPPER

1

1311854C91

ROTOR

ASSEMBLY - chopper

1шт.

2

1322241C1

BLADE

- rotor, Includes: Ref. 3 - 6

36шт.

3

1322242C1

SPACER

- blade

36шт.

4

1322243C1

BUSHING

- pivot

36шт.

5

30025R1

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, M10 x 50 mm, Grade 10.9

18шт.

6

905262R1

NUT,M10 x 1.5, Cl 10

NUT - hex, M10

18шт.

1311858C91

BAR

ASSEMBLY - knife, complete, Includes: Ref. 9 - 12

1шт.

9

1311859C1

SUPPORT

BAR ASSEMBLY - knife, Includes: Ref. 10 -12

1шт.

10

1322233C1

KNIFE

BLADE - concave

33шт.

11

1311860C1

ROD

- blade, knive

33шт.

12

1322252C1

HAIR PIN COTTER

- quick

1шт.

13

1322248C1

BLOCK

SHIM - bar

2шт.

14

1957329C1

BLOCK

SHIM - locking, bar

2шт.

15

1311856C1

SUPPORT

- chopper, right

1шт.

16

1311857C1

SUPPORT

- chopper, left

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

30шт.

20

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

30шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

30шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

30шт.

23

1322249C1

LINK

ARM - control

2шт.

24

1322232C1

BUTTON,Screw, M12 x 45mm

SCREW - adjusting

4шт.

Ref. 24, P/N 1322251C91, is collar assy. The bearing is P/N 96328C1.

1шт.

25

21403R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

4шт.

26

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

29

936130R1

FLANGE

- bearing, shaft

2шт.

30

1322228C91

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

ASSEMBLY - shaft

2шт.

31

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

- seal, bearing

2шт.

32

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

8шт.

33

30169R1

NUT,M12 x 1.75, Cl 10

- hex, M12, Grade 10

8шт.

34

1322251C91

COLLAR

COLLAR ASSEMBLY - locking

2шт.

35

181209C1

SUPPORT

- sensor

1шт.

36

181208C1

SUPPORT

COVER - shaft

1шт.

37

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.

38

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

4шт.

39

245410C1

TRANSMITTER

SWITCH ASSEMBLY - monitor

1шт.
