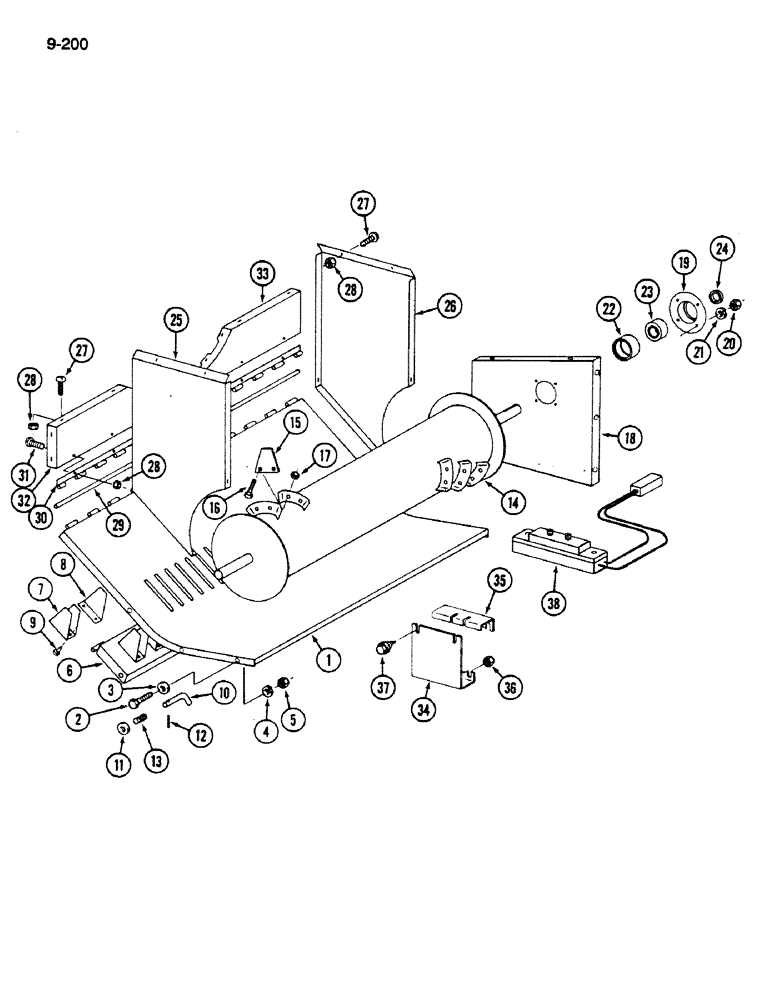

Запчасти Case IH 1620 (9-200) - STRAW CHOPPER ROTOR AND CONCAVE (19) - STRAW SPREADER & CHOPPER

1

182937C2

PLATE

DEFLECTOR - chopper

1шт.

2

140483H0

BOLT - hex, 3/8 NC x 1-1/4 inch, Grade 8

6шт.

3

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

6шт.

6

174701C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - chopper, Includes: Ref. 7 - 9

1шт.

7

174680C1

BLADE

- concave

9шт.

8

174681C1

BLADE

- concave

1шт.

9

104236

RIVET,4.76mm OD x 15.88mm L

(Replaced 104235 ) FH, 3/16" x 5/8"

20шт.

10

174689C1

PIN

- knife

2шт.

11

A41155

WASHER

- flat, 15/32 x 3/4 x 3/64 inch

2шт.

12

19371R1

PIN,1/8" x 3/4", Coiled

2шт.

13

352105R1

SPRING

- pin

2шт.

14

174639C91

ROTOR

- chopper

1шт.

15

197124C1

PACKAGE

BLADE - rotor (Set of 2)

1шт.

16

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

18

1303040C3

SUPPORT

- bearing, left

1шт.

18

1303041C3

SUPPORT

- bearing, right (Shown)

1шт.

19

936130R1

FLANGE

- bearing

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

22

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

- bearing

2шт.

23

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - shaft

2шт.

24

455112R11

COLLAR

- locking

2шт.

25

182941C2

BRACKET

DEFLECTOR - left

1шт.

26

182942C2

BRACKET

DEFLECTOR - right

1шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

8шт.

28

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

15шт.

29

589386R1

ROD

- pivot

1шт.

30

181351C1

HINGE

- deflector

1шт.

31

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

7шт.

32

181353C1

SUPPORT

- cage, left

1шт.

33

181354C1

SUPPORT

- cage, right

1шт.

34

181208C1

SUPPORT

COVER - shaft

1шт.

35

181209C1

SUPPORT

- sensor

1шт.

36

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

4шт.

37

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.

38

245410C1

TRANSMITTER

SWITCH - monitor

1шт.
