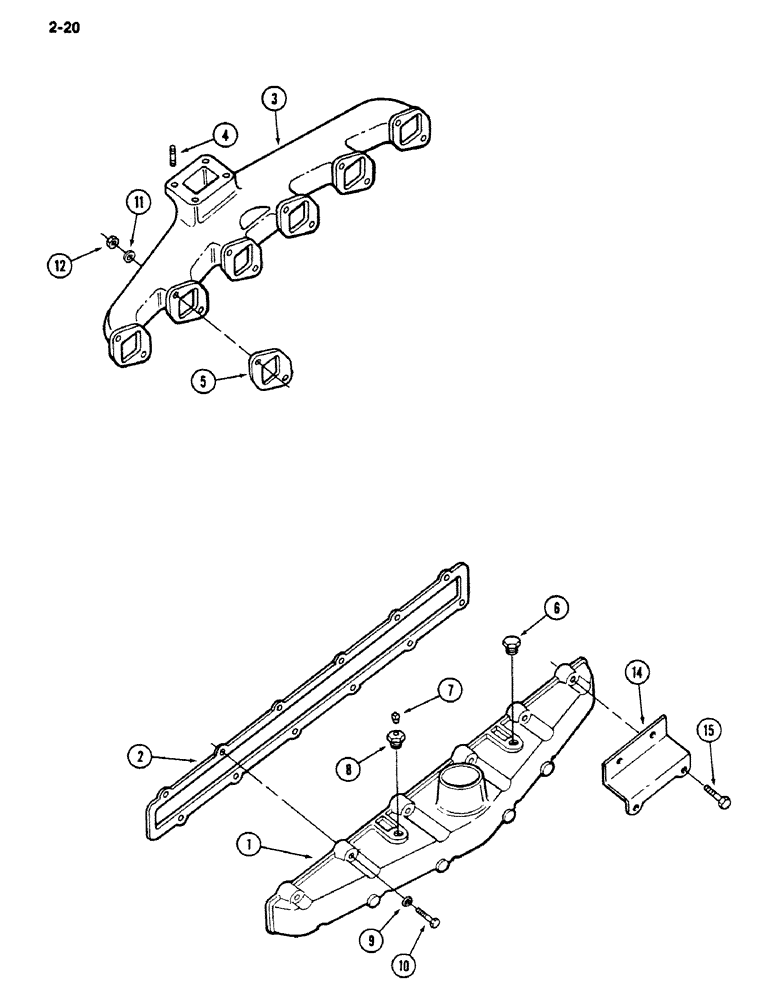

Запчасти Case IH 1620 (2-020) - INTAKE AND EXHAUST MANIFOLD, D358 DIESEL ENGINE (01) - ENGINE

1

3055275R4

MANIFOLD

- intake

1шт.

2

3055399R1

MANIFOLD GASKET

- intake manifold

1шт.

3

3055944R12

MANIFOLD

ASSEMBLY - exhaust, Includes: Ref. 4

1шт.

4

3055663R1

STUD

- exhaust manifold

4шт.

5

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.

6

3136229R1

PLUG,7/8" - 14

- closing

1шт.

7

221-849

PLUG,Hex Soc, 1/8"-27

- square head pipe, 1/8 inch

1шт.

8

3146564R1

UNION

CONNECTOR - intake manifold

1шт.

9

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Truncated cone M8.2 ID x 16 OD x .9 Thk

12шт.

10

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch

12шт.

11

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

12шт.

12

129-123

NUT,3/8"-24, G5

12шт.

14

3218749R1

BRACKET

SUPPORT - solenoid, ether

1шт.

15

113-182

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

- hex, 5/16 NC x 1-5/8 inch

2шт.
