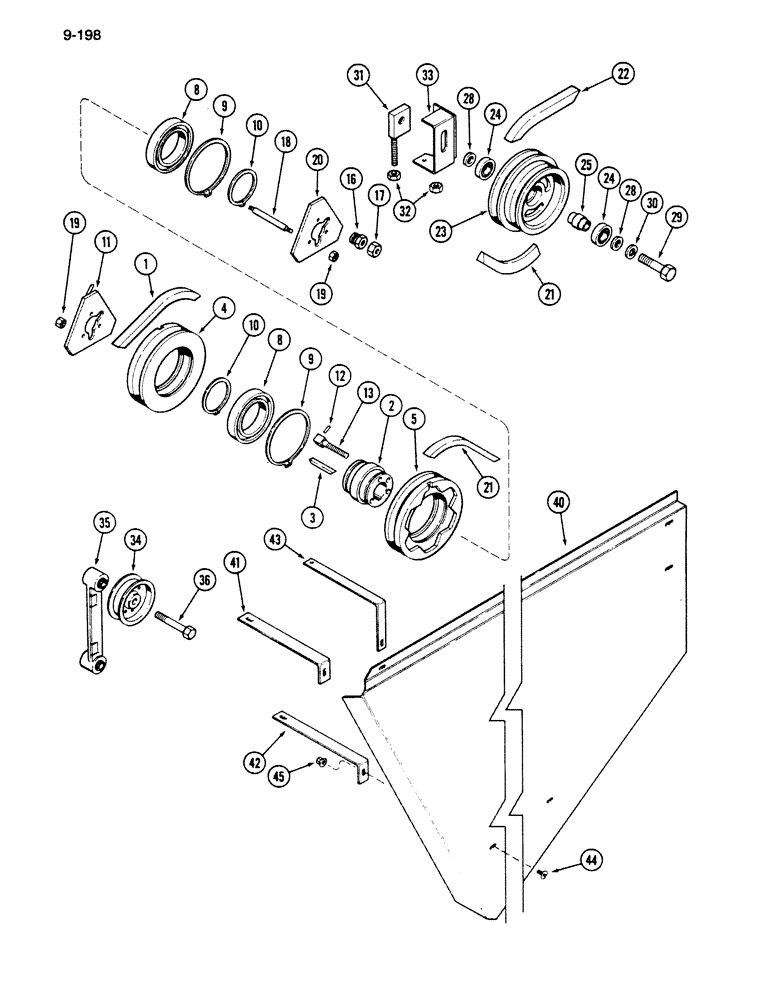

Запчасти Case IH 1620 (9-198) - QUICK CHANGE CHOPPER DRIVE, NOT NORTH AMERICA (19) - STRAW SPREADER & CHOPPER

1

1325050C1

V-BELT,22.33 mm W x 3924.69 mm L

V-BELT, , Drive, Chopper 22.33 mm W x 3924.69 mm L

1шт.

2

1315243C1

HUB

- driven

1шт.

3

Q3954

KEY,Gib, 3/8" Sq x 3 1/4"

- square gib head tapered, 3/8 x 3-1/4 inch

1шт.

4

1315240C1

PULLEY

- high speed, driven

1шт.

5

1315239C1

PULLEY

- slow speed, driven

1шт.

8

1315225C1

BALL BEARING,80 mm ID x 125 mm OD x 22 mm

ASSEMBLY - pulley

2шт.

9

933752R1

SNAP RING,M125, Int

RING - snap, 131 mm

2шт.

10

933847R1

SNAP RING,M80, Ext

RING - snap, 74 mm

2шт.

11

1325052C1

LARGE PLATE

PLATE - drive

1шт.

12

30404R1

LOCK PIN,M6 x 20, Slotted

PIN - split spirol, 6 x 20 mm

1шт.

13

1315241C1

STUD

- shift, pulley

1шт.

16

1325054C1

NUT

- hex, special

1шт.

17

829-1412

NUT,M12, Cl 10.9

1шт.

18

1315385C1

STUD

- slider, pulley

3шт.

19

31083R1

NUT,M10 x 1.5, Flg, Cl 10

- hex flange, M10 ( replaced 31093R1 )

6шт.

20

1315238C1

LARGE PLATE

PLATE - drive

1шт.

21

1315244C1

V-BELT,1766.82 mm L

V-BELT, , Drive 1766.82 mm L

1шт.

22

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Drive, Right side 0.879" W x 255.99" L

1шт.

23

1315242C1

PULLEY

- driver, slow speed

1шт.

24

769648R91

BALL BEARING,20 mm ID x 47 mm OD x 12 mm

ASSEMBLY - pulley

2шт.

25

1325055C1

SPACER

- bearing

1шт.

28

933400R1

WASHER

- flat, 20 x 32 x 5 mm

2шт.

29

30095R1

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, M20 x 75 mm

1шт.

30

892-1120

LOCK WASHER,M20

WASHER - lock, 20 mm

1шт.

31

1325056C1

BOLT,M12 x 135mm, W/ Spcl Nut

BOLT - adjusting

1шт.

32

829-1412

NUT,M12, Cl 10.9

2шт.

33

1315399C1

SUPPORT ASSY.

SUPPORT - drive, slow

1шт.

34

662958R91

PULLEY

- idler, spreader

1шт.

35

175131C91

ARM ASSY.

ARM - hanger, rear, see Figure 9-104

1шт.

36

25510R1

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 8

- hex, 5/8 NC x 3-3/4 inch

1шт.

40

1311175C2

SHIELD

- drive

1шт.

41

1311178C1

BRACKET

- front

1шт.

42

1311179C1

BRACKET

- rear

1шт.

43

1322134C1

BRACKET

- upper

1шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

5шт.

45

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.
