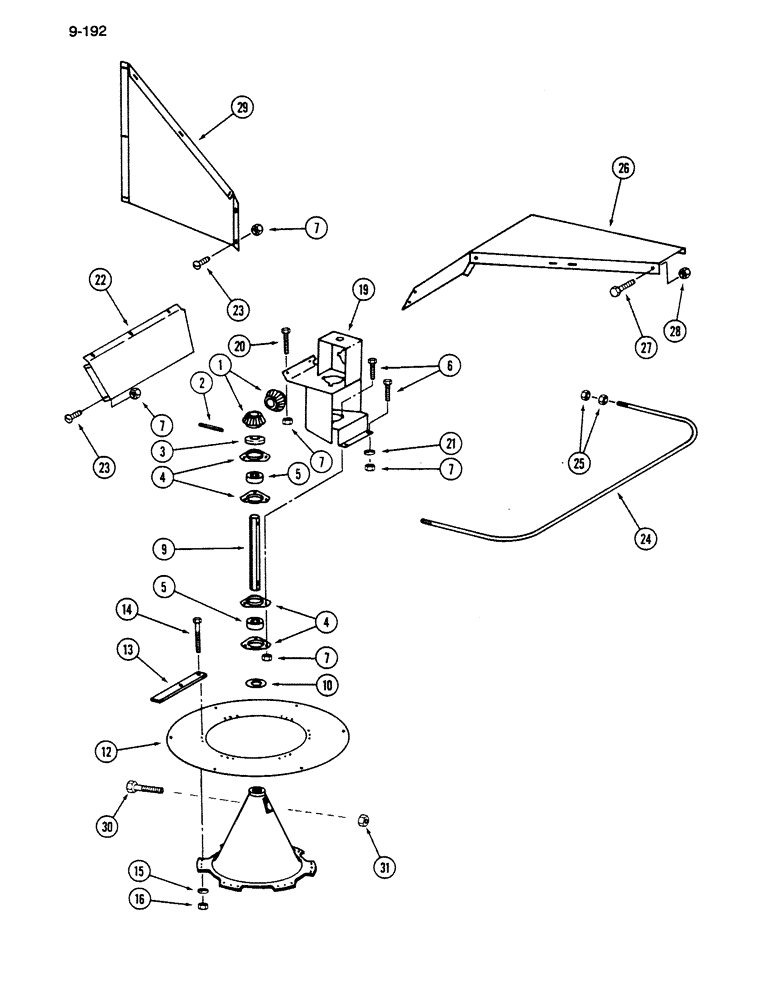

Запчасти Case IH 1620 (9-192) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

185410C1

GEAR-SET

GEAR SET - drive (Set of 2 gears)

1шт.

2

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

3

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

3шт.

4

571424R1

FLANGE

- bearing

8шт.

5

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - shaft

4шт.

6

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

14шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

25шт.

9

192240C1

SHAFT

- spreader

1шт.

10

183041C1

WASHER

WASHER - cone

1шт.

11

188218C2

SUPPORT ASSY.

CONE - spreader

1шт.

12

192254C1

DISC

- spreader

1шт.

13

1303172C1

BAT

- spreader

1шт.

14

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

12шт.

15

25708R1

WASHER

- flat, hardened

12шт.

16

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex special, 5/16 inch NC

12шт.

19

1317897C1

SUPPORT

BRACKET - drive

1шт.

20

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex, 5/16 NC x 1-1/4 inch

2шт.

21

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

22

186449C2

SHIELD

- dust

1шт.

23

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

9шт.

24

181207C1

ROD

- shield

1шт.

25

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, 1/2 inch NC

4шт.

26

195246C4

SHIELD

- spreader

1шт.

27

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex, 3/8 NC x 3/4 inch

6шт.

28

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

6шт.

29

1303119C1

SUPPORT

DEFLECTOR - discharge

1шт.

30

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.
